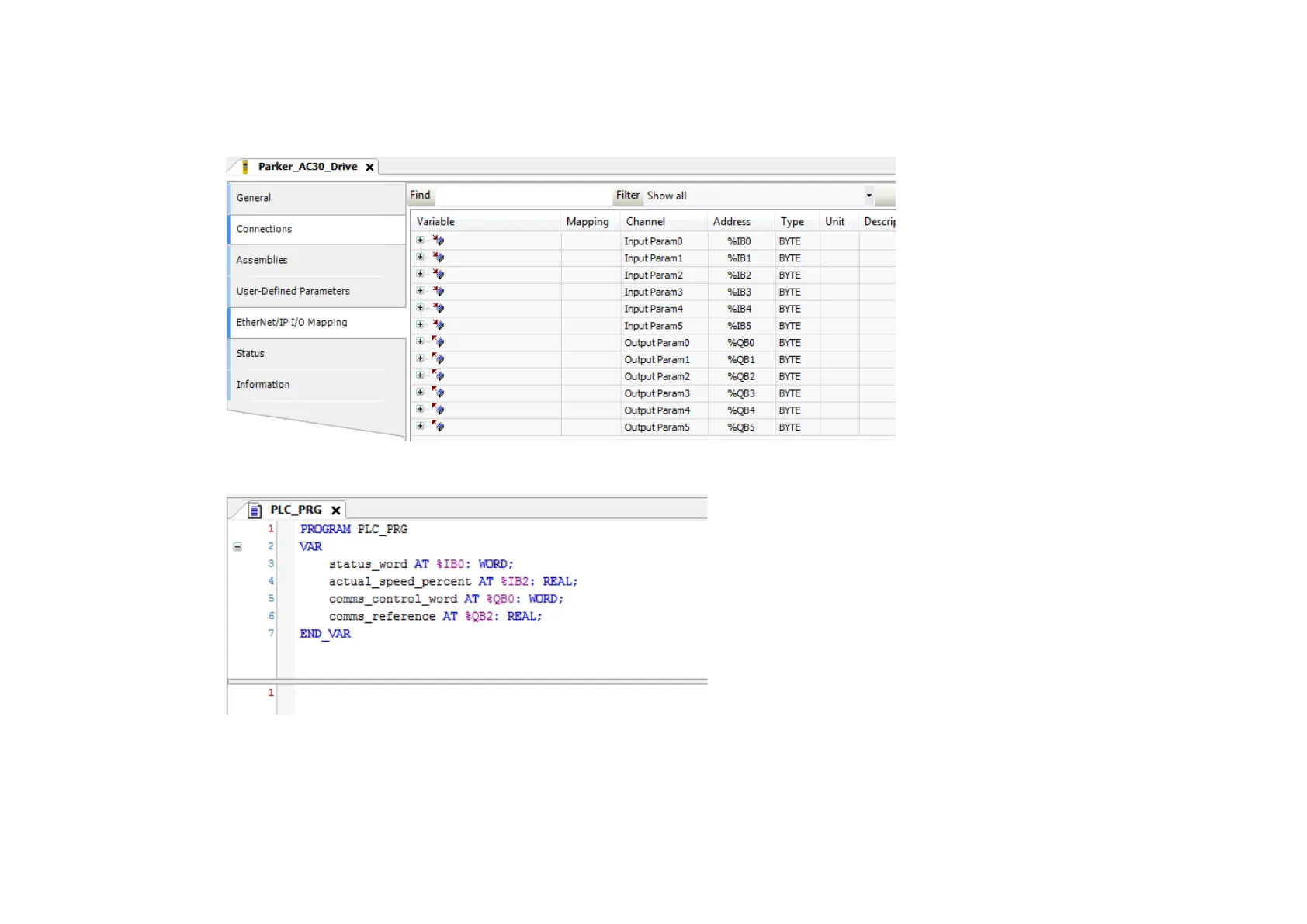

8. Under the EtherNet/IP IO Mapping tab the mappings can be seen.
%IB0 will be the first byte of the Status Word and %IB2 will be the first byte of the Actual Speed Percent
%QB0 will be the first byte of the Comms Control Word and %QB2 will be the first byte of the Comms Reference
9. In the application program the IO mappings can be accessed as variables as shown in this example.
