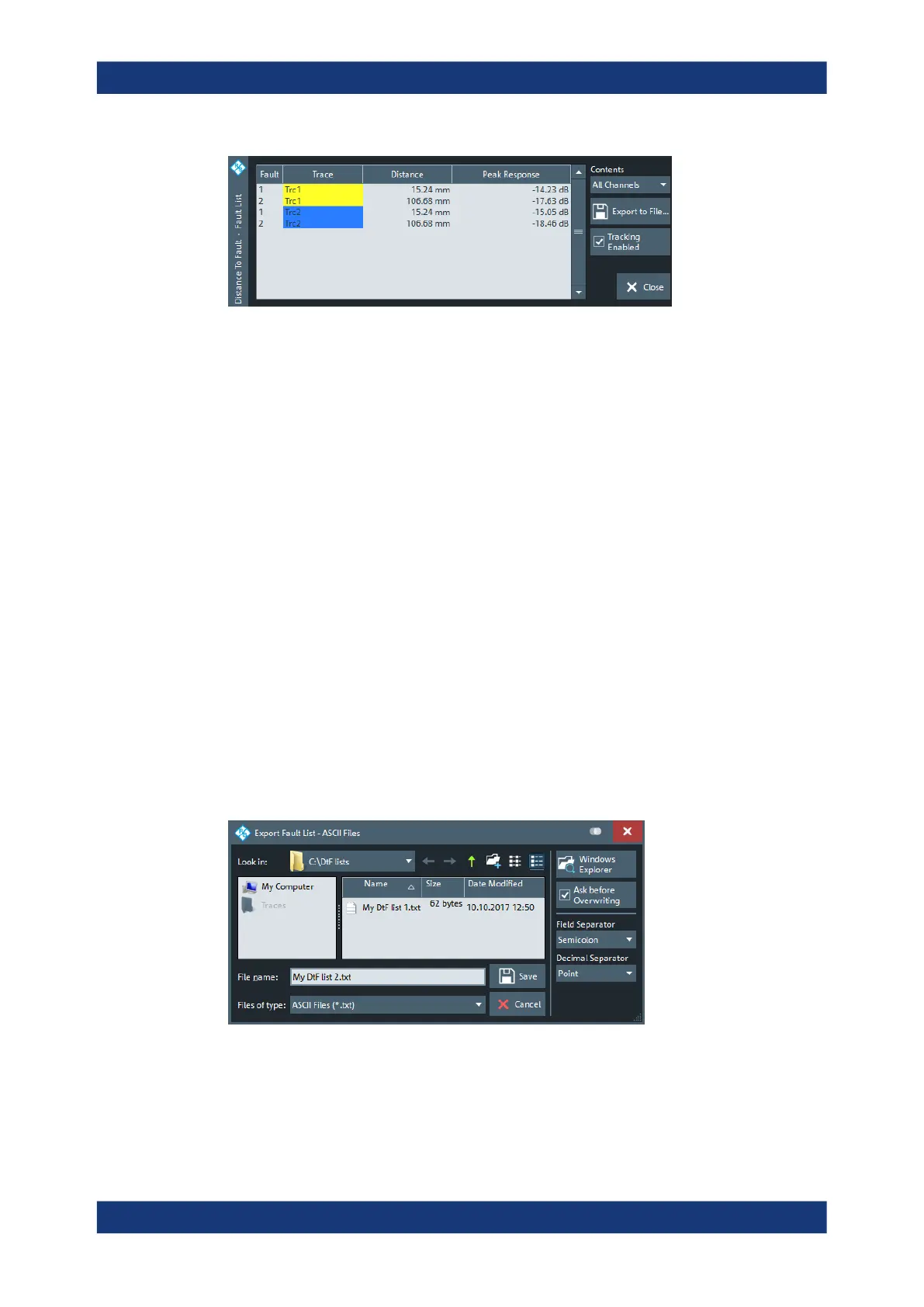

Figure 10-5: Fault List Dock Widget
Fault Table
The displays a list of all peaks that violate the active Fault Limit. Unless tracking is dis-
abled (see "Tracking Enabled" on page 376), the table is updated with every sweep.
Remote command:
CALCulate<Chn>:TRANsform:DTFault:PEAK:COUNt?
CALCulate<Chn>:TRANsform:DTFault:PEAK:DATA<FaultNo>
Contents
Allows you to filter the Fault Table:
●
"All Channels" (default)
The table displays the faults of all Distance to Fault traces in the current channel
setup.
●
"Active Channel"
The table displays the faults of all Distance to Fault traces in the active channel (if
any).
●
"Active Trace"
The table displays the faults of the active trace (in case it is a Distance to Fault
trace) .
Export to File... ← Contents
Opens a dialog that allows to export the (filtered) content of the fault list to an ASCII file
with configurable "Field Separator" and "Decimal Separator".
This CSV type file contains one line (terminated by CR+LF) per fault. With ";" as "Field
Separator" and "." as "Decimal Separator", the fault list of Figure 10-5 is exported to
1; Trc1; 457.2 mm; -8.56 dB
2; Trc1; 1.539 m; -9.24 dB
Trace softtool
