R&S ZNL Series User Manual

VNA GUI reference
R&S
®
ZNL/ZNLE
430User Manual 1178.5966.02 ─ 20

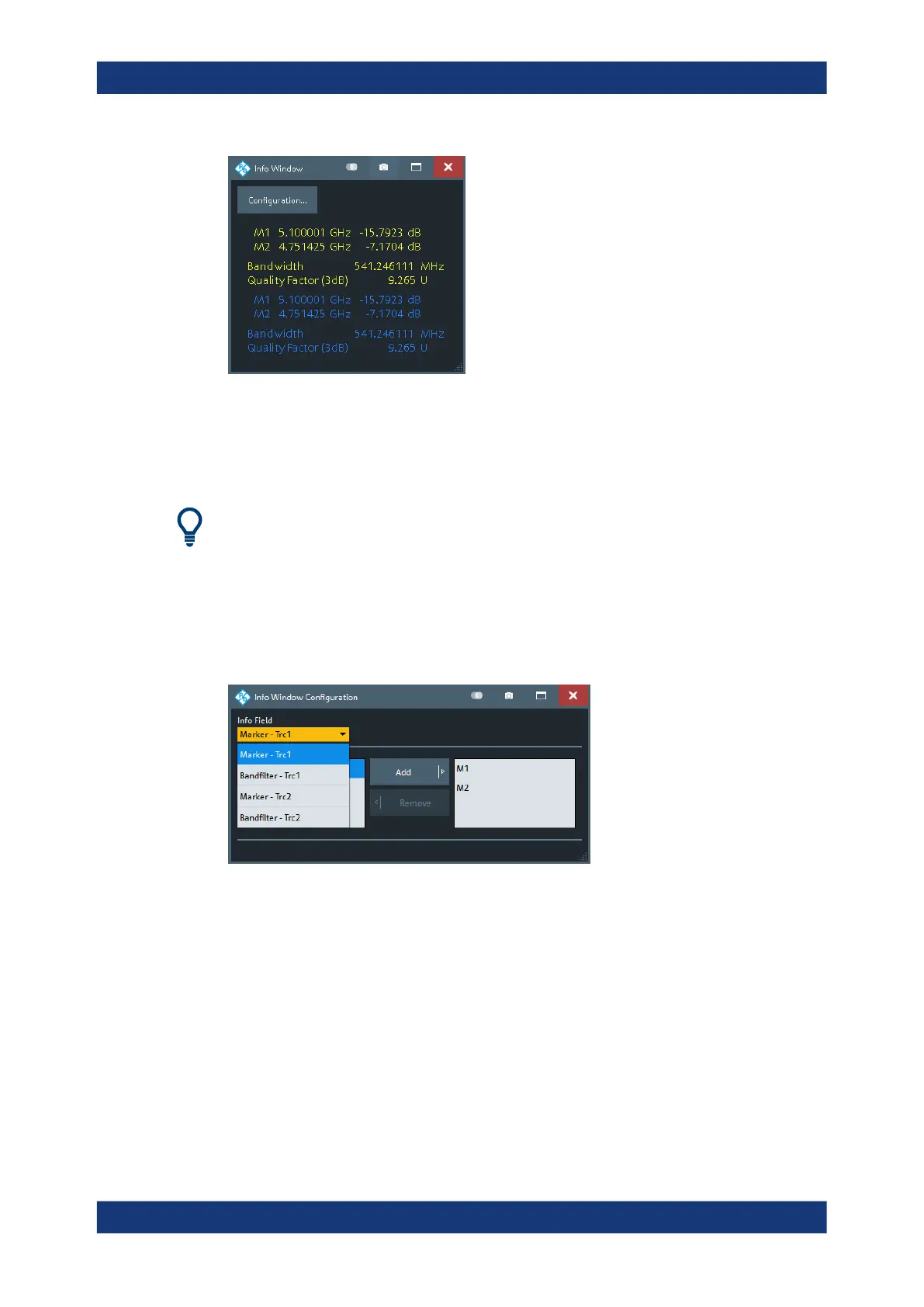

Use the "Configuration..." button to open the Info Window Configuration dialog and
select the information items to be displayed.
To disambiguate the displayed marker info fields, you can assign descriptive names to
the markers (see "Marker Name" on page 452).
If a trace is hidden, then its marker and bandfilter search info is also hidden in the "Info
Window".
Info Window Configuration dialog
The "Info Window Configuration" dialog allows you to select the markers and Display
elements of a VNA diagram results to be displayed in the Info Window.
Access: Info Window > "Configuration..."
Use the "Info Field" combo box to select a marker or bandfilter search info field whose
contents you want to display in parts or in total. It contains all info fields of the current
channel setup that are currently not displayed in the info table (see "Info Table: Show /
Position" on page 429).
Content Selection
The lower part of the "Info Window Configuration" dialog allows you to pick the con-
tents of the selected info field you want to display in the Info Window.
For marker info fields, use the "Add" and "Remove" buttons to show/hide the selected
marker in the "Info Window".
Display Lines softtool
