R&S ZNL Series User Manual

VNA GUI reference
R&S
®
ZNL/ZNLE
528User Manual 1178.5966.02 ─ 20
When "Fixture Simulator" is deactivated:
●
All balanced ports are resolved to single ended ports
●
All port impedances are set to default
●
All de/embeddings are disabled
At the GUI, the "Balanced Ports" dialog and the de/embedding tabs and dock widgets
are disabled. Related remote commands generate an error.
When "Fixture Simulator" is reactivated, the situation before the deactivation is
restored.
Note: The "Offset" and "One Way Loss" settings are not affected by the "Fixture Simu-
lator" switch. Use the "All Compensation Off"/"All Compensation On" functions of the
"Fixture Compensation" dialog to de/activate these compensations as well (see Chap-
ter 10.14.2.2, "Fixture Compensation dialog", on page 545).
Remote command:
CALCulate<Ch>:TRANsform:VNETworks:FSIMulator[:STATe]

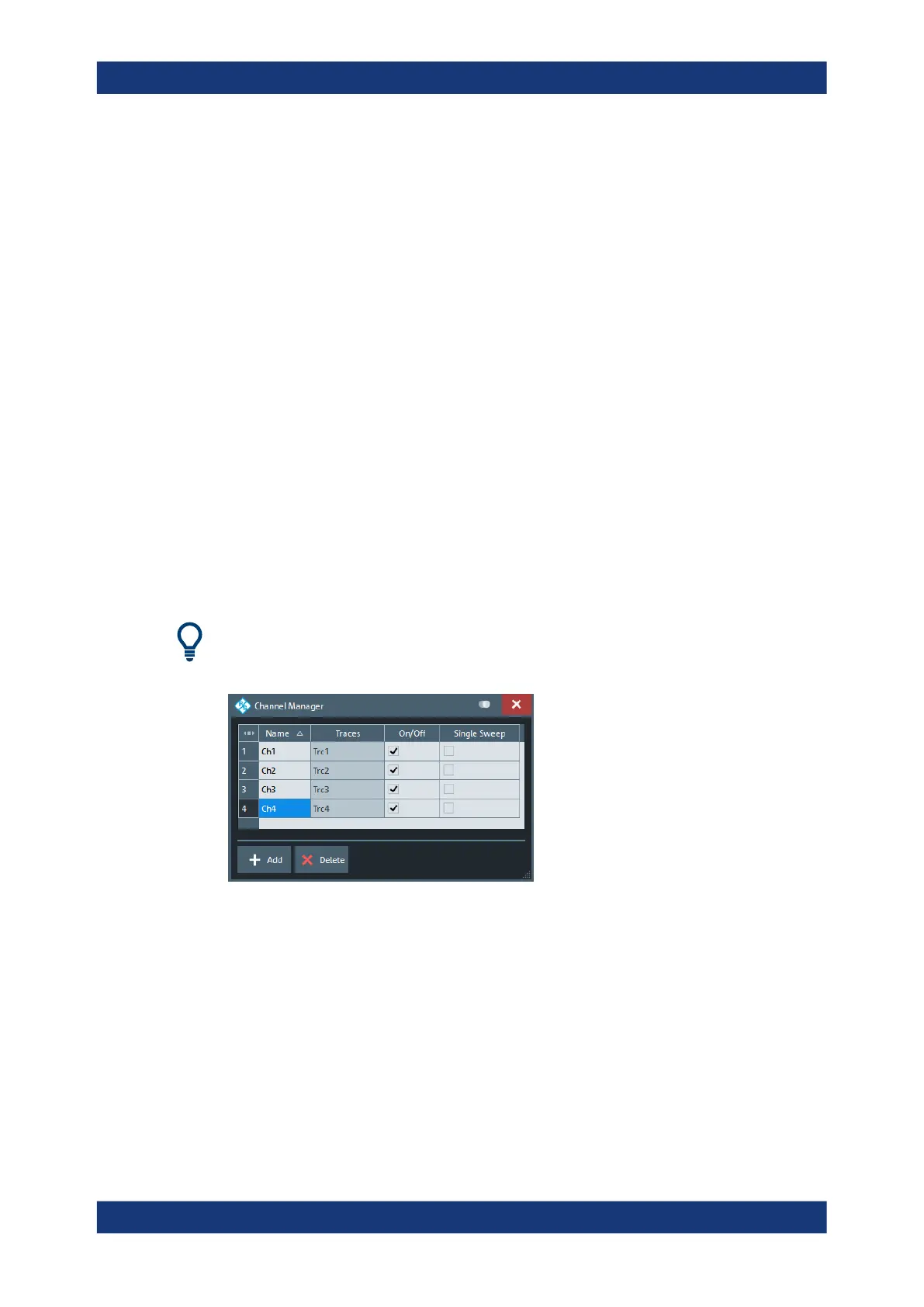

10.13.1.2 Channel Manager dialog
The "Channel Manager" dialog allows you to rename channels and to change their
measurement state and sweep mode.
Access: [Channel] > "Channels" > "Channel Manager..."
Background information
Refer to Chapter 9.1.3.3, "Active and inactive traces and channels", on page 187.
Channel table
The rows and columns of the channel table represent the existing channels (rows)
together with certain editable (white) or non-editable (gray) properties (columns).
●
"Name" indicates the name of the related channel.
●
"Traces" indicates the names of all traces assigned to the related channel.
●
"On/Off" toggles the measurement state of the related channel.
●
"Single Sweep" toggles between "Continuous" and "Single" sweep mode (see
"Continuous / Single" on page 343).
Remote command:
CONFigure:CHANnel:CATalog?
CONFigure:CHANnel<Ch>:NAME
Channel softtool
