VNA GUI reference

R&S

ZNL/ZNLE

538User Manual 1178.5966.02 ─ 20

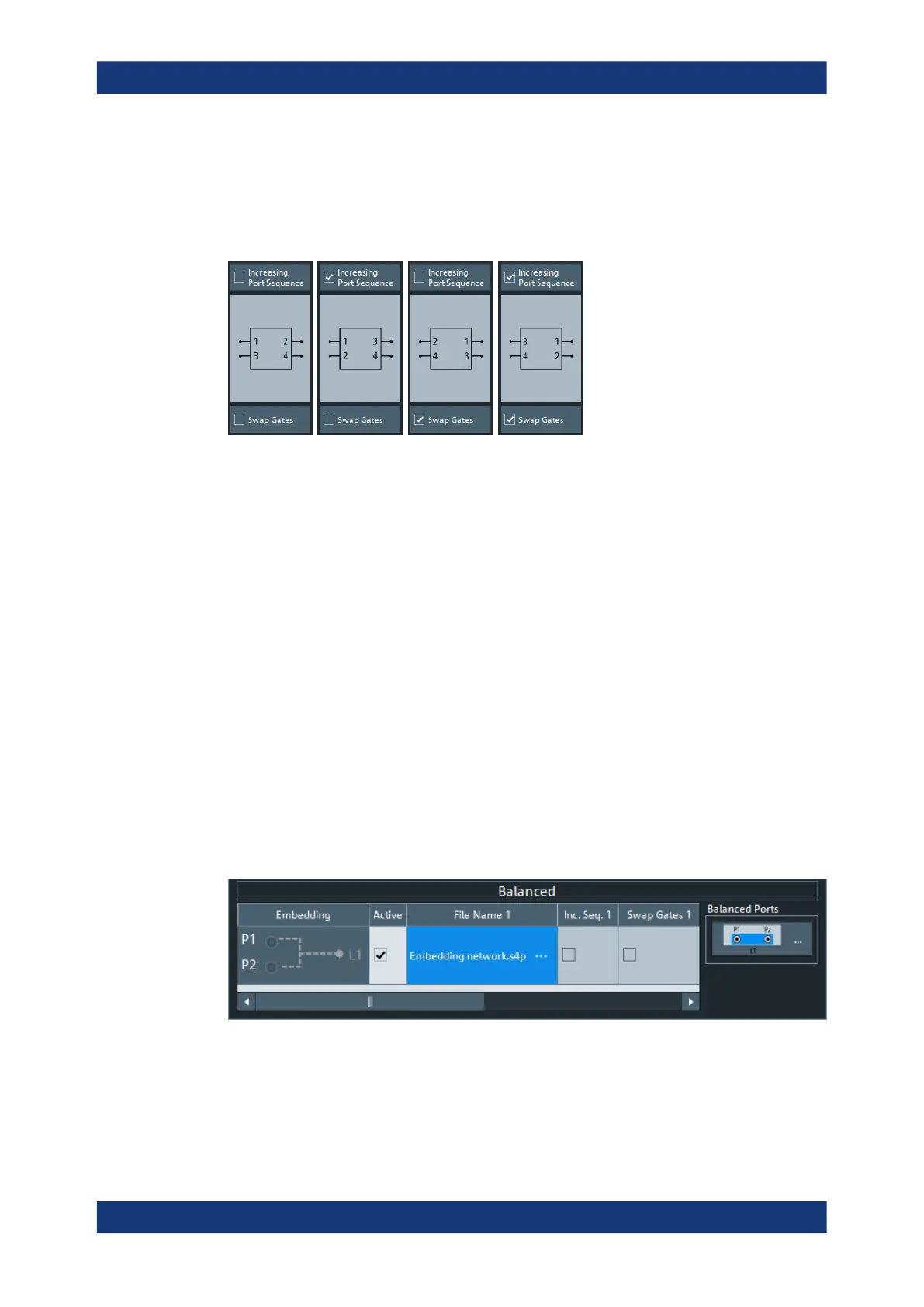

When loading a touchstone file, the analyzer by default assumes odd ports left (VNA

side), even ports right (DUT side). However, it is also possible to instruct the analyzer

to assume an "Increasing Port Sequence", i.e. that the low port numbers are on the

VNA side. Furthermore it is possible to "Swap Gates", i.e. to instruct the analyzer to

swap the VNA and DUT side.

Note: The loaded file is stored in the active channel setup. Persisted channel setups

contain the full (de-)embedding data so that they can be transferred to other instru-

ments.

Remote command:

MMEMory:LOAD:VNETworks<Ch>:PPAir:DEEMbedding<ListId>

MMEMory:LOAD:VNETworks<Ch>:PPAir:EMBedding<ListId>

10.14.1.5 Balanced panel

This panel allows you to activate or deactivate deembedding/embedding of balanced

ports.

Access: Overview panel > "Balanced"

If the selected Balanced tab is defined using a touchstone file, this file can be selected

from the dock widget ("...").

For network types that are defined using one or more touchstone files, the required

files can also be selected from here ("...").

If necessary, use the button on the right-hand side to open the Balanced Ports dialog

and change the balanced port configuration.

This panel can also be activated by selecting the Balanced tab. Refer to its description

for background information, parameters and additional remote commands.

Offset Embed softtool
