R&S ZNL Series User Manual

VNA GUI reference
R&S
®
ZNL/ZNLE
555User Manual 1178.5966.02 ─ 20
If the "Fixture Simulator" is disabled for the related channel (see "Fixture Simulator"
on page 527), this tab is inactive, i.e. all controls except the "Overview" button are
grayed out.
Overview
See "Overview" on page 543.
Type
Switches between "Deembedding" and "Embedding" network definition.
Logical Port
Logical analyzer port, as defined in the "Balanced Ports" configuration. The transfor-
mation networks are defined such that the physical analyzer test ports are connected
to the left of the circuit; the DUT ports are on the right side.
Remote command:
The <LogPt> numeric suffix in the embedding/deembedding commands identifies the
logical port; see e.g. CALCulate<Ch>:TRANsform:VNETworks:BALanced:
EMBedding<LogPt>[:STATe].
All Deembedding Activated
Deactivates or activates all deembeddings (single-ended, balanced, port set, ground
loop) for the active channel, if any.
This control is only visible if Type = "Deembedding".
Remote command:
n.a.
Network
The graphical list contains all available 4-port networks (see Chapter 9.6.2.4, "Circuit
models for 4-port networks", on page 286).

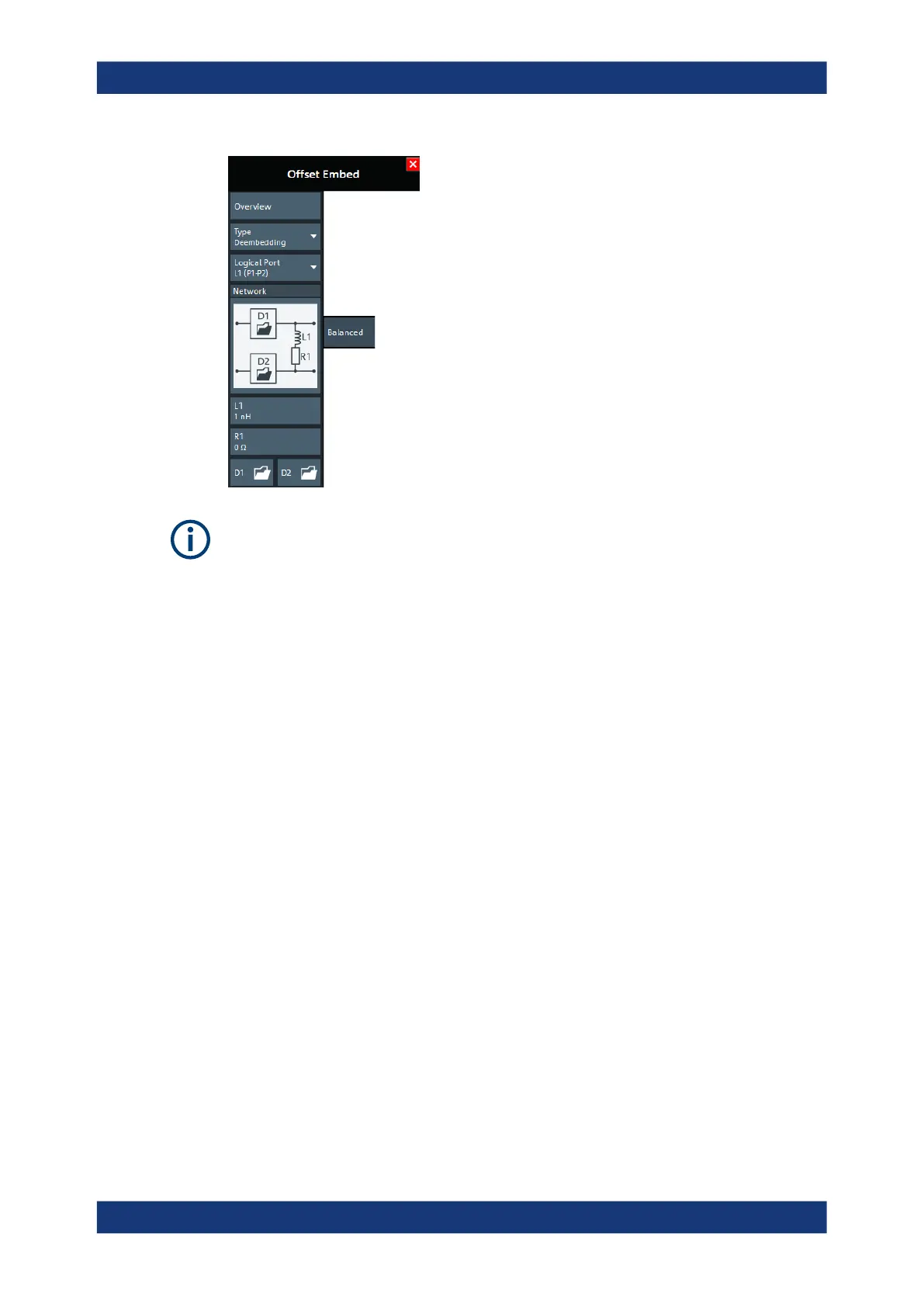

Offset Embed softtool
