If not specified otherwise, the pulse generator settings are channel-specific.
A measurement example for pulse generators and pulsed measurements is reported in the Getting
Started guide for the extension unit R&S ZVAX24, to be found on the R&S ZVA/B/T documentation CD-
ROM.
To perform measurements on pulsed RF signals controlled by the pulse generator, the Pulse Gen
trigger must be used. The trigger settings also control which of the trigger signals provides the trigger
event.
[SENSe<Ch>:]PULSe:GENerator<gen_no>[:STATe]
Define Pulse Generator
Defines the properties of the pulse generator signals.

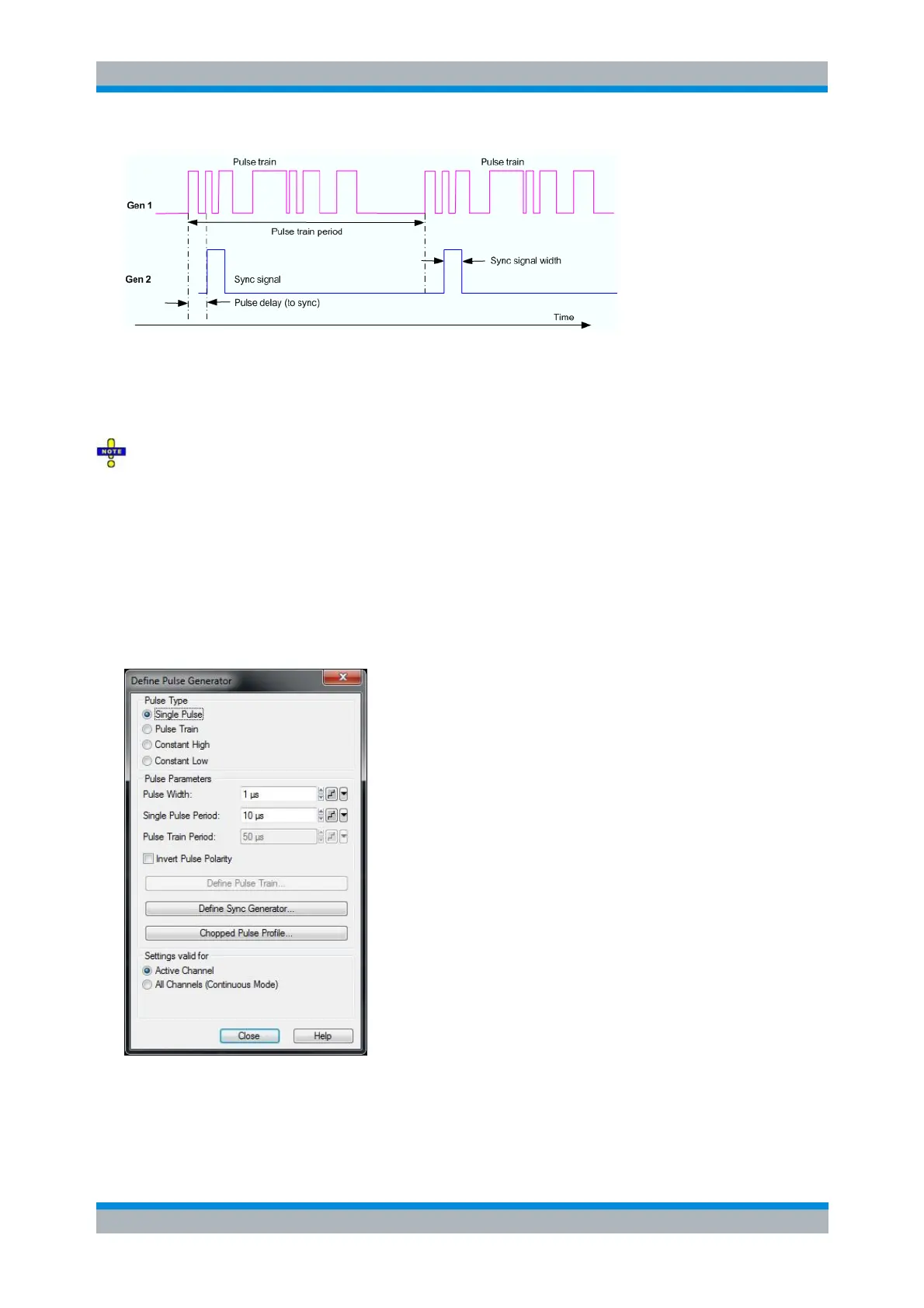

Pulse Type selects the shape of the pulse modulator (Gen 1) signal. For each pulse type, a
subset of Pulse Parameters is available. A Single Pulse is a rectangular pulse with definite Pulse
Width that is repeated after the Single Pulse Period. A Pulse Train is a series of single pulses; see
Pulse Generator Signals. Constant signals (Constant High and Constant Low) need no further
To Next Page
