Channel Menu
Operating Manual 1145.1084.12 – 30 330

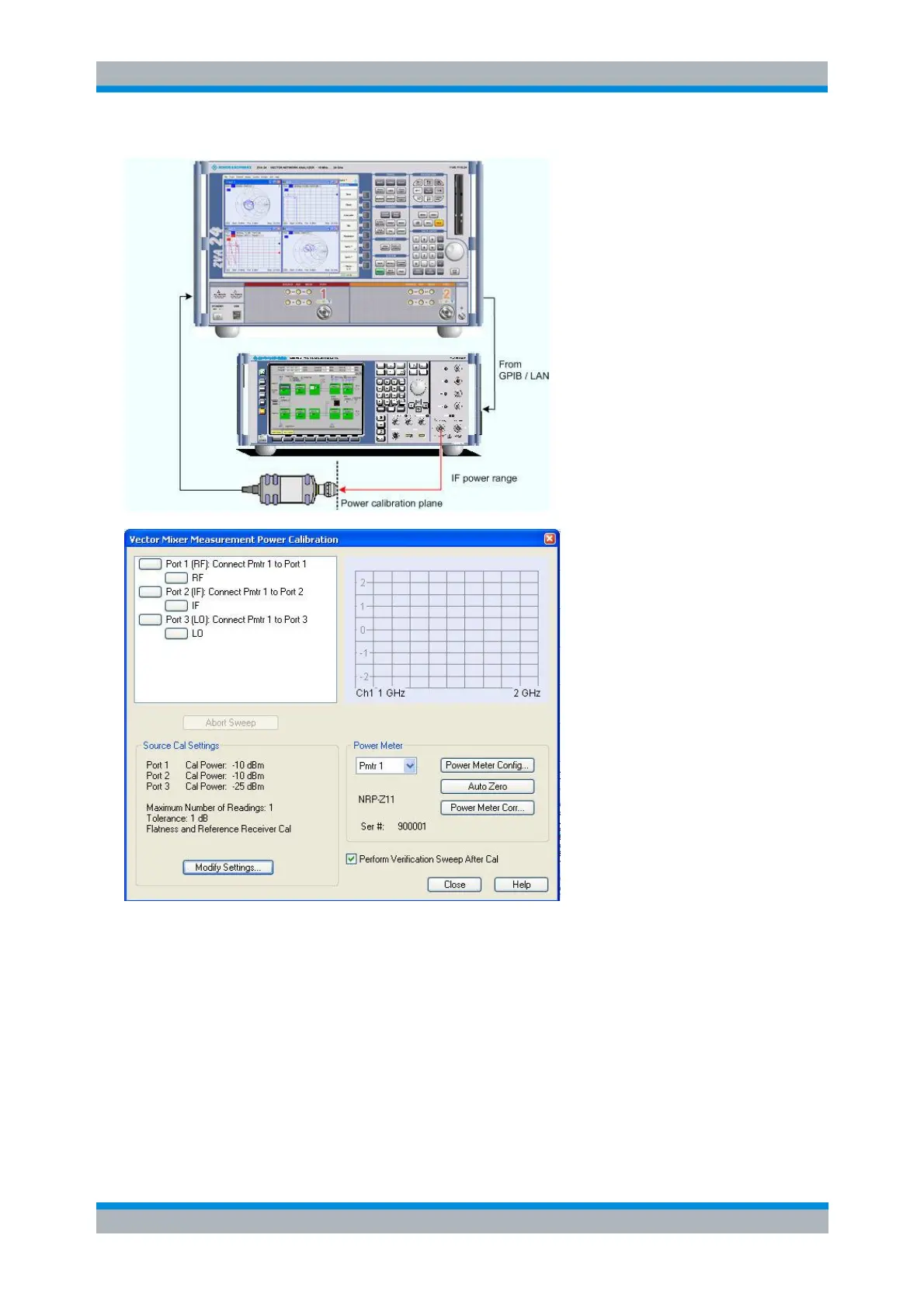

 A click in one of the boxes in the list of calibrations in the upper left part of the dialog starts the
calibration sweeps for the RF source, IF source, and the LO source, respectively. The measured
power is shown in the diagram to the right and the sweep progress in the message field below.
If a calibration cannot be performed using the currently selected settings, the respective box is
marked with an exclamation mark and an error description is shown in the lower left part of the
dialog.
 Abort Sweep stops the current sweep, e.g. in order to change the sweep settings.
 The calibration sweeps are performed according to the settings shown in the Source Cal Settings
panel below the list of calibrations. Modify Settings opens the Modify Source Power Cal Settings
dialog to modify the essential settings of the next calibration sweep.
 Power Meter selects an external power meter that is used to measure the exact source power at
