Channel Menu
Operating Manual 1145.1084.12 – 30 378

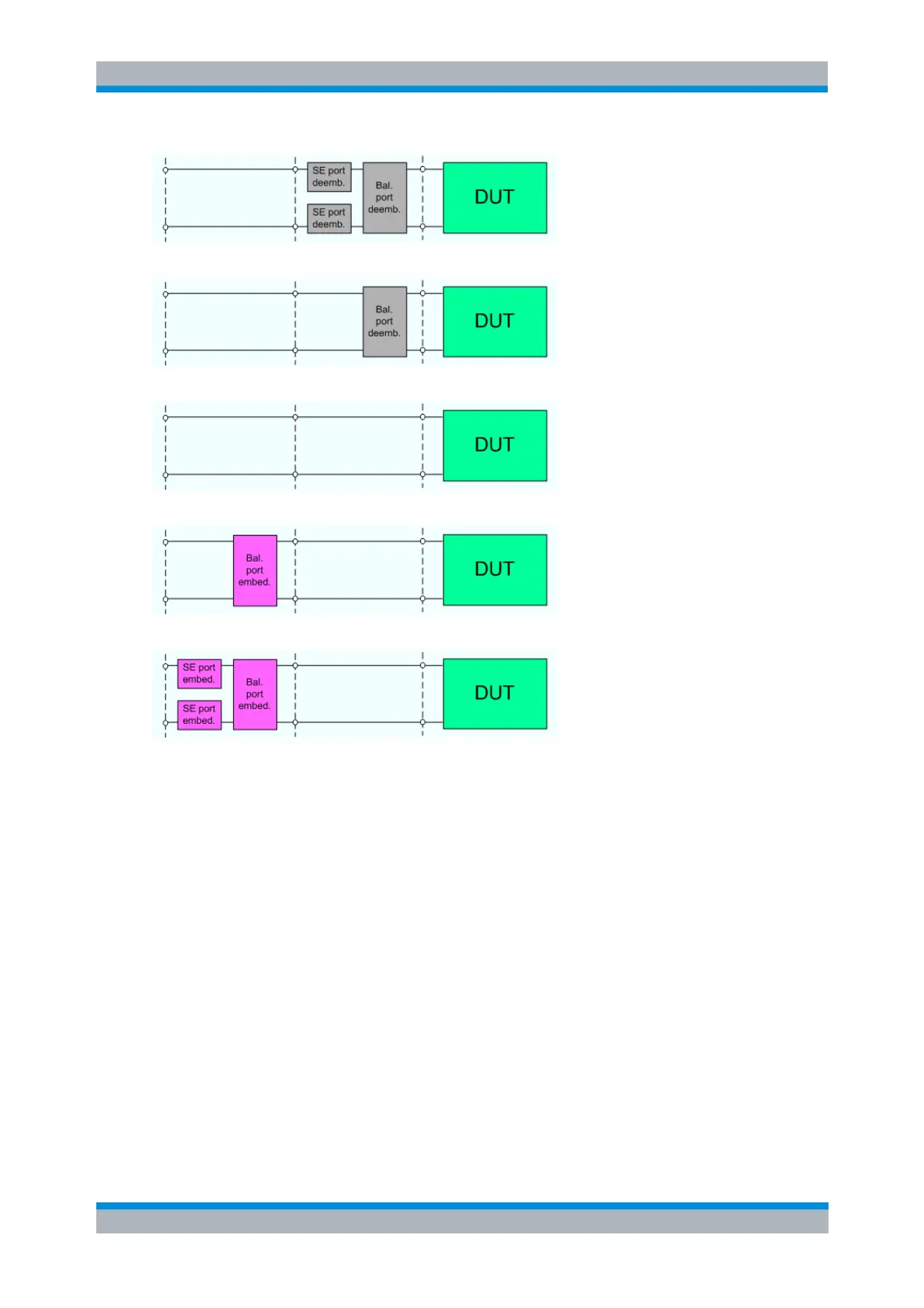

2. Deembedding at single ended port
3. Deembedding at balanced port
4. Embedding at balanced port
5. Embedding at single ended port
Reference Impedances...
Changes the reference impedances of the analyzer ports. This is often referred to as renormalization of
port impedances. Renormalization means that the measurement results measured at 50 Ω (75 Ω) are
converted into results at arbitrary port impedances.
 Renormalization of the physical port impedances affects e.g. S-parameters and wave quantities in
Power representation.
 Renormalization of the balanced port impedances affects all measured quantities (Trace –
Measure) that the analyzer provides for balanced ports.
The default reference impedance of a physical port is equal to the reference impedance of the connector
type assigned to the port (50 Ω or 75 Ω). It can be defined as a complex value.
