 Calibration Kit R&S ZV-WR12 is suited for the frequency converter R&S ZVA-Z90E (frequency
range: 60 GHz to 90 GHz)
 Calibration Kit R&S ZV-WR15 is suited for the frequency converter R&S ZVA-Z75 (frequency
range: 50 GHz to 75 GHz)
 Calibration Kit R&S ZV-WR03 is suited for the frequency converter R&S ZVA-Z325 (frequency
range: 220 GHz to 325 GHz)
The following sections describe the standards in the waveguide calibration kits and their use for system
error corrections.
Calibration Kit R&S ZV-WR10
The waveguide calibration kit R&S ZV-WR10 allows to calibrate network analyzers for test setups
involving frequency converters, in particular R&S ZVA-Z110 or R&S ZVA-Z110E.

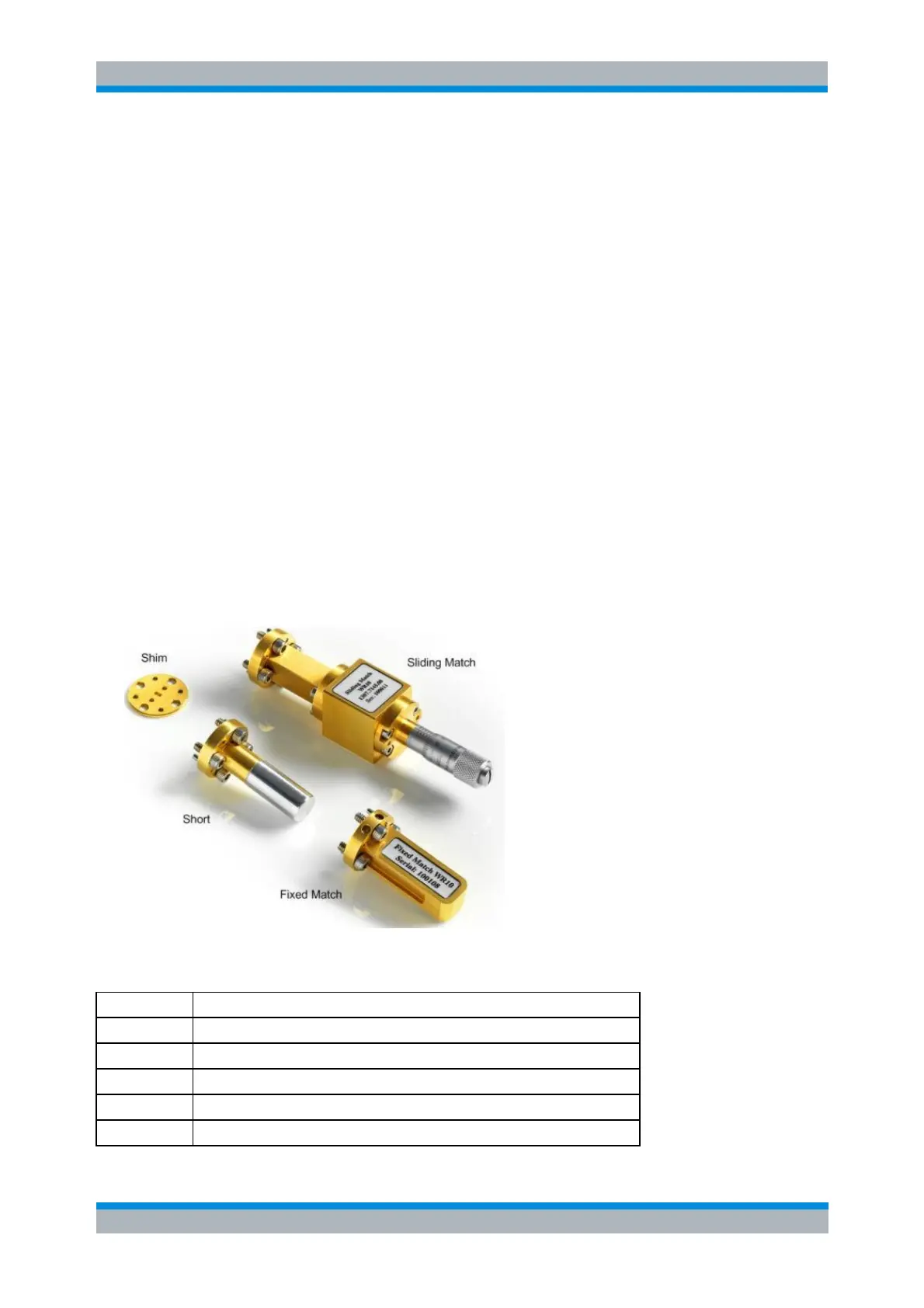

The calibration kit contains the following standards:
 A Short standard which also serves as a Reflect standard
 A (Fixed) Match standard
 A Shim that contains a short transmission line causing a λ/4 phase shift around the center
frequency of the converters operating range and a 180 deg phase shift of the reflecting coefficient.
 A Sliding Match standard (kit 1307.7100.11 only), providing more accurate results than the Fixed
Match standard – at higher test effort.
The following table provides an overview of the available standards for rectangular waveguide calibration
and the technical implementation using the calibration kit.
Standard Type
Technical implementation
Open
Not available in waveguide technology, replaced by "Offset Short"
Short
Contained in the calibration kit
Offset short
Short + Shim, both contained in the calibration kit
Match
Contained in the calibration kit
Sliding match
Contained in the calibration kit 1307.7100.11, 1307.7500.31, and 1307.7700.11
