10.4 TIO (Input/Output-Related 16-Bit Timer)
MULTIJUNCTION TIMERS
32180 Group User’s Manual (Rev.1.0)
<Count clock-dependent delay>
• Because the timer operates synchronously with the count clock, there is a count clock-dependent delay
from when the timer is enabled till when it actually starts operating. In operation mode where the F/F output
is inverted when the timer is enabled, there is also a count clock-dependent delay before the F/F output is
inverted.

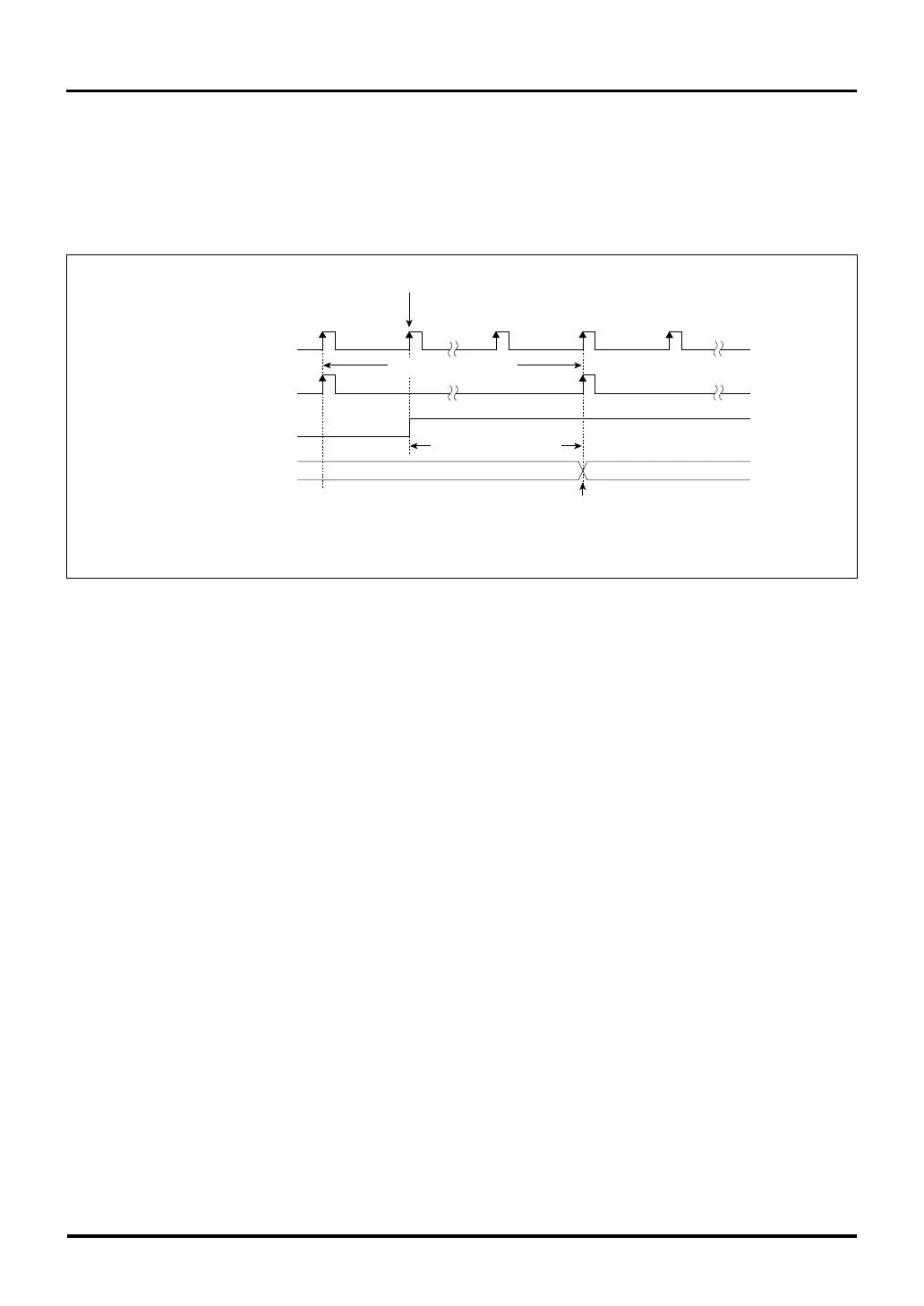

BCLK
Count clock
Enable
F/F operation (Note 1)
Count clock period
Count clock-dependent
delay
Write to the enable bit
Note 1: This applies to the case where F/F output is inverted when the timer is enabled.
Inverted
Figure 10.4.2 Count Clock Dependent Delay
