Renesas M32R/ECU Series User Manual

10
10-173
MULTIJUNCTION TIMERS
10.8 TOU (Output-Related 24-Bit Timer)
32180 Group User’s Manual (Rev.1.0)
If a write cycle to any other area occurs
during this interval, the value that was
set in the PWMOFFnS bits is not reflected.
PWMOFFnSP "1"
PWMOFFnSP "0"
PWMOFFnS
Set value
• Example of correct settings
• Cases where settings have no effect
Because a write cycle to other area exists,
the set value is not reflected.
PWMOFFnSP "1"
Write to other area
PWMOFFnSP "0"
PWMOFFnS Set value
(1)
(2)
PWMOFFnSP "1"
PWMOFFnSP "1"
PWMOFFnS "0"
PWMOFFnS Set value
Because these two consecutive writes comprise
a pair, the next set value is not reflected.

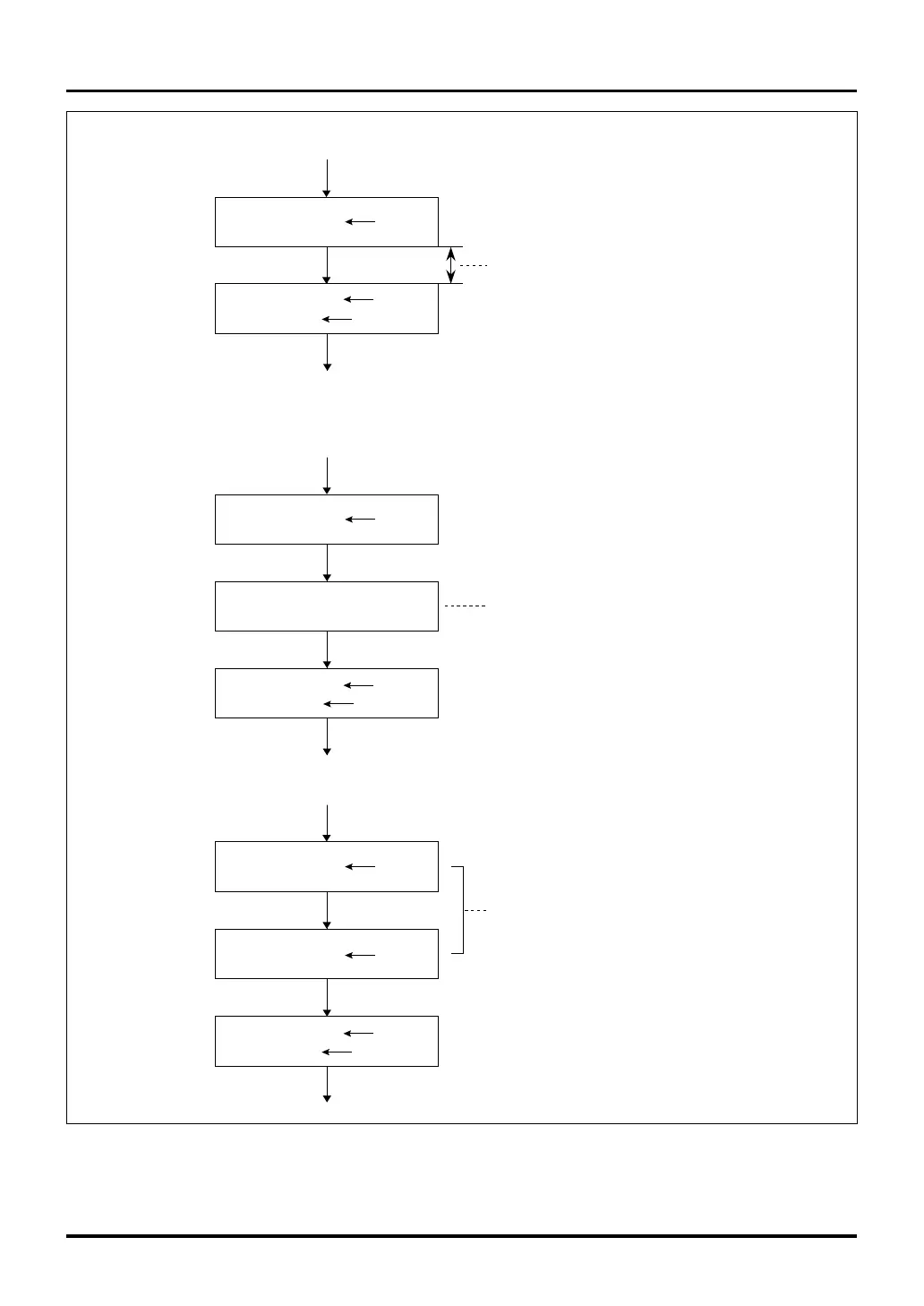

Figure 10.8.7 PWMOFFnS Setting Procedure
