32180 Group User’s Manual (Rev.1.0)

13.2 CAN Module Related Registers

CAN MODULE

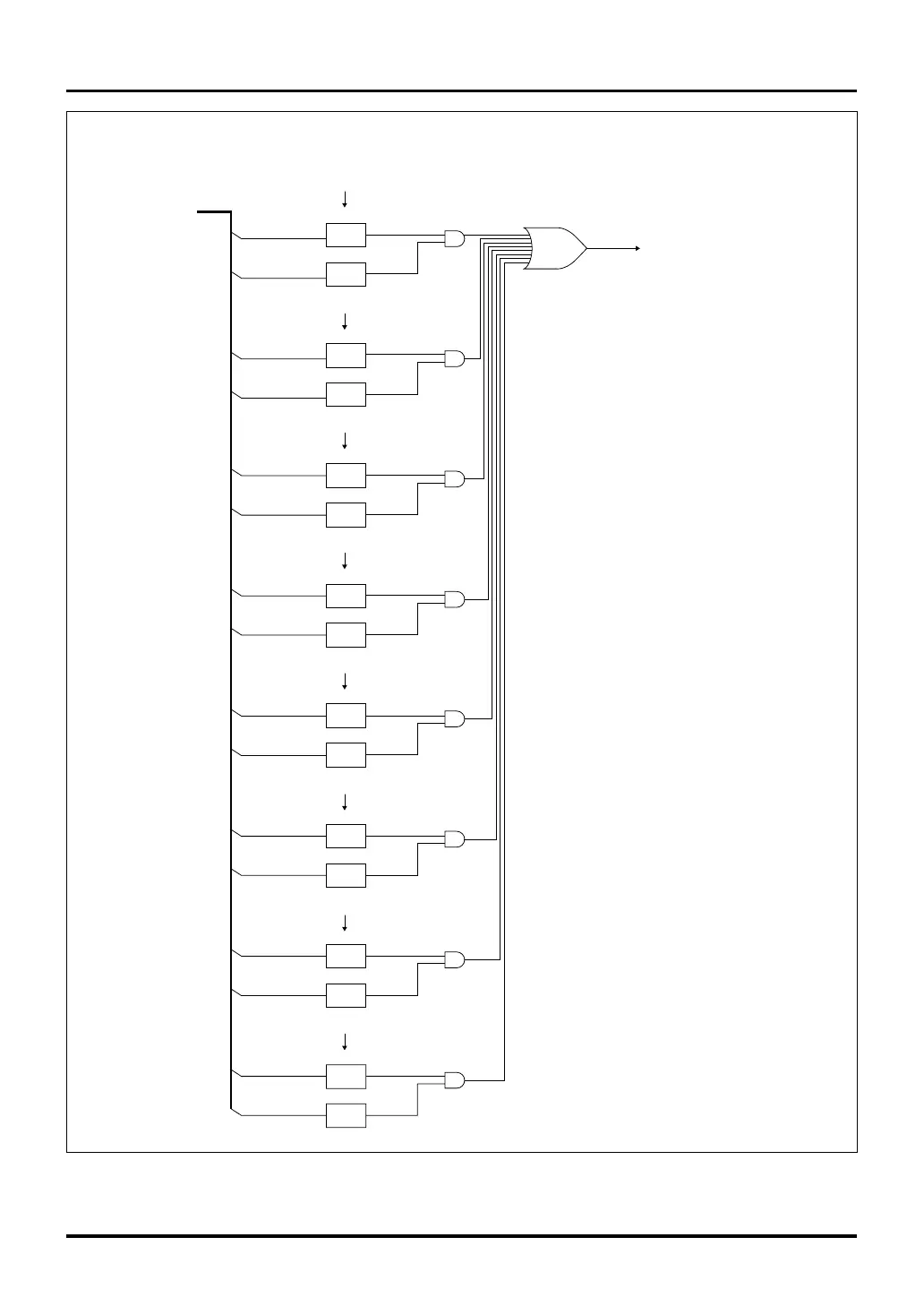

Figure 13.2.7 Block Diagram of the CAN0 Transmit/Receive & Error Interrupt Requests (5/5)

F/F

SSIEN15

SSIST15

SSIEN14

SSIST14

SSIEN13

SSIST13

SSIEN12

SSIST12

F/F

SSIEN11

SSIST11

F/F

SSIEN10

SSIST10

F/F

SSIEN9

SSIST9

F/F

SSIEN8

SSIST8

b15

b14

b13

b12

b11

b10

Data bus

Slot 8 arbitration-lost/transmit error occurs

Slot 9 arbitration-lost/transmit error occurs

Slot 10 arbitration-lost/transmit error occurs

Slot 11 arbitration-lost/transmit error occurs

Slot 12 arbitration-lost/transmit error occurs

Slot 13 arbitration-lost/transmit error occurs

Slot 14 arbitration-lost/transmit error occurs

Slot 15 arbitration-lost/transmit error occurs

To the preceding page

(Level)

8-source inputs

CAN0SSIST (H'0080 1044)

CAN0SSIEN (H'0080 1048)
