32180 Group User’s Manual (Rev.1.0)

CAN MODULE

13.2 CAN Module Related Registers

F/F

SSIEN7

SSIST7

SSIEN6

SSIST6

SSIEN5

SSIST5

SSIEN4

SSIST4

F/F

SSIEN3

SSIST3

F/F

SSIEN2

SSIST2

F/F

SSIEN1

SSIST1

F/F

SSIEN0

SSIST0

Data bus

Slot 0 arbitration-lost/transmit error occurs

Slot 1 arbitration-lost/transmit error occurs

Slot 2 arbitration-lost/transmit error occurs

Slot 3 arbitration-lost/transmit error occurs

Slot 4 arbitration-lost/transmit error occurs

Slot 5 arbitration-lost/transmit error occurs

Slot 6 arbitration-lost/transmit error occurs

Slot 7 arbitration-lost/transmit error occurs

To the preceding page

(Level)

16-source inputs

CAN0SSIST (H'0080 1044)

CAN0SSIEN (H'0080 1048)

To the remaining 8-source inputs in the next page

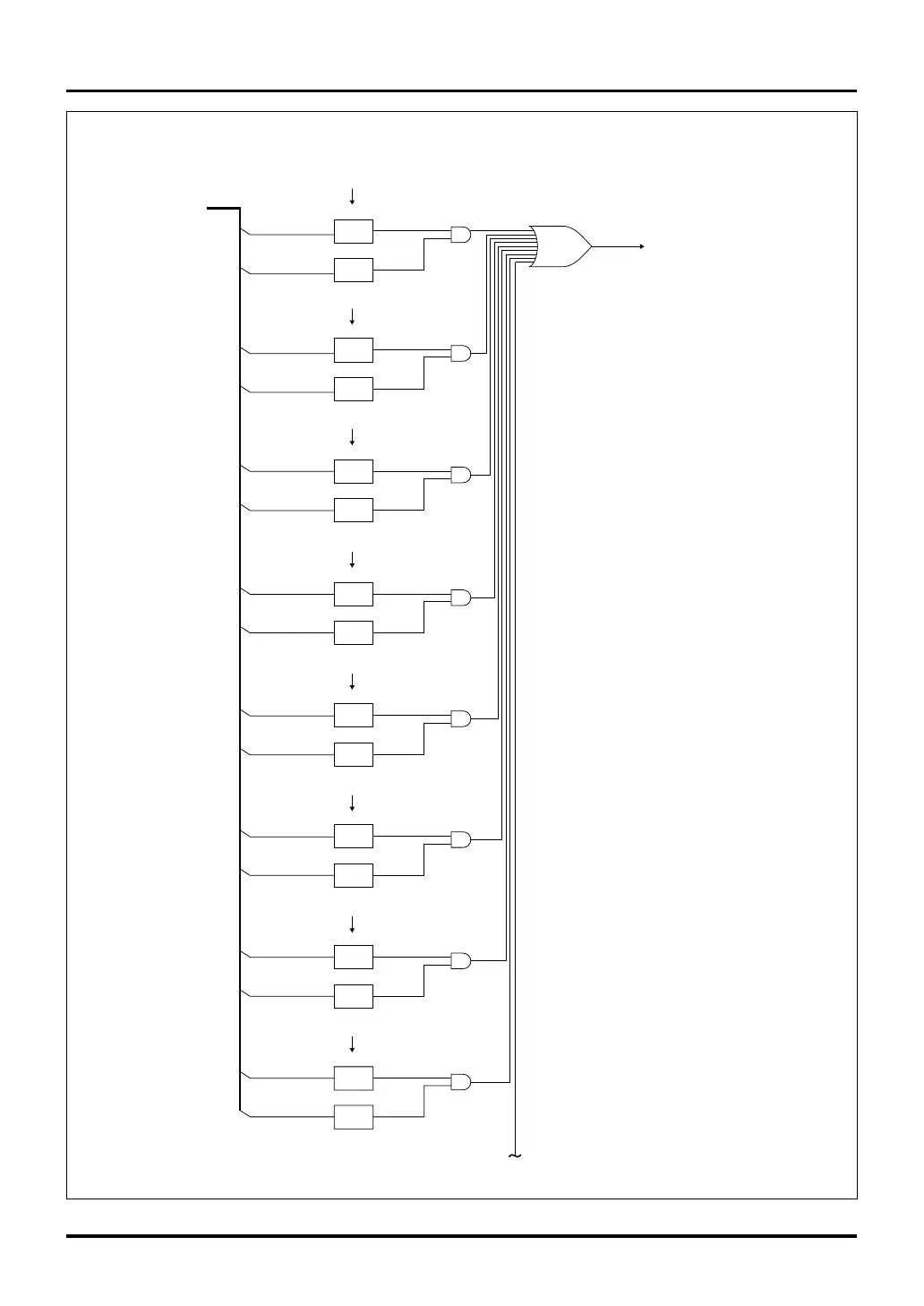

Figure 13.2.6 Block Diagram of the CAN0 Transmit/Receive & Error Interrupt Requests (4/5)
