SUMMARY OF PRECAUTIONS
Appendix 4.1 Precautions about the CPU
Appendix 4.1.1 Precautions Regarding Data Transfer
When transferring data, be aware that data arrangements in registers and memory are different.
• Word data (32 bits)
+0 +1 +2 +3
b0 b31
HH HL LH LL
b0 b31
HH HL LH LL
• Halfword data (16 bits)
+0 +1 +2 +3
b0 b31
H L
b0 b15
H L
• Byte data (8 bits)
+0 +1 +2 +3
b0
b31 b0 b7
(R0–R15)
(R0–R15)
(R0–R15)
+0 +1 +2 +3
b0
b31 b8 b15
(R0–R15)
+0 +1 +2 +3
b0
b31 b16 b23
(R0–R15)
+0 +1 +2 +3
b0
b31 b24 b31
(R0–R15)
+0 +1 +2 +3
b0 b31
H L
b16 b31
H L
(R0–R15)
Data in registers Data in memory

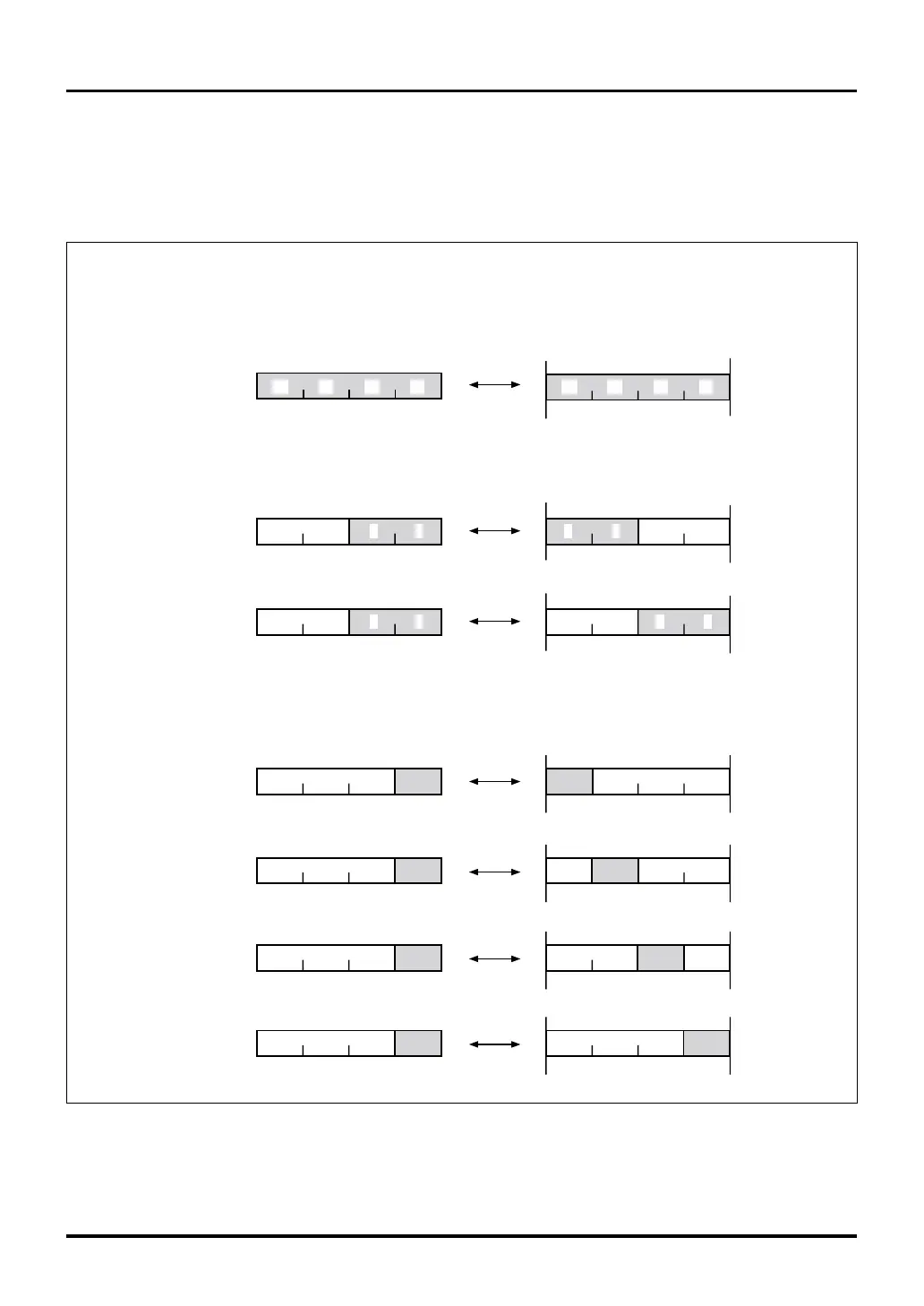

Figure 4.1.1 Difference in Data Arrangements
