12. Chassis Management
ROX™ v2.2 User Guide 126 RuggedBackbone™ RX5000
Detected Module
Synopsis: A string
The installed module's type specifier.
Bootloader
Synopsis: string
The version of the ROX bootloader software on the installed module.
FPGA
Synopsis: string
The version of the ROX FPGA firmware (if any) running on the installed module.
12.4. CPU
This section deals with CPU and memory usage for each slot (not all modules have a cpu). The Slot CPU
table and form display status information about the hardware module installed in a particular chassis
slot. The path to the Slot CPU/RAM Utilization table is chassis/cpu.

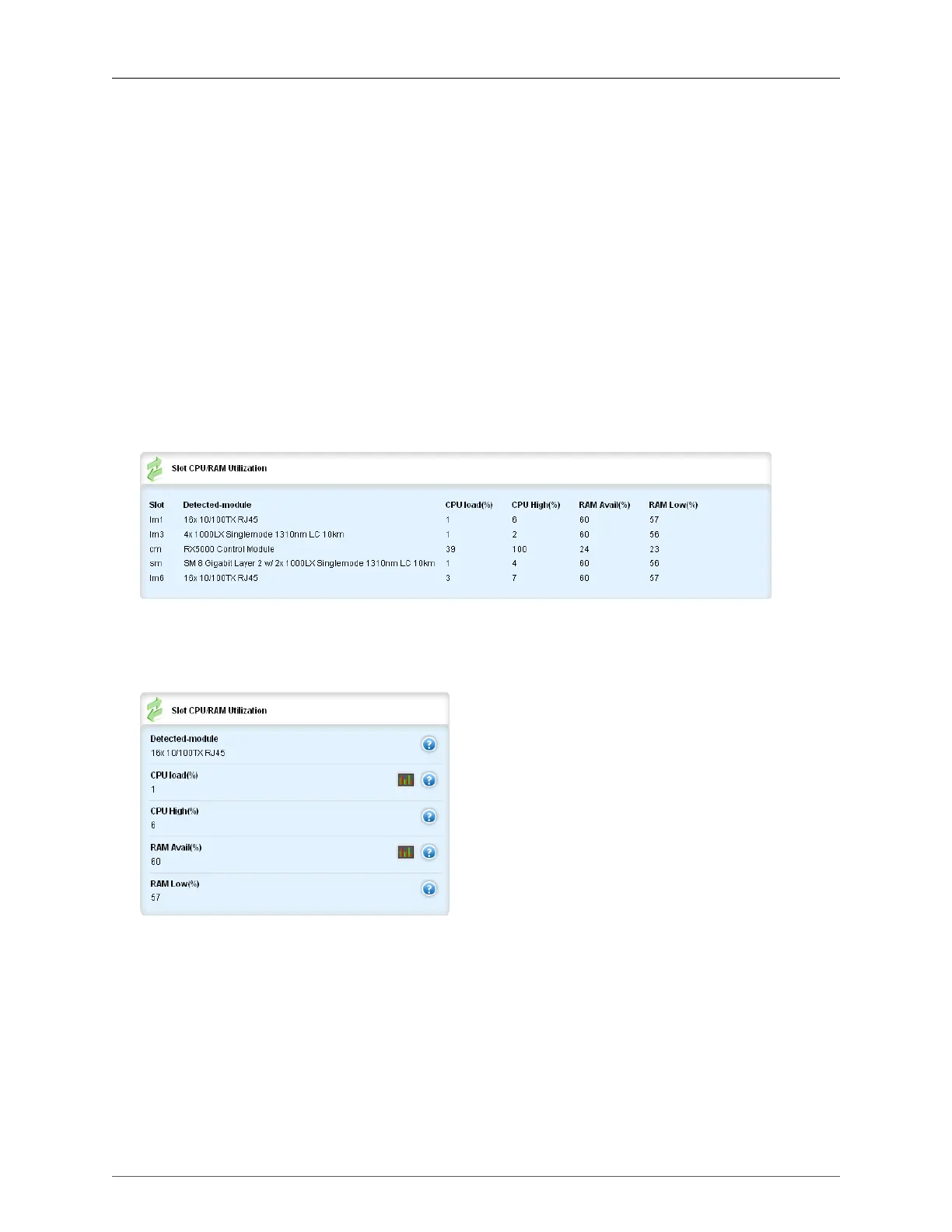

Figure 12.10. Slot CPU/RAM Utilization table
The path to the Slot CPU/RAM Utilization form is chassis/cpu and then clicking on a linked sub menu
(for example, lm1).
Figure 12.11. Slot CPU/RAM Utilization form
slot
Synopsis: string - the keyword { --- }
Synopsis: string - one of the following keywords { main, pm2, pm1 }
Synopsis: string - one of the following keywords { lm6, lm5, lm4, lm3, lm2, lm1, sm }
Synopsis: string - one of the following keywords { em, cm }
Synopsis: string - the keyword { trnk }
The slot name, as marked on the silkscreen across the top of the chassis.
