19. Virtual Switch Bridging
ROX™ v2.2 User Guide 186 RuggedBackbone™ RX5000
19.3. Virtual Switch Configuration and Status

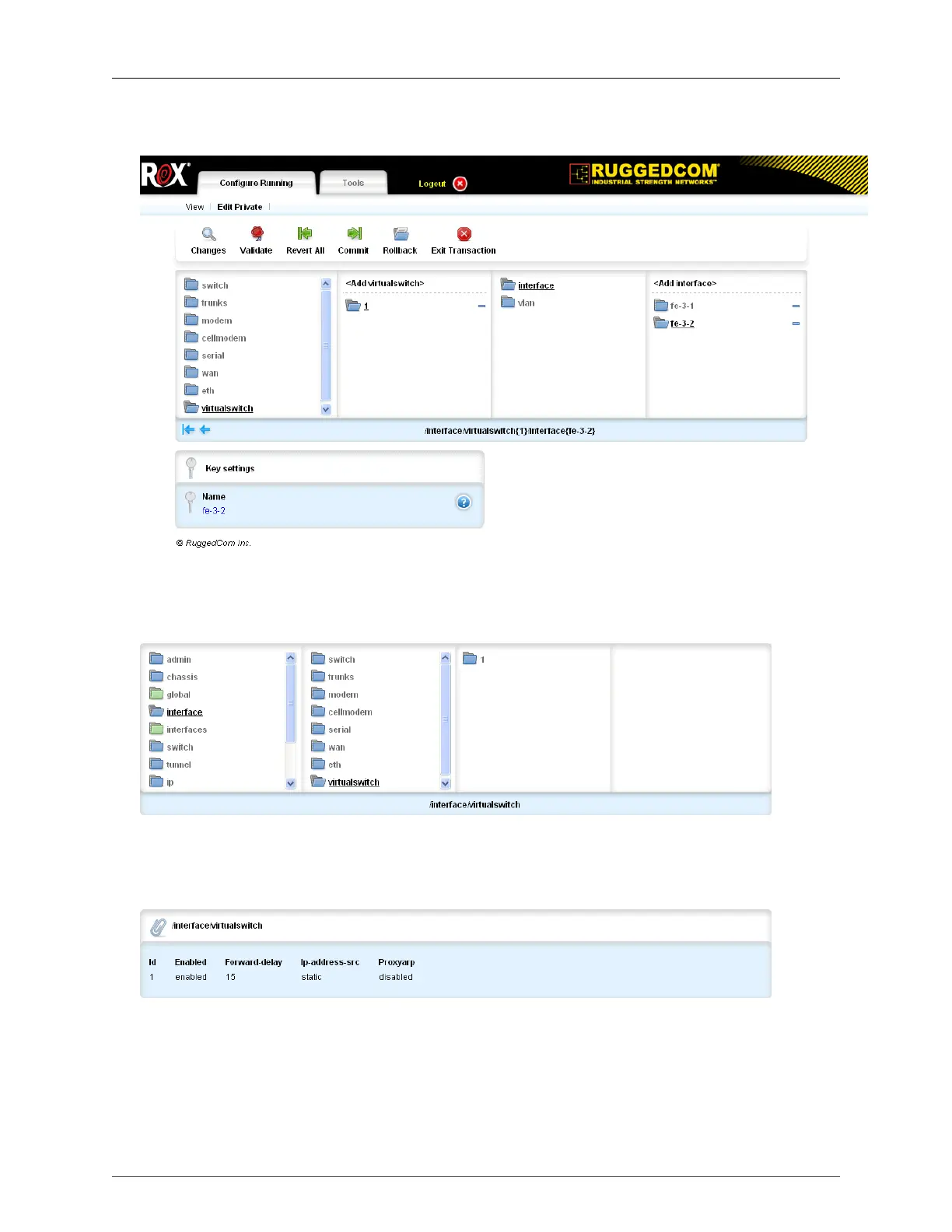

Figure 19.2. Adding a Virtual Switch
To add a virtual switch, enter Edit Private mode. Add a virtual switch and at least two interfaces. You
can also add VLANs.
Figure 19.3. Interface Virtualswitch menu
The Interface Virtualswitch menu is located at interface/virtualswitch. If a virtual switch is configured,
the Virtualswitch table appears on the same screen as this menu.
Figure 19.4. Virtualswitch table
