26. Virtual LANs
ROX™ v2.2 User Guide 274 RuggedBackbone™ RX5000

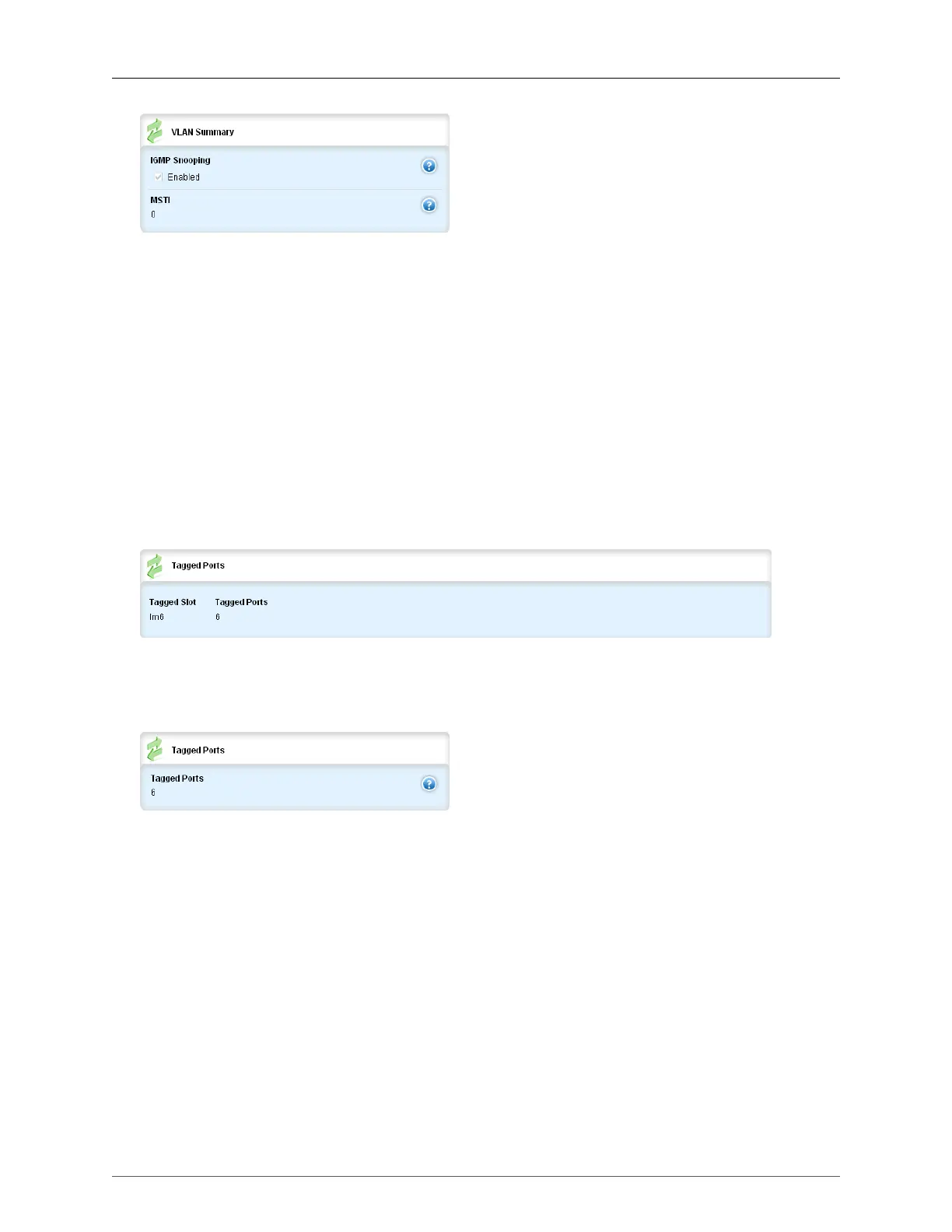

Figure 26.11. VLAN Summary form
VLAN ID
Synopsis: integer
The VLAN Identifier is used to identify the VLAN in tagged Ethernet frames according to IEEE
802.1Q.
IGMP Snooping
Synopsis: boolean
Enables/disables IGMP-Snooping.
MSTI
Synopsis: integer
The assigned MSTP Instance ID.
To display the VLAN Summary form, navigate to switch/vlans/vlan-summary/{number}.
Figure 26.12. Tagged Ports table
Tagged-ports and untagged-ports can be viewed. To display the Tagged Ports table, navigate to switch/
vlans/vlan-summary/{number}/tagged-ports.
Figure 26.13. Tagged Ports form
To display the Tagged Ports form, navigate to switch/vlans/vlan-summary/{number}/tagged-ports/{line
module}.
Tagged Slot
Synopsis: string - one of the following keywords { lm6, lm5, lm4, lm3, lm2, lm1, sm }
The name of the module location provided on the silkscreen across the top of the device.
Tagged Ports
Synopsis: A string
The selected ports on the module installed in the indicated slot.
