19. Virtual Switch Bridging

ROX™ v2.2 User Guide 189 RuggedBackbone™ RX5000

MTU

Synopsis: integer

MTU (Maximum Transmission Unit) value on the port.

MAC

Synopsis: Ethernet MAC address in colon-separated hexadecimal notation

The MAC address of the port.

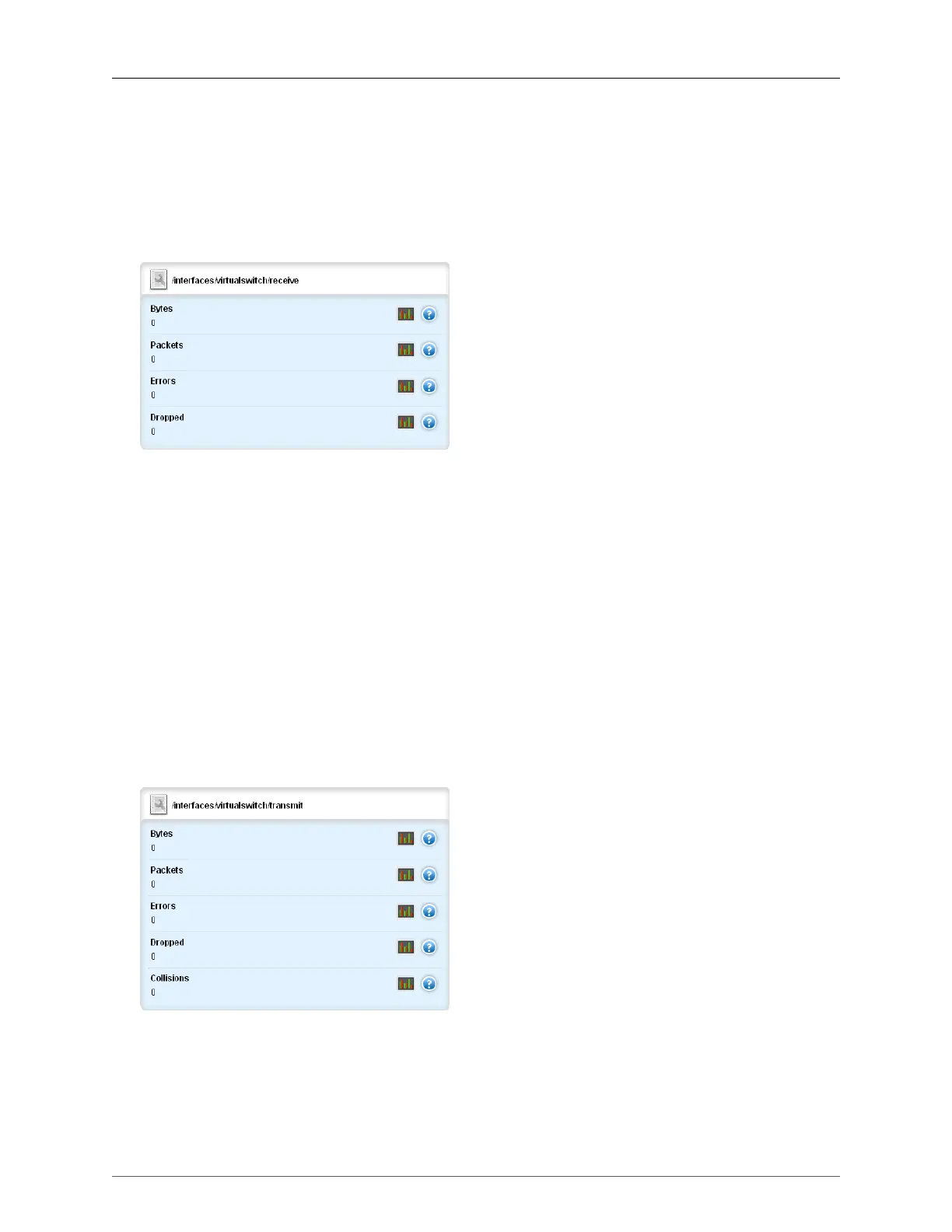

Figure 19.12. Receive form

Bytes

Synopsis: unsigned long integer

Number of bytes received.

Packets

Synopsis: unsigned long integer

Number of packets received.

Errors

Synopsis: unsigned integer

Number of error packets received.

Dropped

Synopsis: unsigned integer

Number of dropped packets by the receive device.

Figure 19.13. Transmit form

Bytes

Synopsis: unsigned long integer

Number of bytes transmitted.
