29. Layer 3 Switching
ROX™ v2.2 User Guide 299 RuggedBackbone™ RX5000

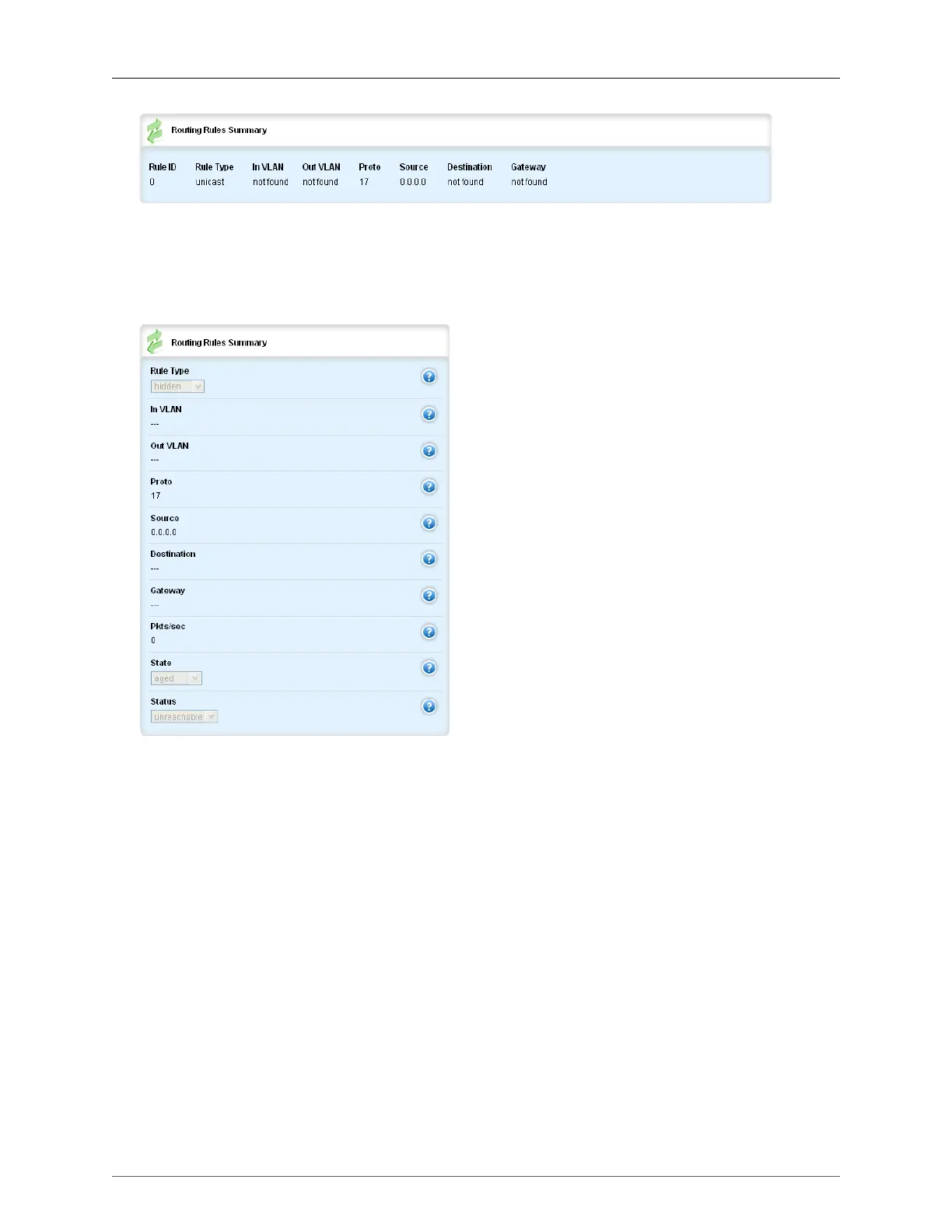

Figure 29.10. Routing Rules Summary table
To view the details for a routing rule:
• Navigate to switch/layer3-switching/routing-rules-summary/{rule id}.
• Review the entries on the Routing Rules Summary form.
Figure 29.11. Routing Rules Summary form
Rule Type
Synopsis: string - one of the following keywords { hidden, invalid, unicast, multicast }
Identifies the type of the rule: unicast,multicast,invalid
In VLAN
Synopsis: integer
Identifies the ingress VLAN. To match the rule, the packet's ingress VLAN must match the number.
Out VLAN
Synopsis: integer
Identifies the egress VLAN. The matched multicast packet is sent to the identified VLAN.
Proto
Synopsis: unsigned byte
IP Encapsulated Protocol number. Unless zero is specified, the incoming packet's IP protocol must
match this number.
source
Synopsis: IPv4 address in dotted-decimal notation
