26. Virtual LANs
ROX™ v2.2 User Guide 275 RuggedBackbone™ RX5000

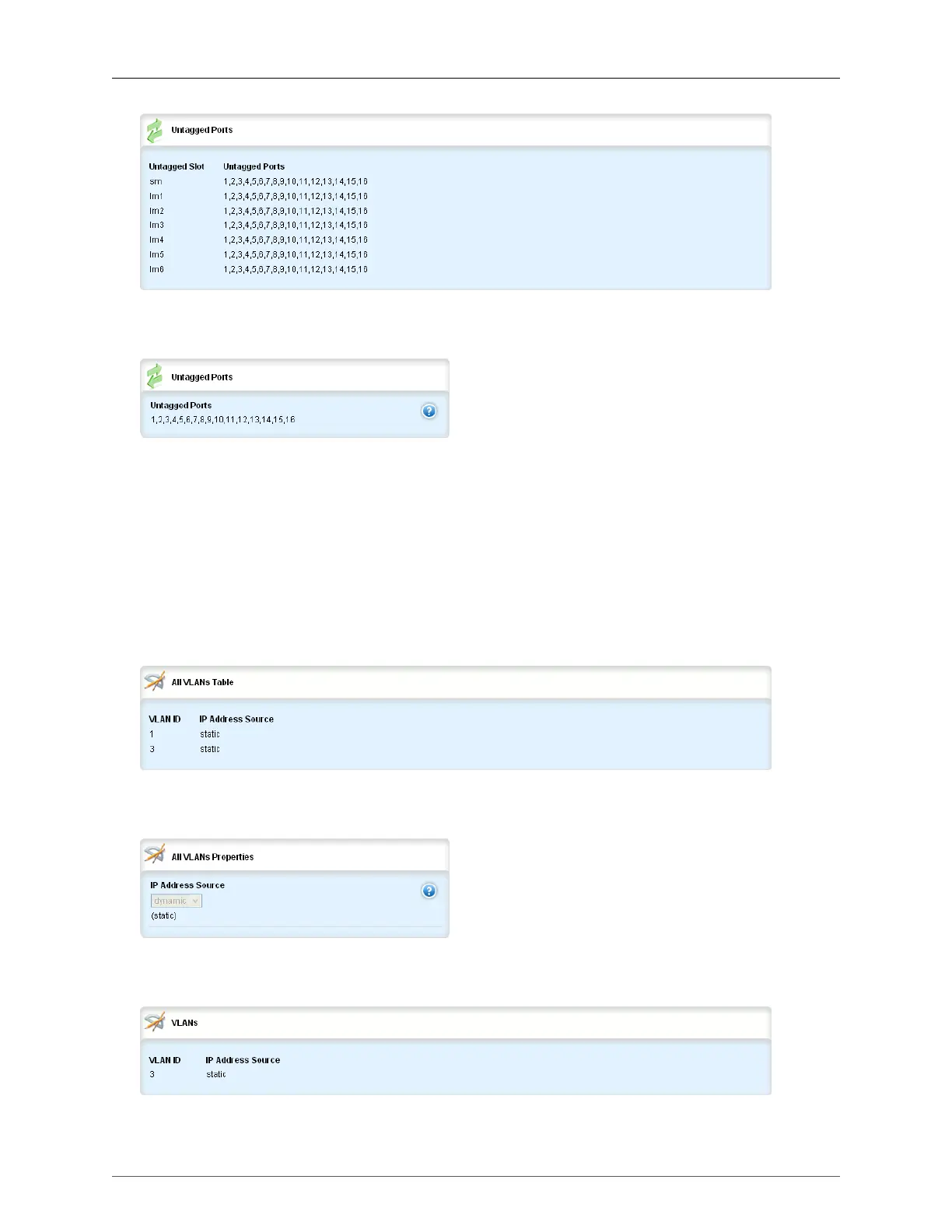

Figure 26.14. Untagged Ports table
To display the Tagged Ports table, navigate to switch/vlans/vlan-summary/{number}/untagged-ports.
Figure 26.15. Untagged Ports form
To display the Tagged Ports form, navigate to switch/vlans/vlan-summary/{number}/untagged-ports/
{line module}.
Untagged Slot
Synopsis: string - one of the following keywords { lm6, lm5, lm4, lm3, lm2, lm1, sm }
The name of the module location provided on the silkscreen across the top of the device.
Untagged Ports
Synopsis: A string
The selected ports on the module installed in the indicated slot.
Figure 26.16. All VLANs table
To display the All VLANs table, navigate to switch/vlans/all-vlans.
Figure 26.17. All VLANs Properties form
To display the All VLANs Properties form, navigate to switch/vlans/all-vlans/{number).
Figure 26.18. VLANs table
