27. Network Discovery
ROX™ v2.2 User Guide 280 RuggedBackbone™ RX5000
The multiplier of the Tx Interval parameter that determines the actual time-to-live (TTL) value used
in an LLDPDU. The actual TTL value can be expressed by the following formula: TTL = MIN(65535,
(Tx Interval * Tx Hold))
Reinitialization Delay (sec)
Synopsis: integer
Default: 2
The delay in seconds from when the value of the Admin Status parameter of a particular port
becomes 'Disbled' until re-initialization will be attempted.
Transmission Delay (sec)
Synopsis: integer
Default: 2
The delay in seconds between successive LLDP frame transmissions initiated by the value or status
changed. The recommended value is set by the following formula: 1 is less than or equal to txDelay
less than or equal to (0.25 * Tx Interval)
Notification Interval (sec)
Synopsis: integer
Default: 5
Controls transmission of LLDP traps. The agent must not generate more than one trap in an
indicated period.

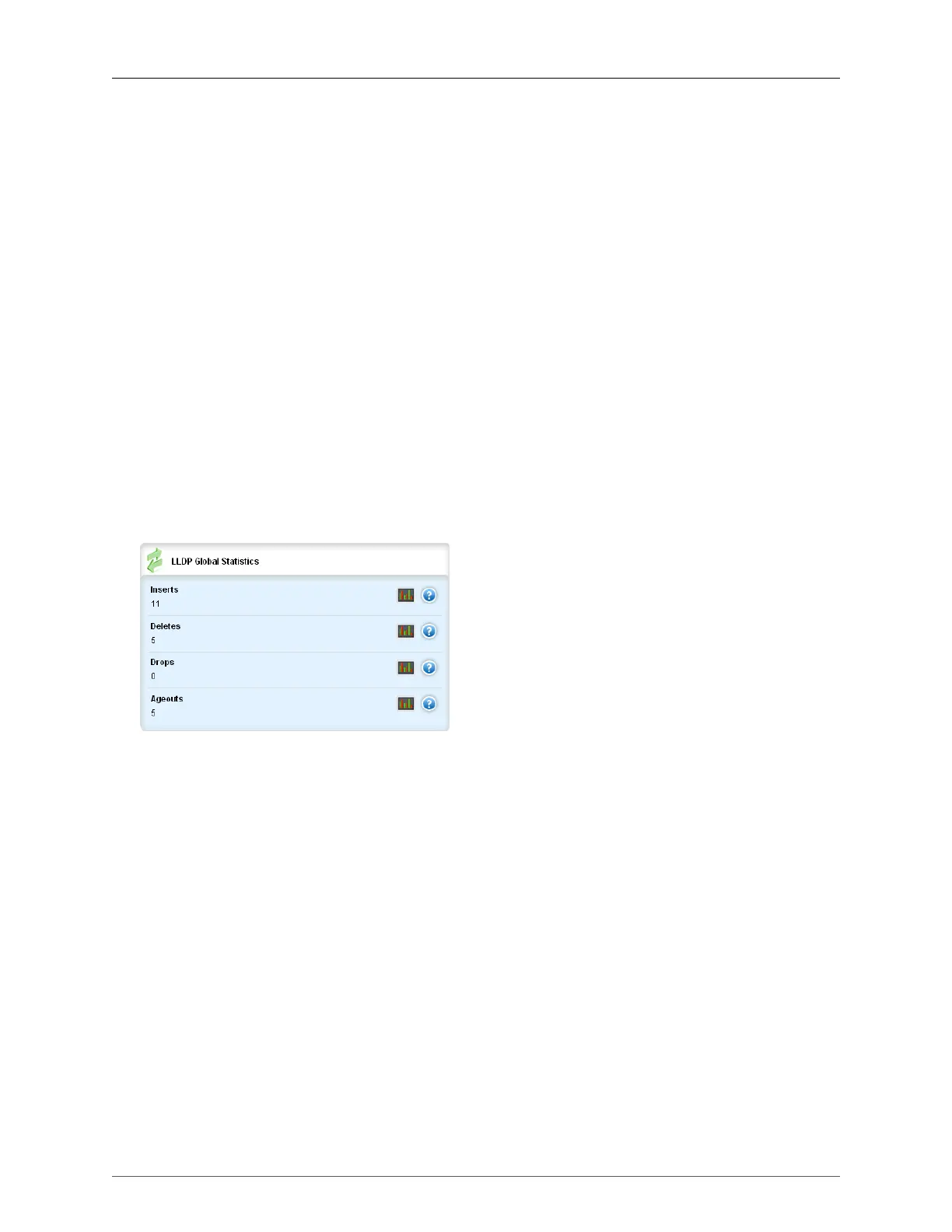

Figure 27.4. LLDP Global Statistics form
Inserts
Synopsis: unsigned integer
The number of times an entry was inserted into the LLDP Neighbor Information Table.
Deletes
Synopsis: unsigned integer
The number of times an entry was deleted from the LLDP Neighbor Information Table.
Drops
Synopsis: unsigned integer
The number of times an entry was deleted from the LLDP Neighbor Information Table because the
information timeliness interval has expired.
Ageouts
Synopsis: unsigned integer
The number of all TLVs discarded.
