16. Ethernet Ports
ROX™ v2.2 User Guide 164 RuggedBackbone™ RX5000

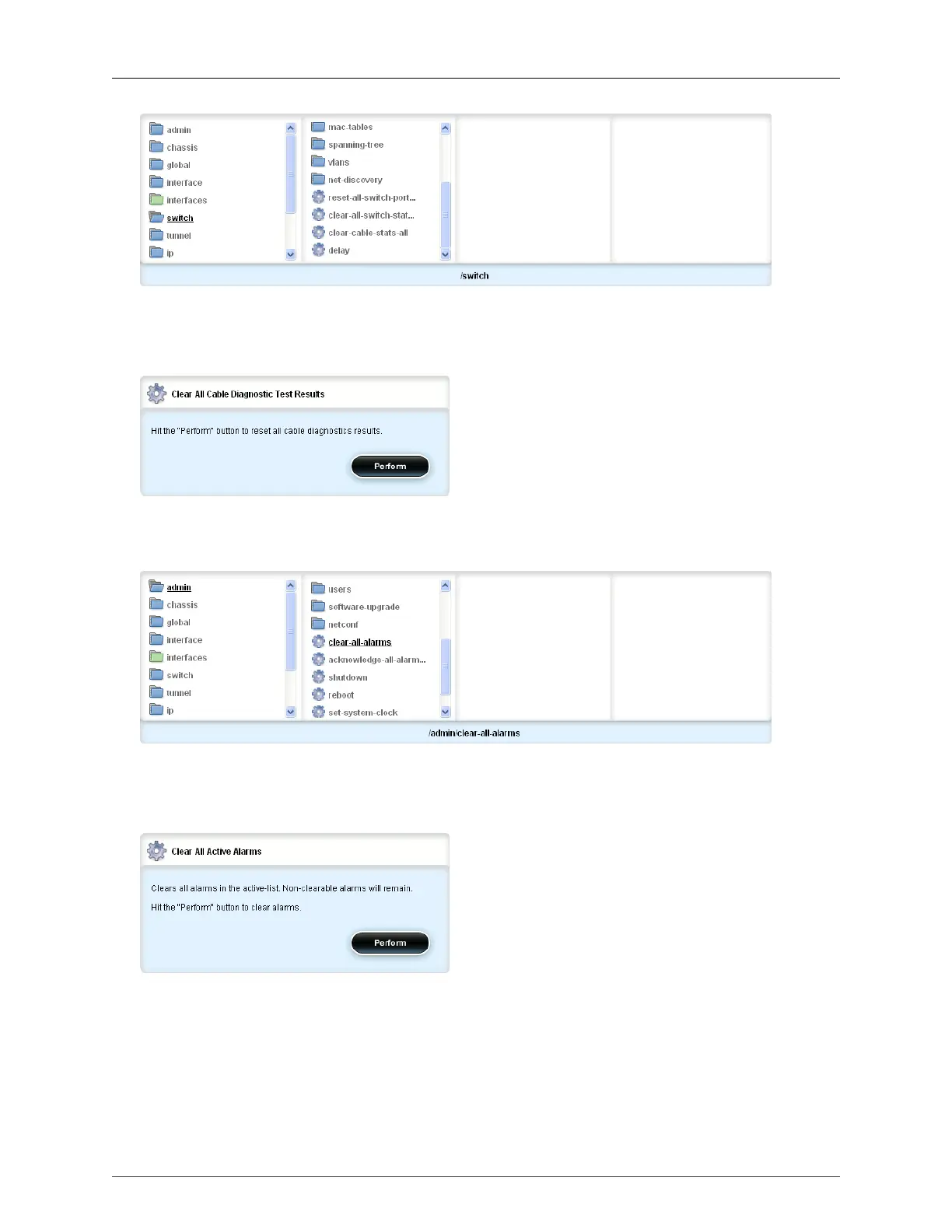

Figure 16.16. Clear All Diagnostics (Switch) menu
To clear all cable diagnostic results, click the Perform button on the Clear All Cable Diagnostic Test
Results form.
Figure 16.17. Clear All Cable Diagnostic Test Results form
16.2.4.2.2. Clearing Ethernet Alarms
Figure 16.18. Clear All Alarms menu
Alarms can be cleared by hitting the Perform button. This command can be accessed from the Clear
All Alarms menu action on the admin/clear-all-alarms menu.
Figure 16.19. Clear All Active Alarms Trigger Action
16.2.4.3. Calibrating Estimated Distance To Fault
Follow these steps to set the “Calib” parameter (the estimated distance to fault):
1. Pick a particular port for which calibration is needed.
2. Connect an Ethernet cable with a known length (e.g. 50m) to the port.
