30. Tunnelling

ROX™ v2.2 User Guide 308 RuggedBackbone™ RX5000

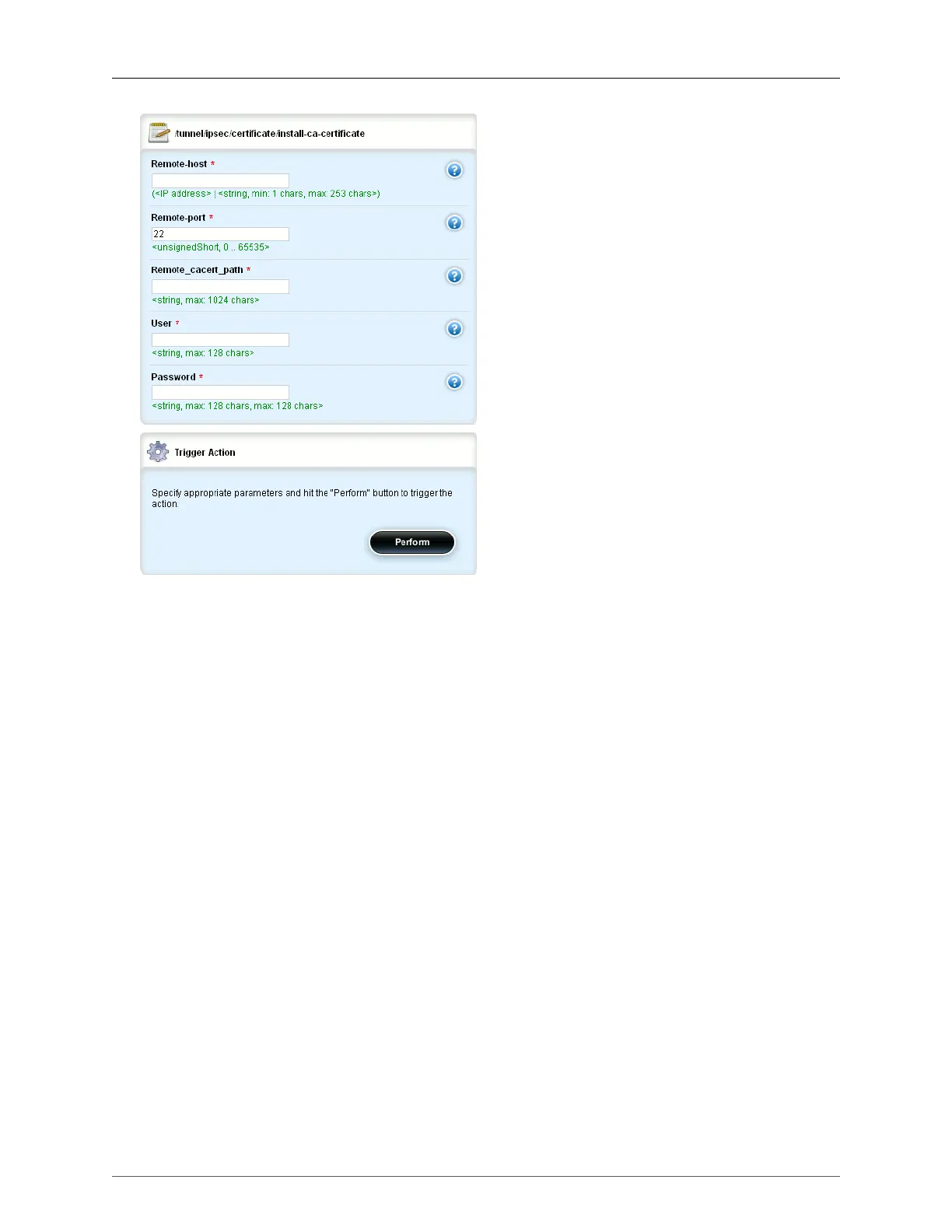

Figure 30.7. Install-Ca-Certificate forms

The path to the Install-Ca-Certificate forms is tunnel/ipsec/certificate/install-ca-certificate. Enter the

parameters and then click on the Perform button to install the certificates.
