19. Virtual Switch Bridging

ROX™ v2.2 User Guide 191 RuggedBackbone™ RX5000

Dropped Into Abyss

Synopsis: unsigned integer

Number of dropped packets by the receive device.

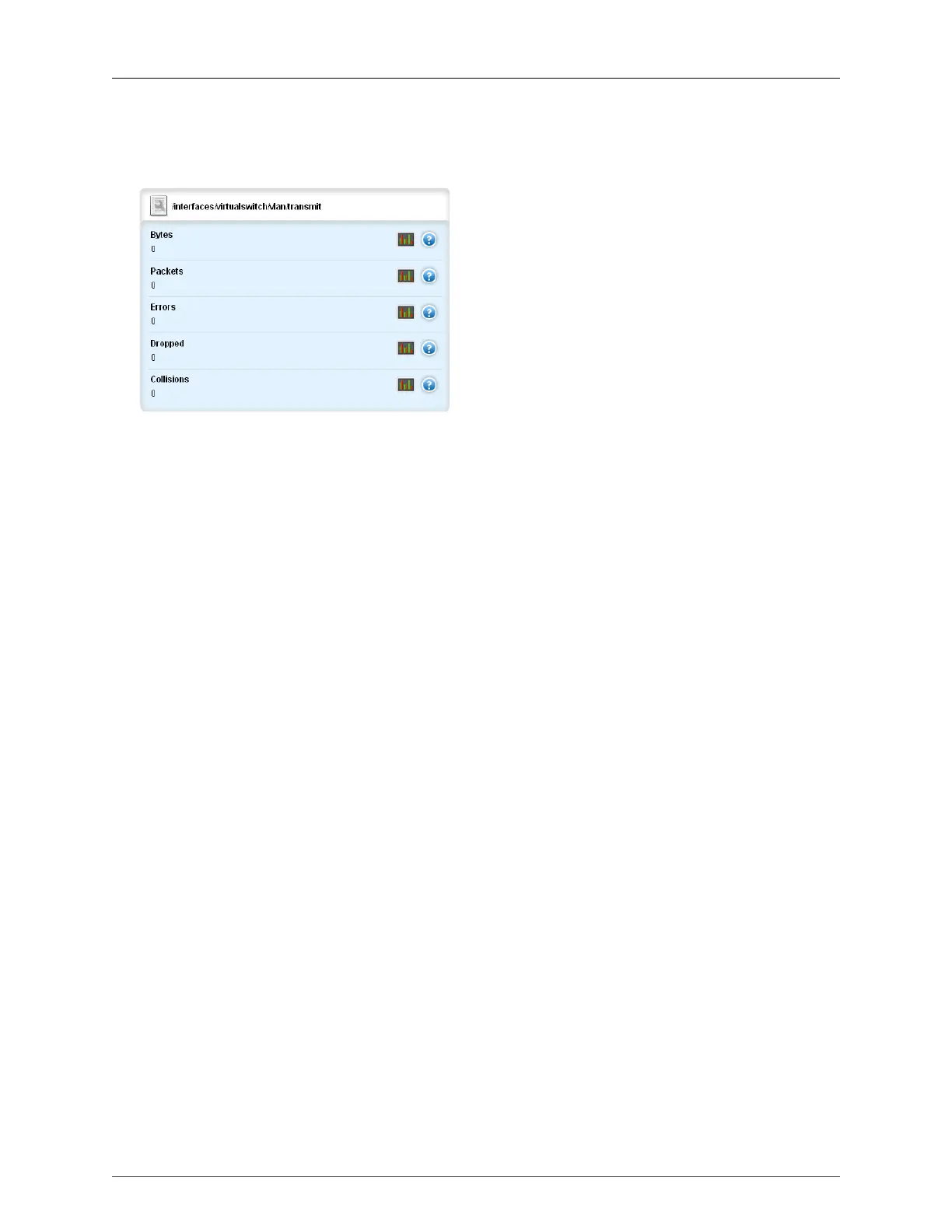

Figure 19.16. VLAN Transmit form

Bytes

Synopsis: unsigned long integer

Number of bytes transmitted.

Packets

Synopsis: unsigned long integer

Number of packets transmitted.

Errors

Synopsis: unsigned integer

Number of error packets transmitted.

Dropped

Synopsis: unsigned integer

Number of dropped packets by the transmit device.

Collisions

Synopsis: unsigned integer

Number of collisions detected on the port.
