16. Ethernet Ports
ROX™ v2.2 User Guide 160 RuggedBackbone™ RX5000
Egress Source Slot
Synopsis: string - one of the following keywords { lm6, lm5, lm4, lm3, lm2, lm1, sm }
The name of the module location provided on the silkscreen across the top of the device.
Egress Source Port
Synopsis: integer
The selected ports on the module installed in the indicated slot.
16.2.4. Diagnostics
To display the Diagnostics menu and Cable Diagnostics Results form, navigate to interfaces/switch/
{line module}/diagnostics.

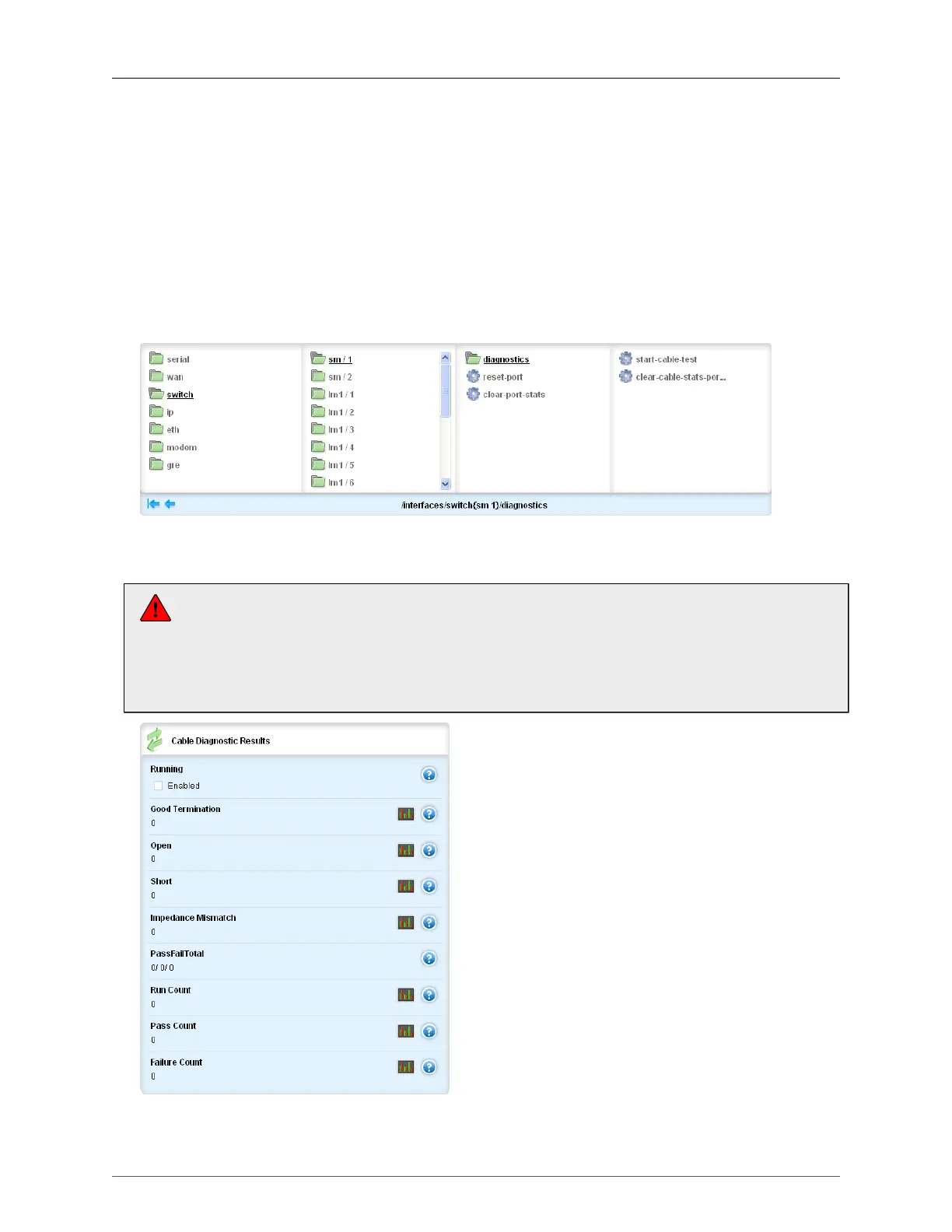

Figure 16.11. Diagnostics menu
ROX™ is able to perform cable diagnostics per Ethernet port and to view the results.
When cable diagnostics are performed on a port, any established network link on the port
will be dropped and normal network traffic will not be able to pass through either the Port
Under Test or the Partner Port. Please be aware of the potential network interruption that
could be triggered by running cable diagnostics. After the cable diagnostics finish, the
original network port settings for both the Port Under Test and the Partner Port are restored
along with any established link.
Figure 16.12. Cable Diagnostics Results form
