26. Virtual LANs
ROX™ v2.2 User Guide 270 RuggedBackbone™ RX5000
The number of network hosts may often be reduced. Often, a server is assigned to provide services for
independent networks. These hosts may be replaced by a single, multi-homed host supporting each
network on its own VLAN. This host can perform routing between VLANs.

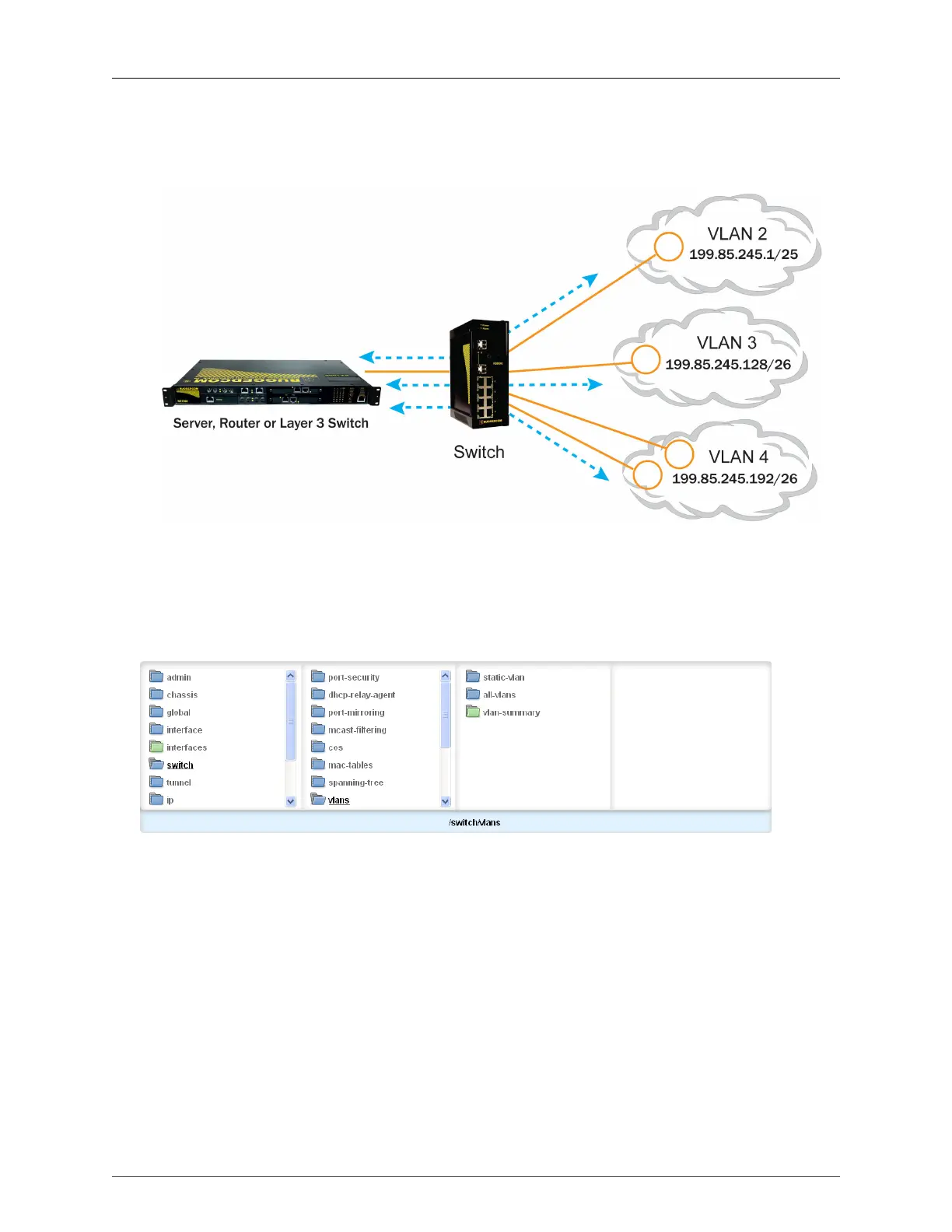

Figure 26.3. Inter-VLAN Communications
26.3. VLAN Configuration
The Virtual LANs menu and the Internal VLAN Range form are accessible from the main menu under
switch/vlans.
Figure 26.4. Virtual LANs menu
