19. Virtual Switch Bridging
ROX™ v2.2 User Guide 188 RuggedBackbone™ RX5000

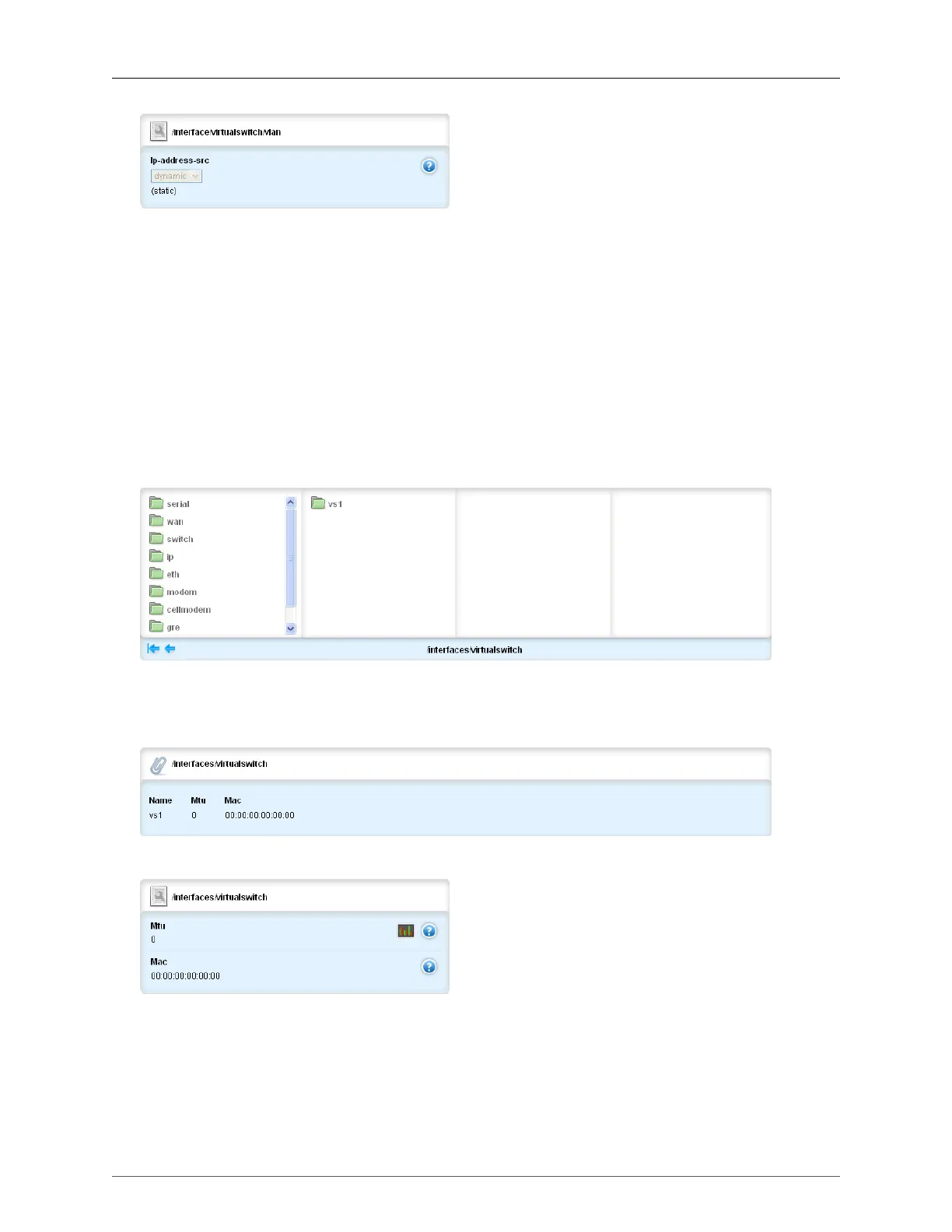

Figure 19.8. VLAN form
To display this form, navigate to interface/virtualswitch/{number}/vlan/{number}.
VLAN ID
Synopsis: integer
VLAN ID for this routable logical interface
IP Address Source
Synopsis: string - one of the following keywords { dynamic, static }
Default: static
Whether the IP address is static or dynamically assigned via DHCP or BOOTP.
If a virtual switch has been configured, some virtual switch data will be displayed under the Interfaces
Virtualswitch menu.
Figure 19.9. Interfaces Virtualswitch menu
To display the Interfaces Virtualswitch menu, navigate to interfaces/virtualswitch. The Virtualswitch table
appears on the same screen as this menu.
Figure 19.10. Virtualswitch table
Figure 19.11. Virtualswitch form
To display the Virtualswitch, Receive, and Transmit forms, navigate to interfaces/virtualswitch/
{virtualswitch number}.
Interface Name
Synopsis: A string conforming to: "[A-Za-z]{1}[-0-9A-Za-z]{0,9}.*"
