27. Network Discovery
ROX™ v2.2 User Guide 284 RuggedBackbone™ RX5000

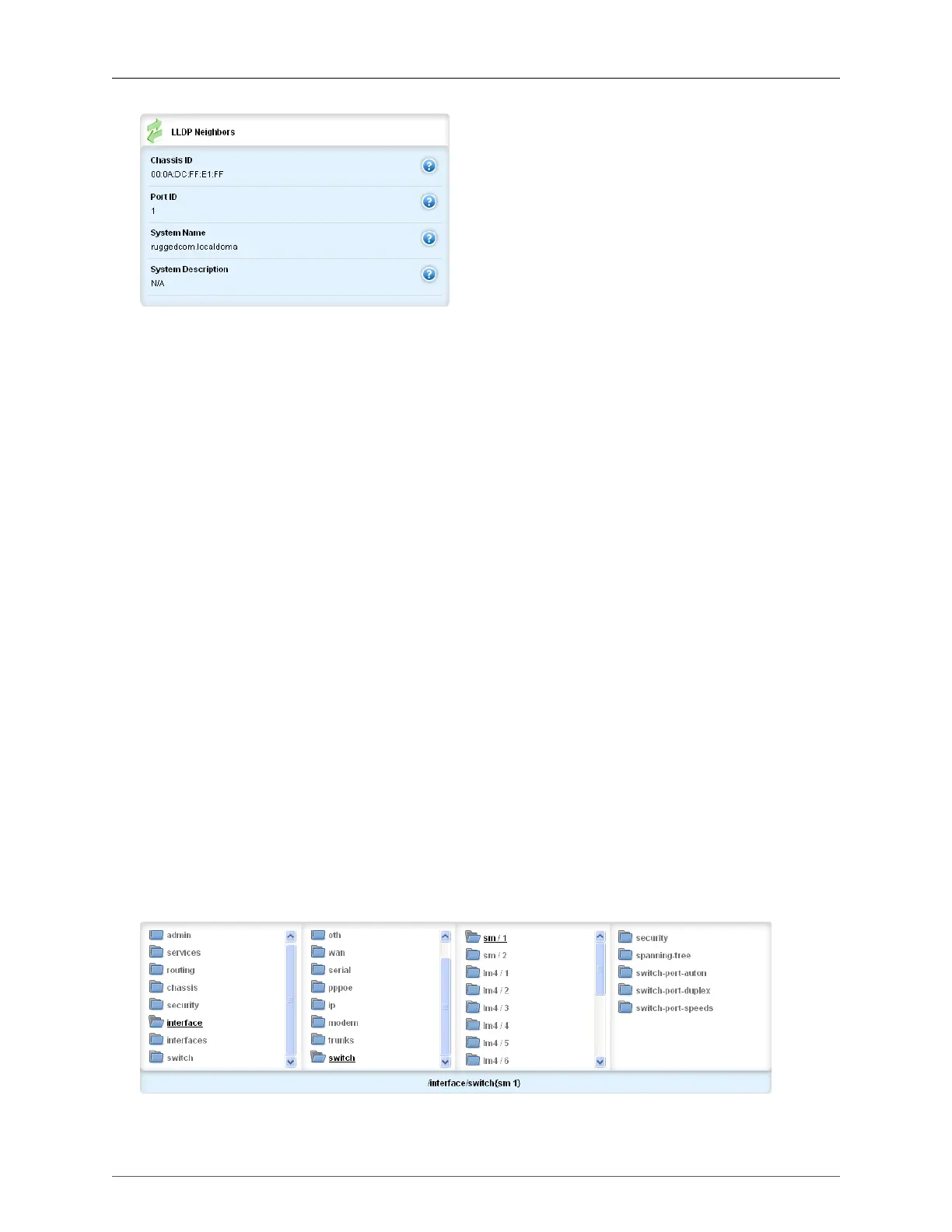

Figure 27.9. LLDP Neighbors form
The path to the LLDP Neighbors form is switch/net-discovery/lldp/port-lldp-neighbors and then clicking
on one of the linked submenus (for example, sm/1).
slot
Synopsis: string - the keyword { --- }
Synopsis: string - one of the following keywords { main, pm2, pm1 }
Synopsis: string - one of the following keywords { lm6, lm5, lm4, lm3, lm2, lm1, sm }
Synopsis: string - one of the following keywords { em, cm }
Synopsis: string - the keyword { trnk }
The slot of the module that contains this port.
Port
Synopsis: integer
The port number as seen on the front plate silkscreen of the module.
Chassis ID
Synopsis: Ethernet MAC address in colon-separated hexadecimal notation
Chassis ID information received from a remote LLDP agent.
Port ID
Synopsis: Ethernet MAC address in colon-separated hexadecimal notation
Port ID (MAC) information received from a remote LLDP agent.
System Name
Synopsis: A string
System name information received from a remote LLDP agent
System Description
Synopsis: A string
System descriptor information received from a remote LLDP agent.
Figure 27.10. LLDP submenu
