30. Tunnelling

ROX™ v2.2 User Guide 323 RuggedBackbone™ RX5000

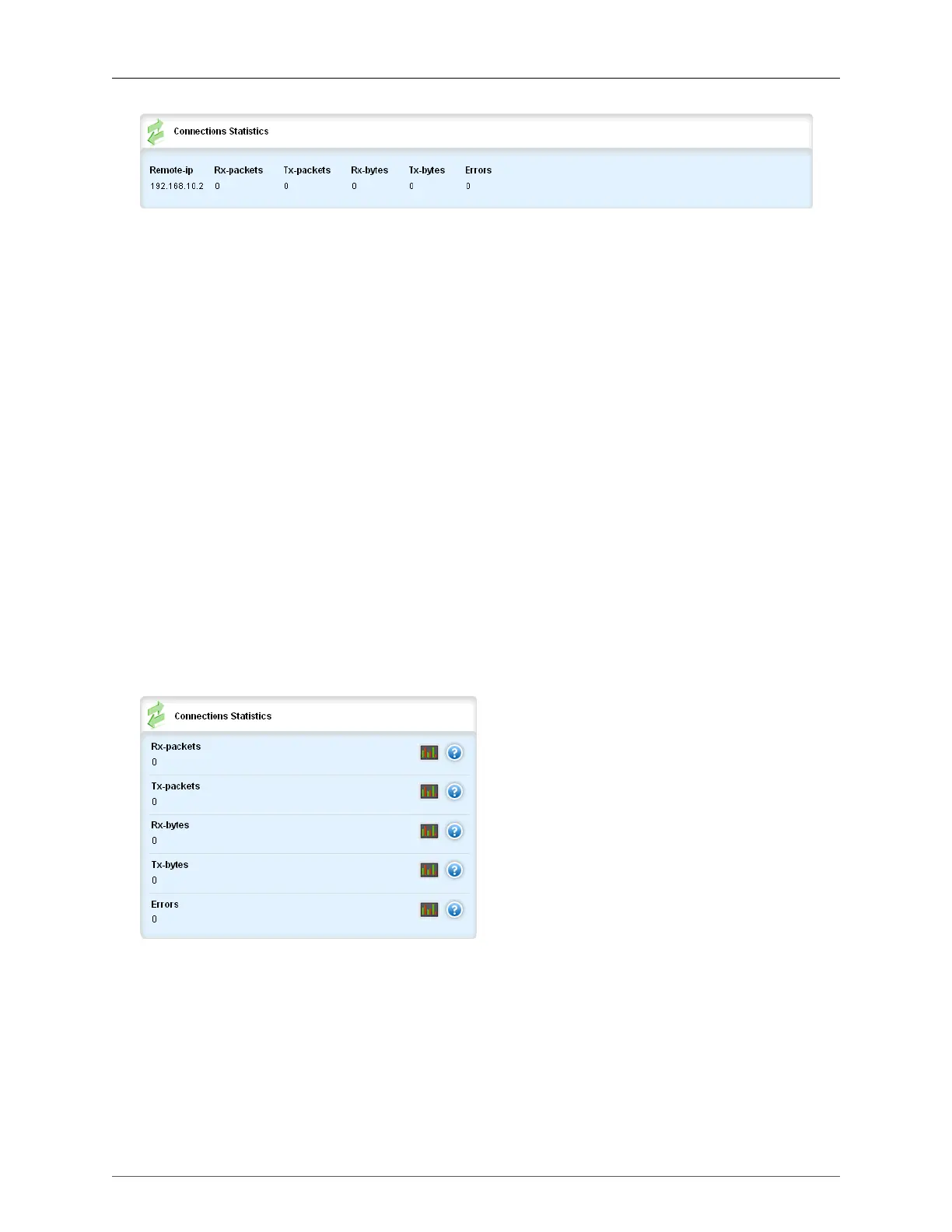

Figure 30.39. Connections Statistics table

remote-ip

Synopsis: IPv4 address in dotted-decimal notation

IP address of remote goose daemon

rx-packets

Synopsis: unsigned integer

The number of frames received over the tunnel

tx-packets

Synopsis: unsigned integer

The number of frames transmitted over the tunnel

rx-bytes

Synopsis: unsigned integer

The number of bytes received over the tunnel

tx-bytes

Synopsis: unsigned integer

The number of bytes transmitted over the tunnel

errors

Synopsis: unsigned integer

The number of errors over the tunnel

Figure 30.40. Connections Statistics form

30.3.3.3.2. Status Generic

The forms and tables in this section are located under tunnel/l2tunneld/status/generic.
