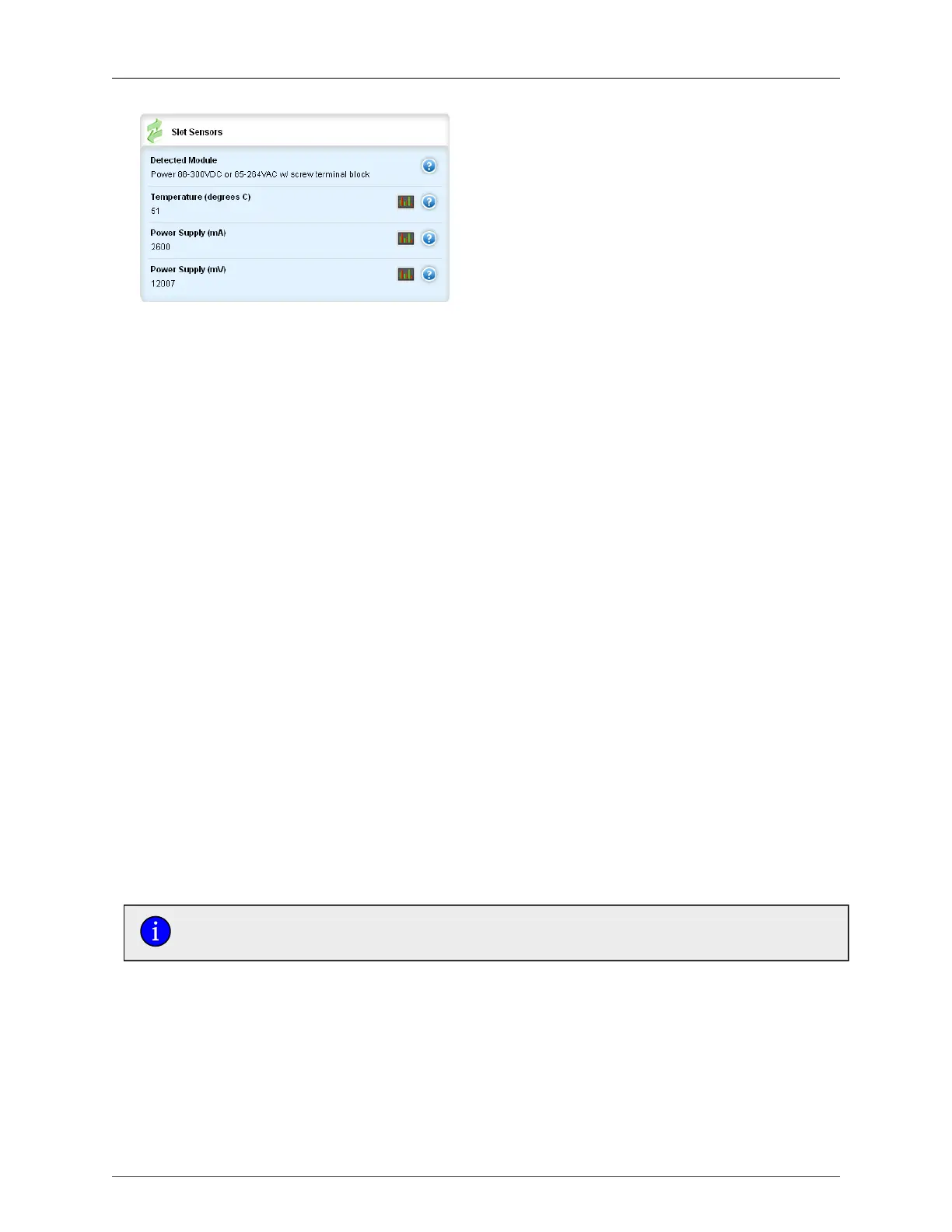

Figure 12.15. Slot Sensors form
Slot sensors contain temperature and power supply information about the installed modules.
slot
Synopsis: string - the keyword { --- }
Synopsis: string - one of the following keywords { main, pm2, pm1 }
Synopsis: string - one of the following keywords { lm6, lm5, lm4, lm3, lm2, lm1, sm }
Synopsis: string - one of the following keywords { em, cm }
Synopsis: string - the keyword { trnk }
The slot name, as marked on the silkscreen across the top of the chassis.
Detected Module
Synopsis: A string
The installed module's type specifier.
Temperature (degrees C)
Synopsis: integer
The temperature, in degrees C, of the installed module. If multiple temperature sensors are present
on the board, the maximum reading is reported.
Power Supply (mA)
Synopsis: integer
The power supply current, in mA, being drawn by the installed module.
Power Supply (mV)
Synopsis: integer
The power supply voltage, in mV, seen by the installed module.
12.7. Module Configuration
For information on adding and replacing line modules, see Appendix D, Adding and
Replacing Line Modules.
