35. Firewall
ROX™ v2.2 User Guide 385 RuggedBackbone™ RX5000

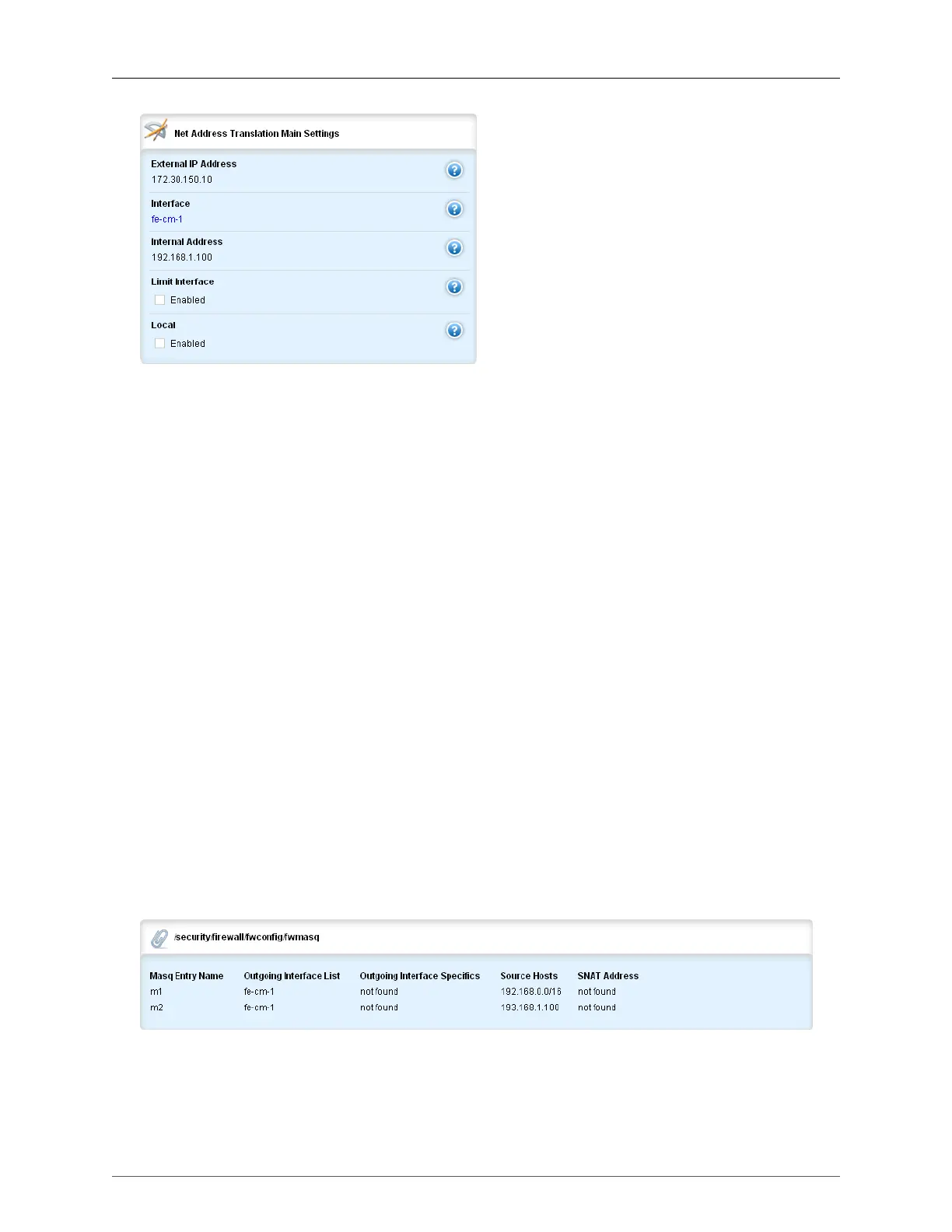

Figure 35.21. Net Address Translation Main Settings form
Nat Entry Name
Synopsis: string
Enter a name for this NAT entry
External IP Address
Synopsis: IPv4 address in dotted-decimal notation
The external IP Address (must not be a DNS name)
Interface
Synopsis: A string
Interfaces that have the EXTERNAL address
Internal Address
Synopsis: IPv4 address in dotted-decimal notation
The internal address (must not be a DNS Name)
Limit Interface
Translation only effective from the defined interface (default: all interfaces)
Local
Translation effective from the firewall system (default: disabled)
description
Synopsis: string
(Optional) The description string for this nat entry
35.5.8. IP Masquerading
Figure 35.22. FWMasq table
