18. IP Statistics

ROX™ v2.2 User Guide 182 RuggedBackbone™ RX5000

Is point to point link.

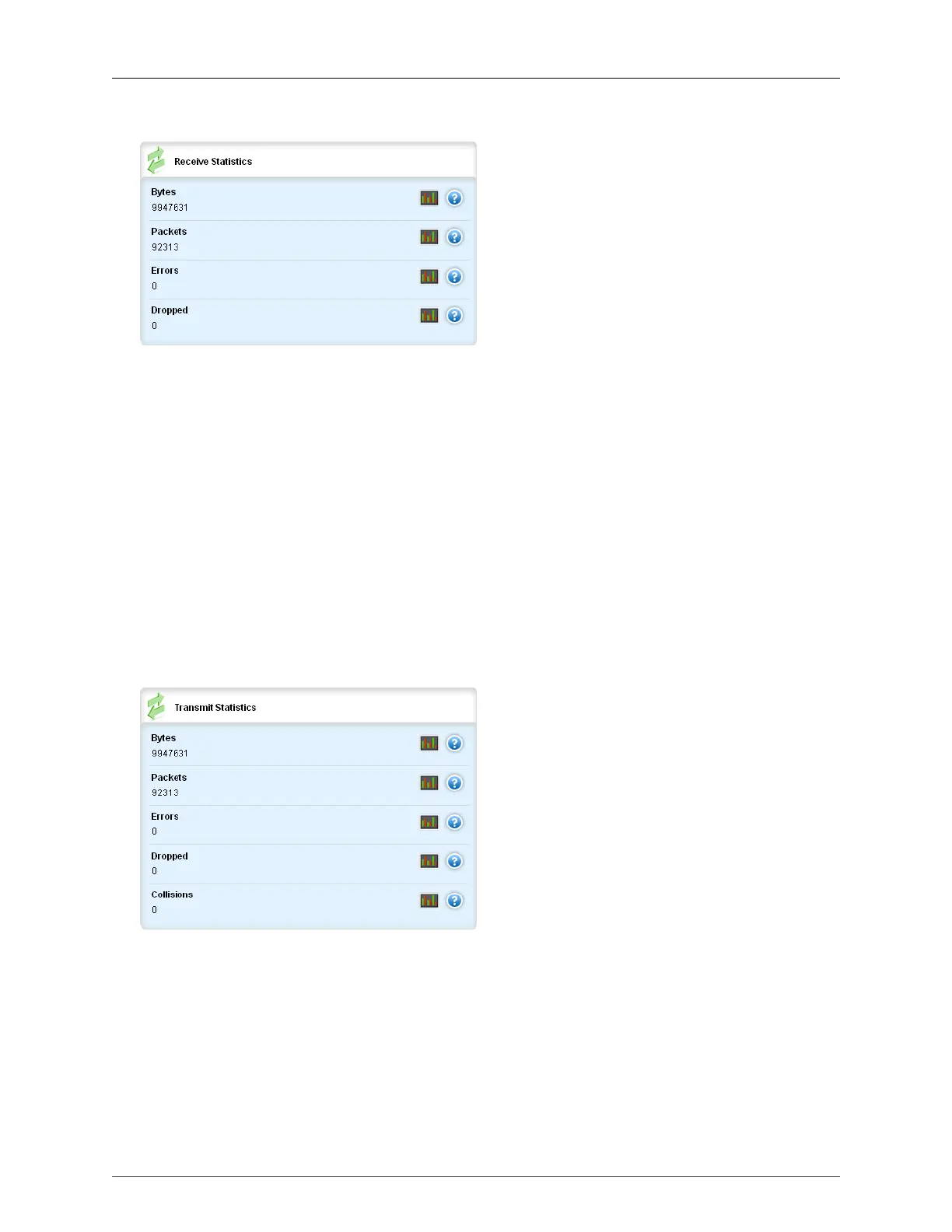

Figure 18.4. Receive Statistics Form

Bytes

Synopsis: unsigned long integer

Number of bytes received.

Packets

Synopsis: unsigned long integer

Number of packets received.

Errors

Synopsis: unsigned integer

Number of error packets received.

Dropped

Synopsis: unsigned integer

Number of dropped packets by the receive device.

Figure 18.5. Transmit Statistics Form

Bytes

Synopsis: unsigned long integer

Number of bytes transmitted.

Packets

Synopsis: unsigned long integer

Number of packets transmitted.
