33. Routing Status

ROX™ v2.2 User Guide 363 RuggedBackbone™ RX5000

External metric type.

route

Synopsis: string

Route.

tag

Synopsis: string

Route tag.

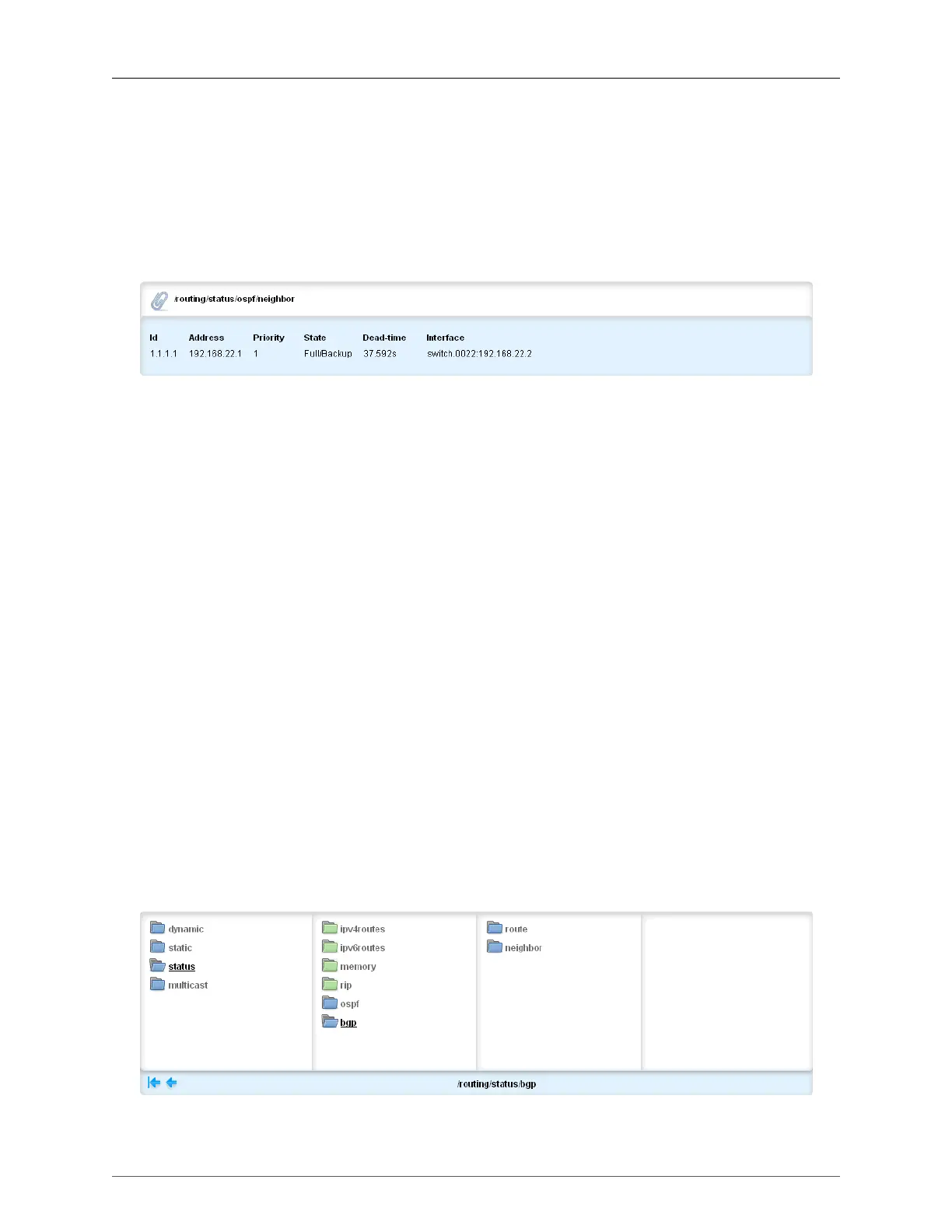

Figure 33.18. Neighbor Table

To display the Neighbor table, navigate to routing/status/ospf/neighbor.

Synopsis: string

Neighbor ID.

address

Synopsis: string

Address.

priority

Synopsis: integer

Priority.

state

Synopsis: string

State.

dead-time

Synopsis: string

Dead Time.

interface

Synopsis: string

Interface.

33.6. BGP

Figure 33.19. BGP Menu
