25. Spanning Tree
ROX™ v2.2 User Guide 253 RuggedBackbone™ RX5000
25.5. Spanning Tree Statistics
25.5.1. Bridge RSTP Statistics

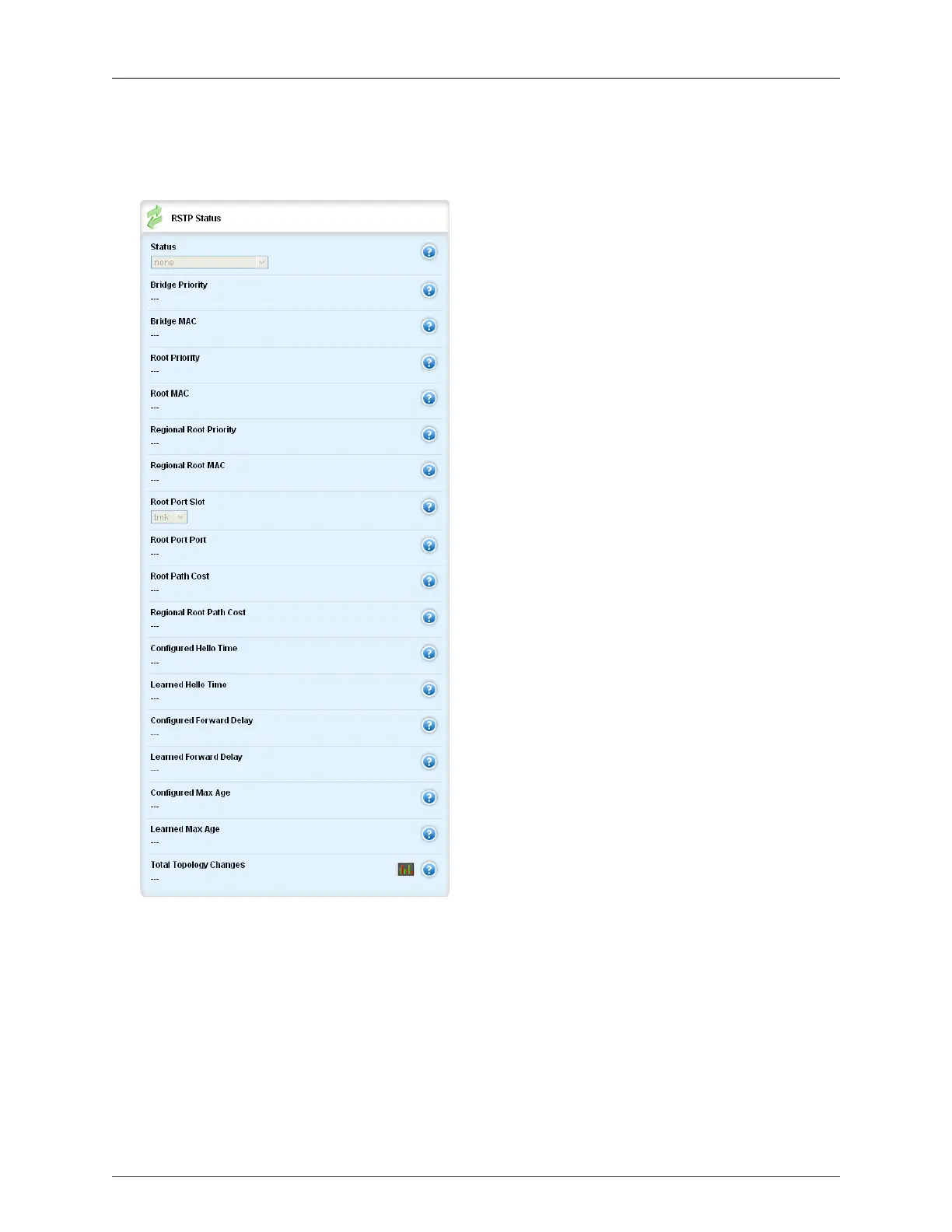

Figure 25.18. RSTP Status form
To display this form, navigate to switch/spanning-tree.
Status
Synopsis: string - one of the following keywords { none, rootBridge, notDesignatedForAnyLAN,
designatedBridge }
The spanning tree status of the bridge. The status may be root or designated. This field may show
text saying 'not designated for any LAN' if the bridge is not the designated bridge for any of its ports.
Bridge Priority
Synopsis: integer
