30. Tunnelling

ROX™ v2.2 User Guide 307 RuggedBackbone™ RX5000

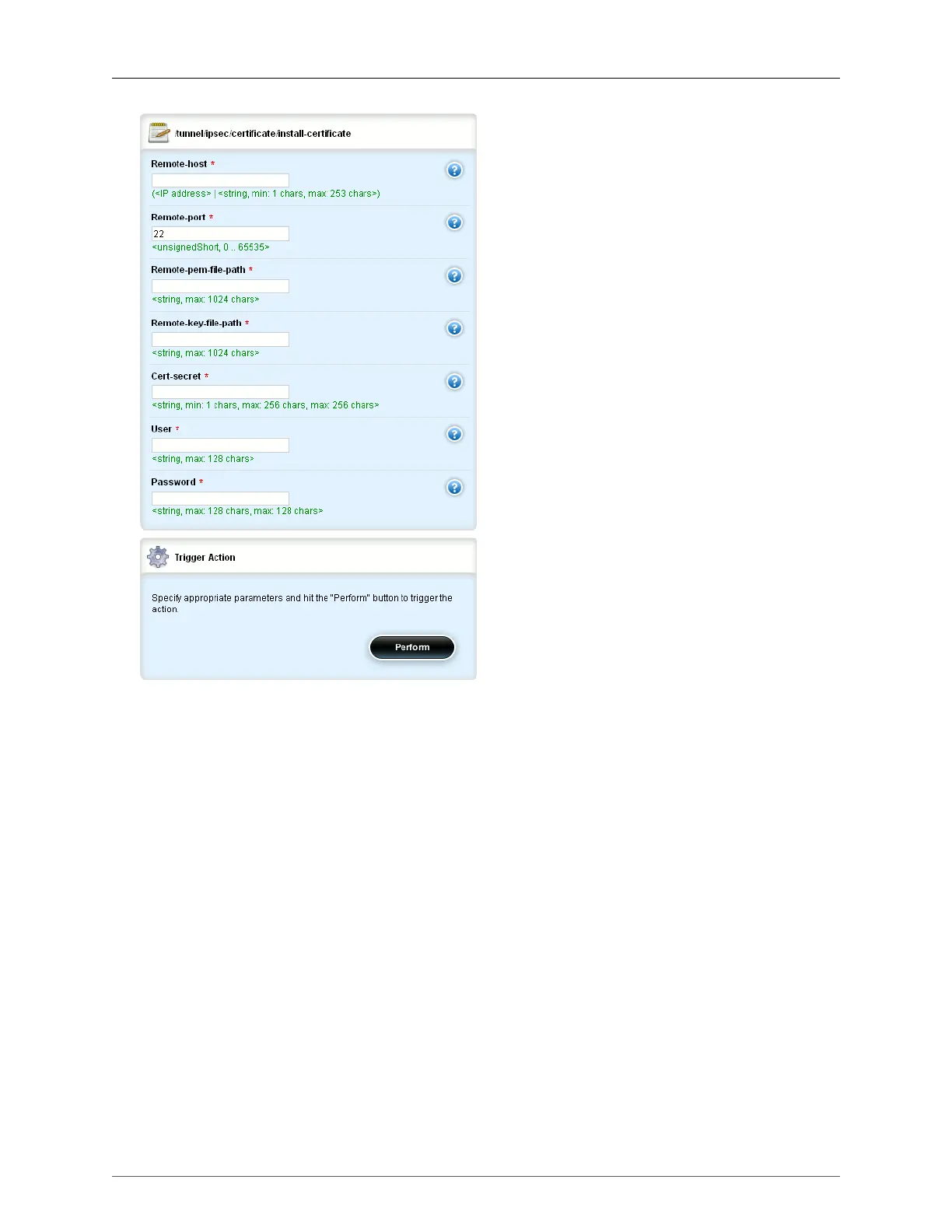

Figure 30.6. Install-Certificate forms

The path to the Install-Certificates forms is tunnel/ipsec/certificate/install-certificate. To install the

certificates, enter the parameters and then click the Perform button.
