12. Chassis Management
ROX™ v2.2 User Guide 130 RuggedBackbone™ RX5000

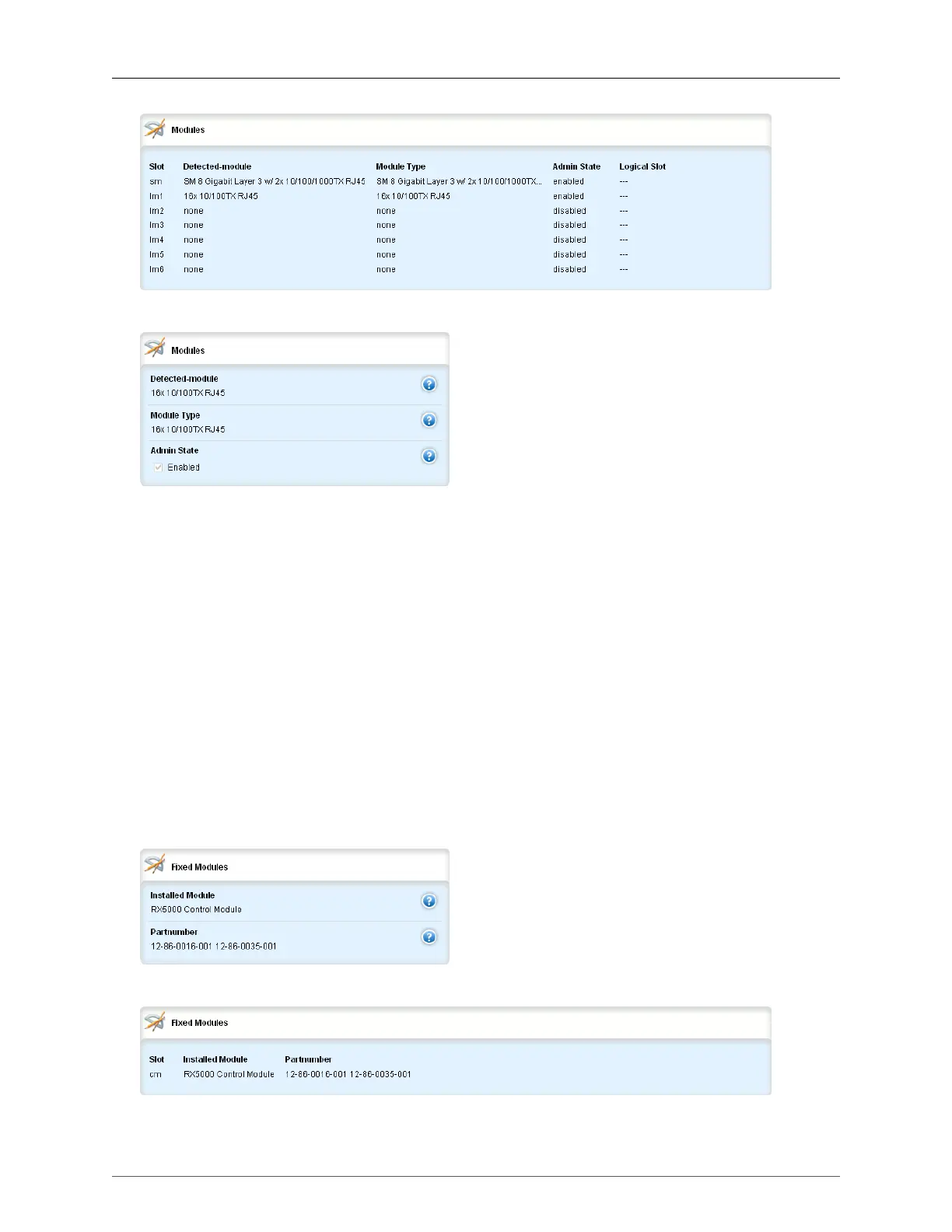

Figure 12.16. Modules table
Figure 12.17. Modules form
The Module Configuration feature provides administrative control of the installed modules. The Modules
table and form provide information about the administrative control of a module in a particular chassis
slot.
slot
Synopsis: string - one of the following keywords { lm6, lm5, lm4, lm3, lm2, lm1, sm }
The slot name, as marked on the silkscreen across the top of the chassis.
detected-module
Synopsis: A string
The installed module's type specifier.
Module Type
Synopsis: A string
Sets the module type to be used in this slot.
Admin State
Sets the administrative state for a module. Enabling the module powers it on.
Figure 12.18. Fixed Modules form
Figure 12.19. Fixed Modules table
