30. Tunnelling

ROX™ v2.2 User Guide 322 RuggedBackbone™ RX5000

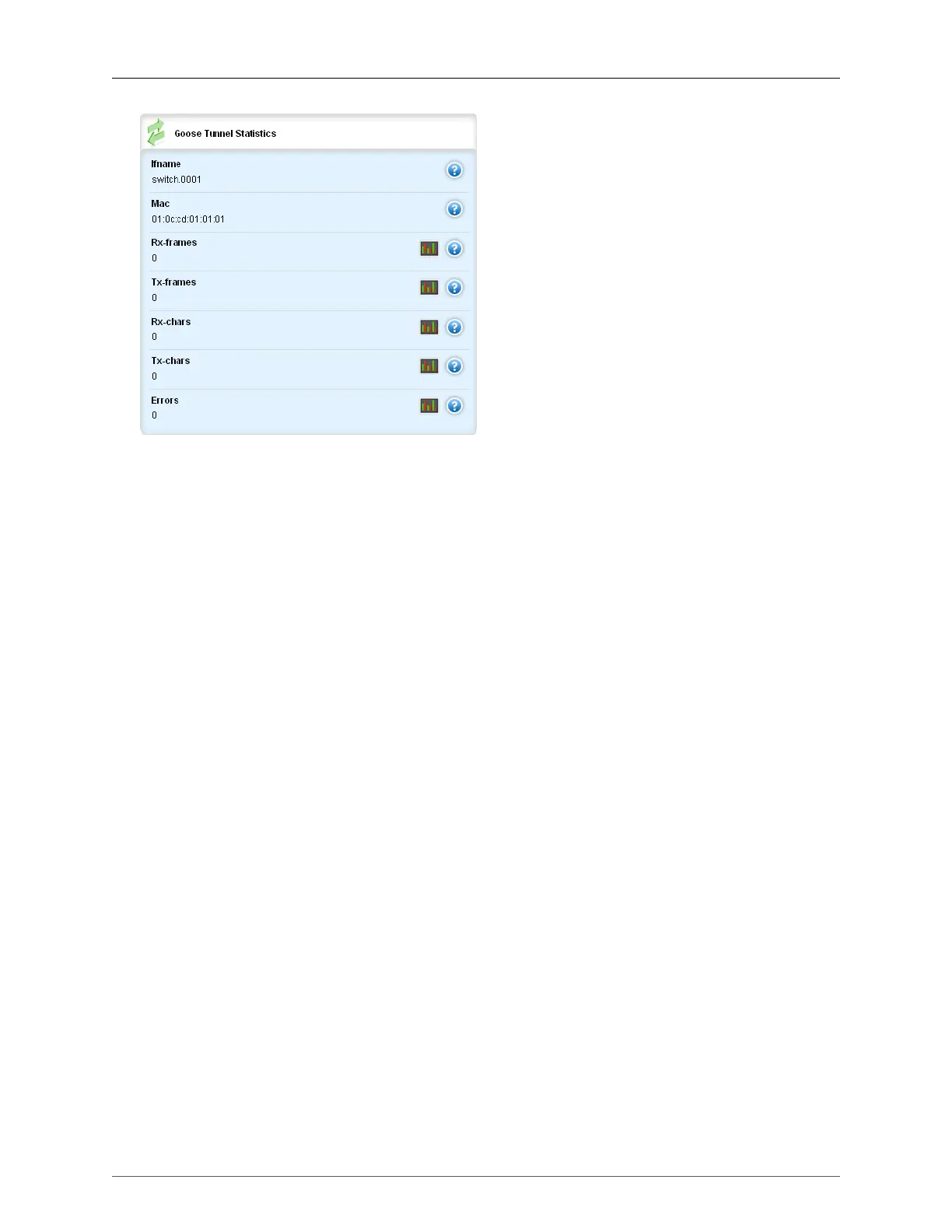

Figure 30.38. Goose Tunnel Statistics form

tunnel-name

Synopsis: A string

Goose Tunnel name

ifname

Synopsis: A string

VLAN Interface name

mac

Synopsis: Multicast Ethernet MAC address in colon-separated hexadecimal notation

Multicast Destination MAC Address of Goose message

rx-frames

Synopsis: unsigned integer

The number of frames received over the tunnel

tx-frames

Synopsis: unsigned integer

The number of frames transmitted over the tunnel

rx-chars

Synopsis: unsigned integer

The number of bytes received over the tunnel

tx-chars

Synopsis: unsigned integer

The number of bytes transmitted over the tunnel

errors

Synopsis: unsigned integer

The number of errors over the tunnel
