20. Link Aggregation

ROX™ v2.2 User Guide 196 RuggedBackbone™ RX5000

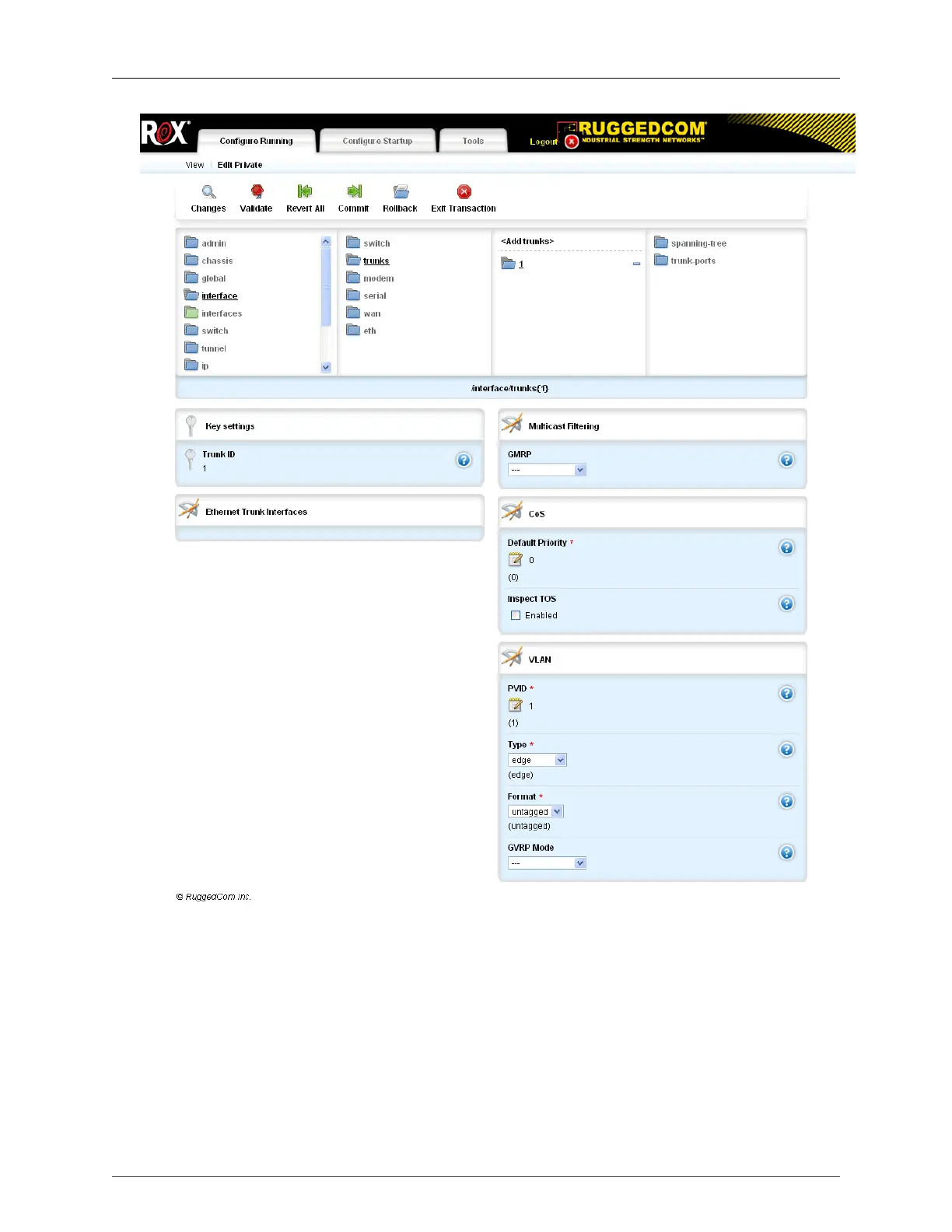

Figure 20.5. Entering Parameters for Forms

Finally, add parameters for the trunk ports. First, click on "trunk-ports" on the menu. Next, click on "Add

trunk-ports" on the menu.
