The LEDs can be disabled, see "Blackout Mode" on page6.
1.3.1 Blinking Intervals

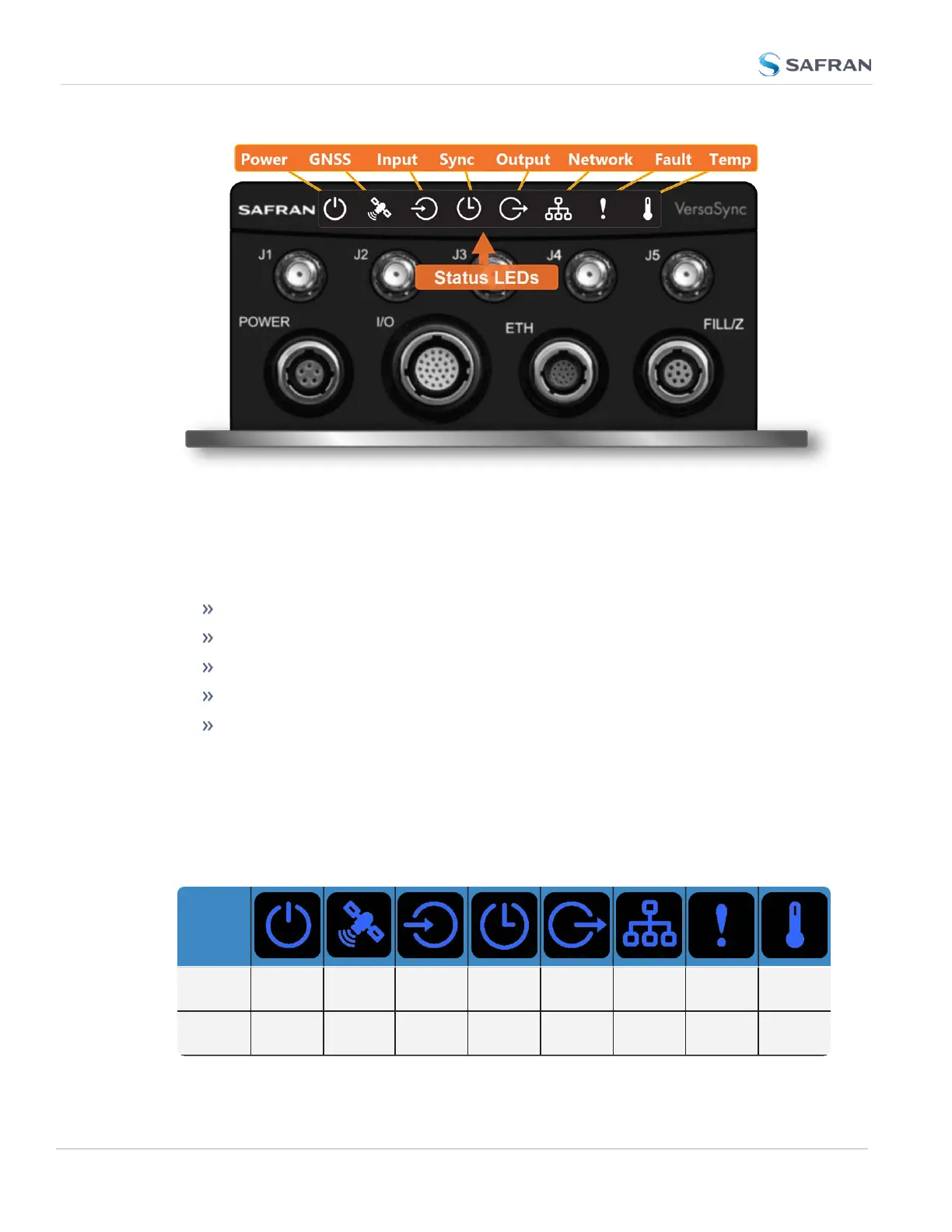

The status LEDs can communicate five different operating states:
"OFF"
"ON"
"FAST": blinking interval @ 8Hz
"SLOW": blinking interval @ 2Hz
"HEARTBEAT": sinus-shaped interval @ 1Hz
1.3.2 LED Lighting Patterns
The table below indicates LED status light patterns for common VersaSync oper-
ating statuses.
Table 1-1:
Common light patterns
Start-up HEART-
B.
OFF OFF OFF OFF OFF OFF OFF
Acquir-
ing fix
ON FAST FAST FAST FAST FAST HEART-
B.
FAST
4
CHAPTER 1 • VersaSync User Manual Rev. 12
1.3 Status LEDs
