Scaled DAC Value: See DAC Step
Oscillator Temperature, which has an effect on oscillator accuracy, and
therefore can be used to interpret oscillator performance.
You can zoom in on any of the graphs by grabbing the handles at either end and
pulling them inwards. The graph will focus in on the time interval you choose in
real time.
Clicking on the Delete icon in the top-right hand corner will erase all current oscil-
lator log data.
Clicking on the Download arrow icon will download the latest oscillator log data
as a .csv file.
3.4.3 Oscillator Logs
To export, or delete the oscillator logs:
1. Navigate to MANAGEMENT > OTHER: Disciplining.

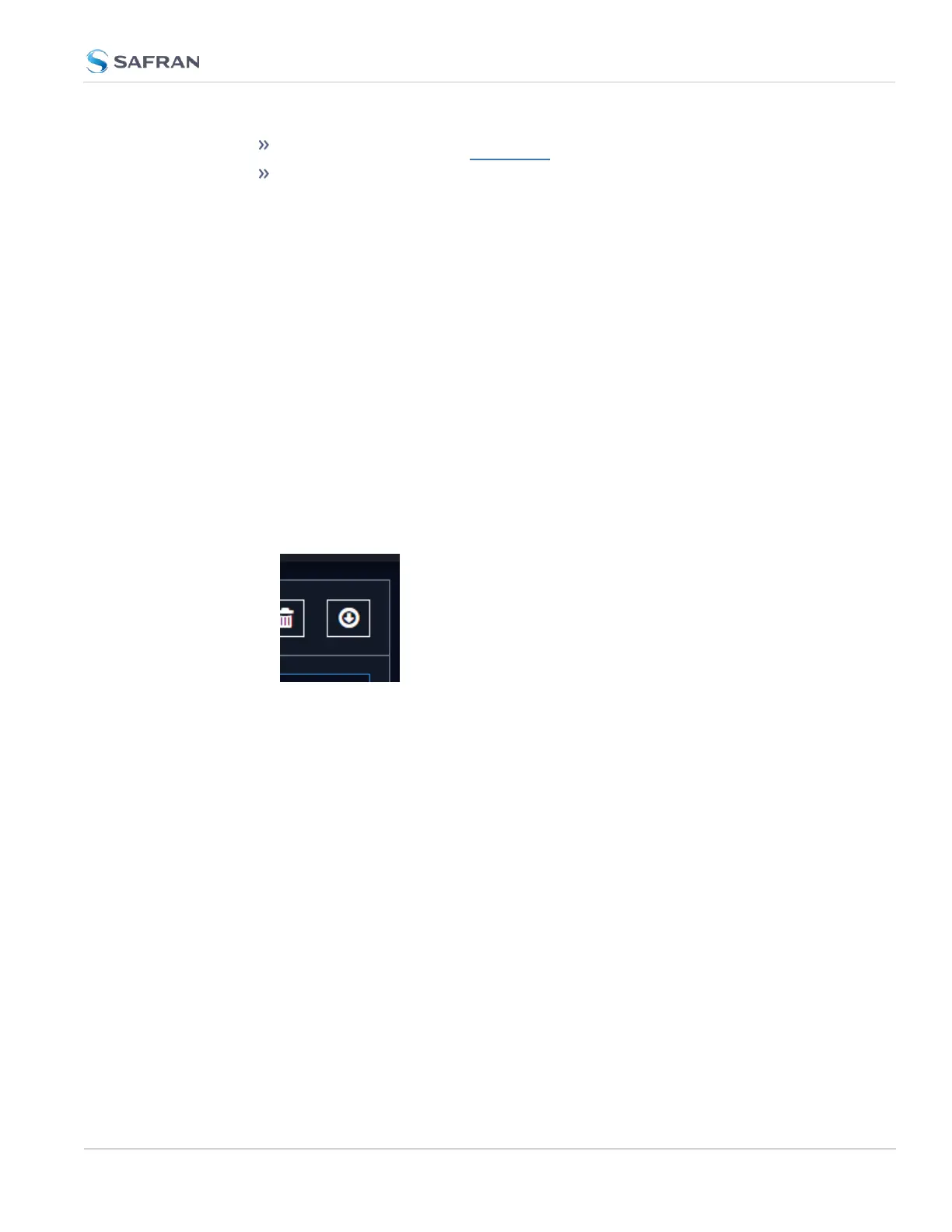

2. To download the log file: In the History panel, click the downwards pointing
ARROW icon. in the top-right corner:
3. The log file will be downloaded onto your local computer. Its name is oscil-
latorStatusLog.csv. Depending on the operating system you can open
the file, or save it locally.
To delete the log file, click the TRASHCAN icon, and confirm.
3.4 Managing the Oscillator
CHAPTER 3 • VersaSync User Manual Rev. 12
229
