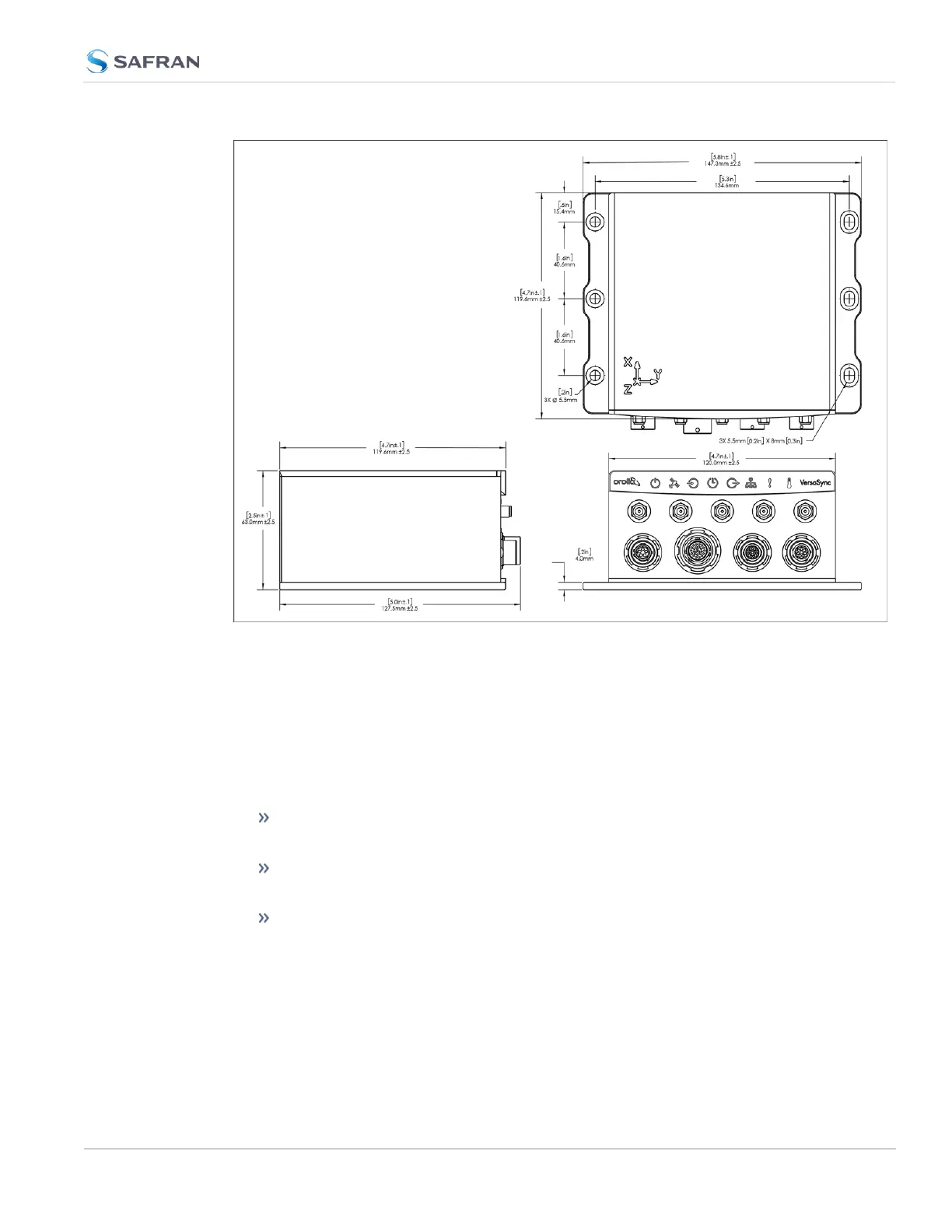

Figure 2-1: Mechanical dimensions
2.2.2.2 Heat Dissipation
The aluminum base plate of the unit acts as a heat drain, conducting heat away
from VersaSync's interior components. When considering a mounting location, it
is crucial that:
the operating temperature of the mounting surface does not exceed
71°C/149°F.
the mounting surface is even and heat conductive. Do not use any insulator
material e.g., rubber gaskets or similar.
the ambient air temperature meets is within the specified range, i.e. -40°C
to +71°C.
2.2.2.3 Fasteners
Orolia recommends to observe the VITA 75 standard regarding mounting the
unit, and fastener selection.
2.2 Installation Overview
CHAPTER 2 • VersaSync User Manual Rev. 12
33
