Safran VersaSync - Input Timing Interfaces

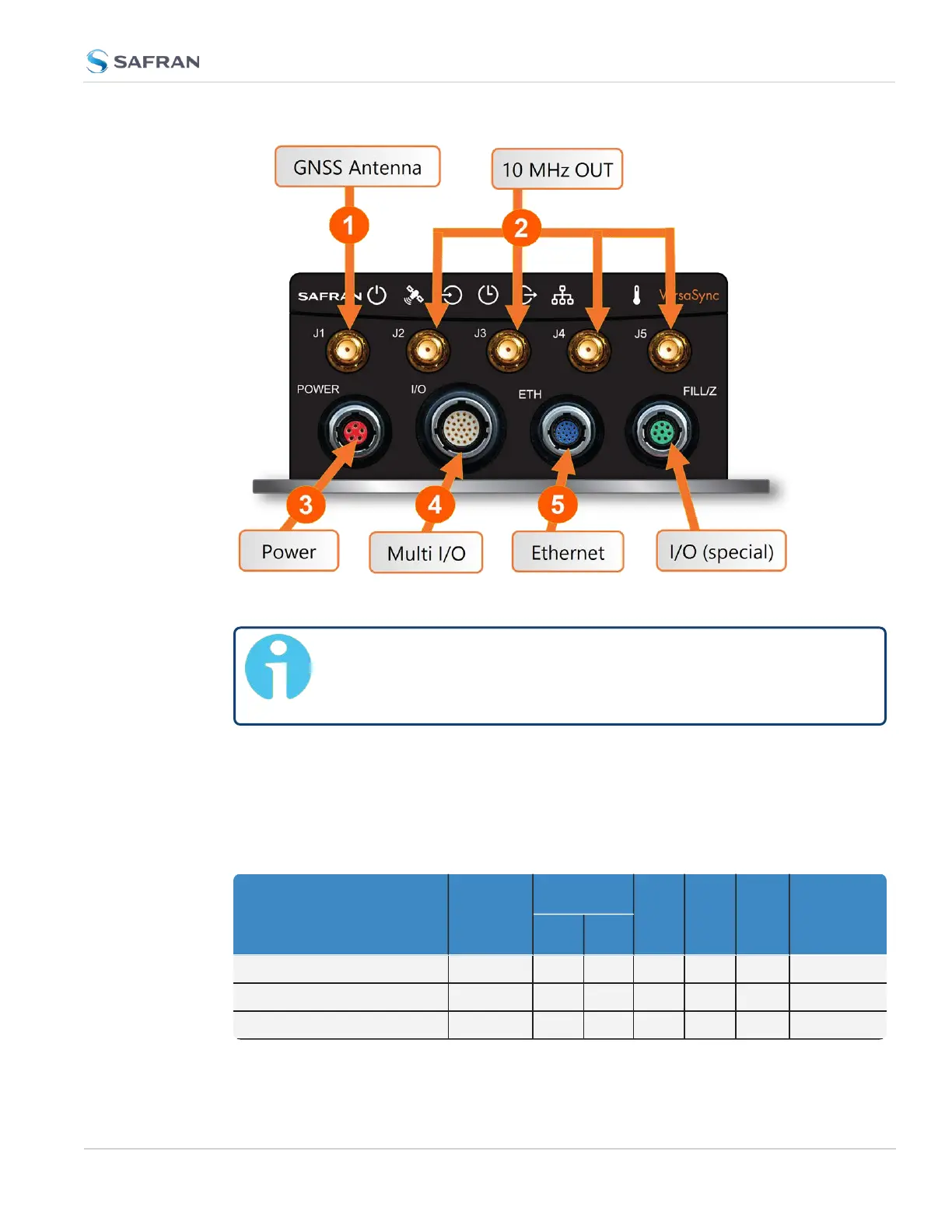

Figure 1-2: VersaSync front panel connectors
Note: VersaSync is highly configurable and the connections can be
adjusted many different ways. Your interface configuration may
vary based on options you selected during the ordering process.
The following interfaces are provided:
1.4.1 Input Timing Interfaces
Table 1-3: VersaSync
inputs (default setup)
INPUTSIGNAL
Total
available
DCLS
RS-
232
RS-
485
ETH
Connector
No.
(see Fig.
above)
TTL 10V
1PPS (1) 1 4
ASCII/HaveQuick/IRIG B (1) 1 4
ASCII/NMEA (1) 1 4
1.4 Interfaces Overview
CHAPTER 1 • VersaSync User Manual Rev. 12
7
