Safran VersaSync - Configuring a 1 PPS Output

Offset: [-500000000 to 500000000 ns = ±0.5 s] Allows to offset
the system's 1PPS on-time point, e.g. to compensate for cable delays
and other latencies
4. Click Submit.
2.7.4.2 Configuring a 1PPS Output
To configure a 1PPS output:
1. Navigate to INTERFACES: OUTPUTS, or to INTERFACES: OPTION CARDS
(white on orange).
2. In the panel on the right, click the GEAR button next to the 1PPS Output you
want to edit.

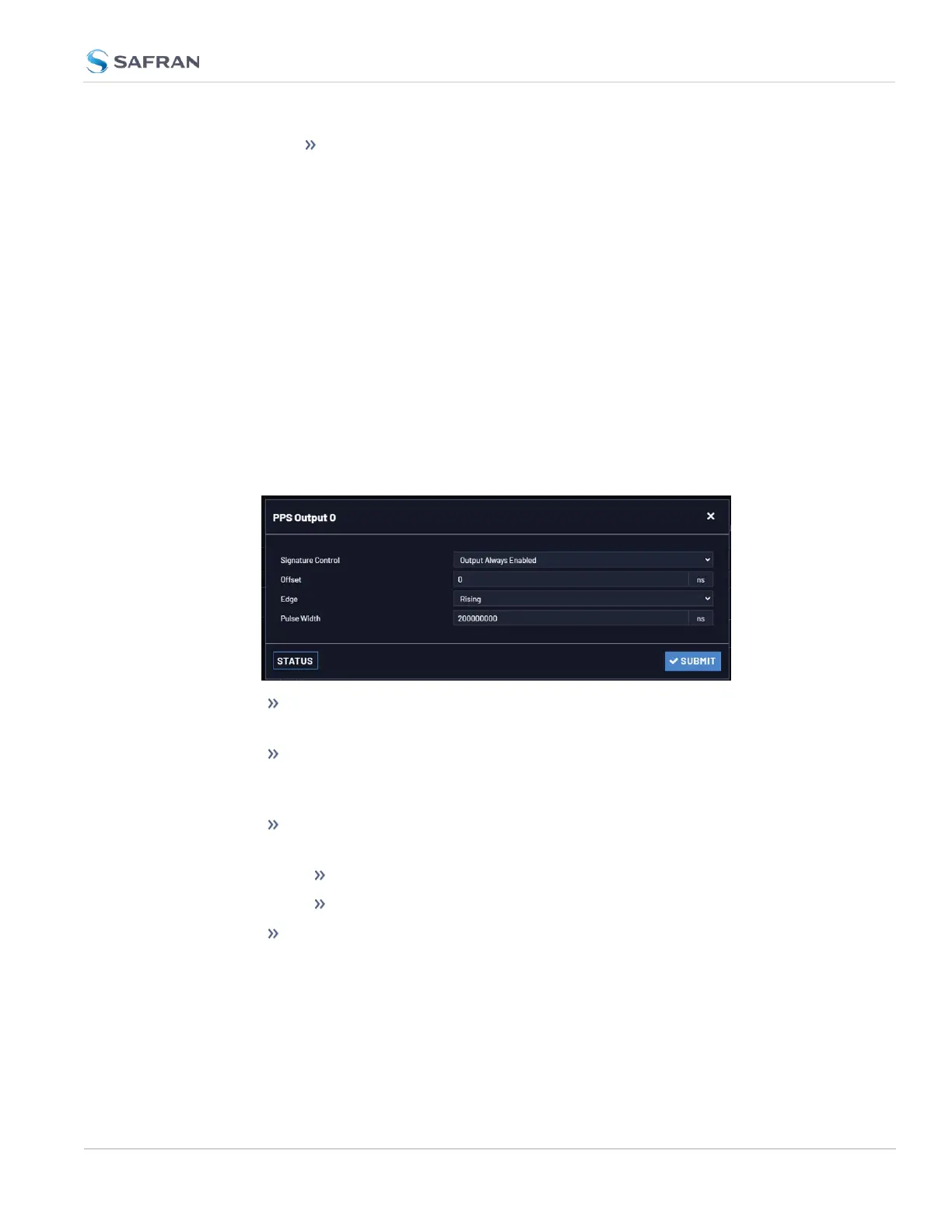

3. The 1PPS Output Edit window will display, allowing the following items to be
configured:
Signature Control: Determines when the output is enabled. For more
information, see "Signature Control" on page69.
Offset [ns]: Allows to offset the system's 1PPS on-time point, e.g. to com-
pensate for cable delays and other latencies [range = –500000000 to
500000000ns = ±0.5 s]
Edge: Used to determine if the on-time point of the 1PPS output is the
rising or the falling edge of the signal.
Rising
Falling
Pulse Width [ns]: Configures the Pulse Width of the 1PPS output.
[range = 20 to 900000000 ns = 0.0μs to 0.9 s]
[default = 200 ms]
4. Click Submit.
