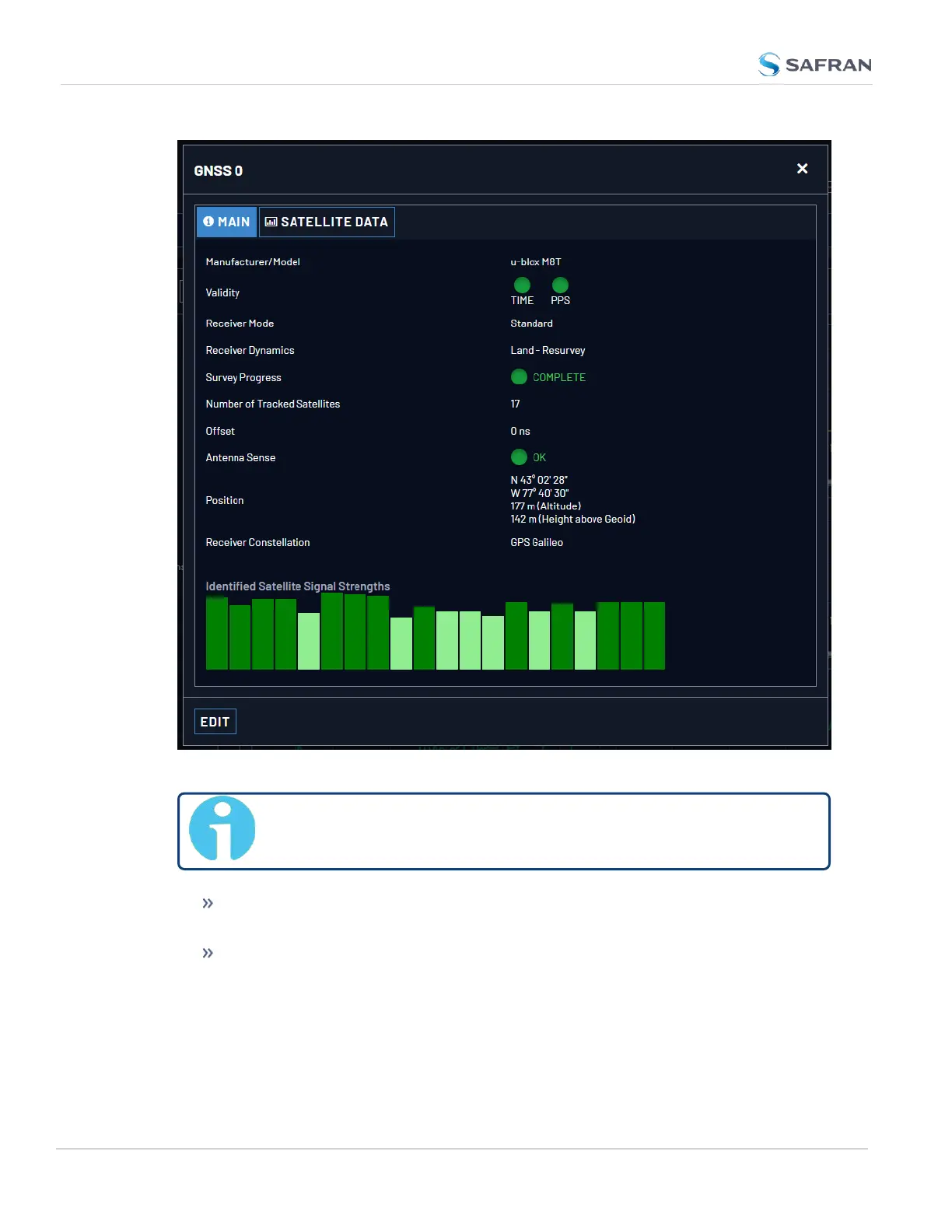

Under the Main tab, the following information will display:
Note: Detailed information on the different parameters can be found
in the subsequent GNSS topics.
Manufacturer/Model: The manufacturer and/or model of the GNSS receiver
in your VersaSync unit.
Validity: Status indicator lights for TIME and 1PPS signals: “On” (green)
indicates a valid signal, “Off” (red) indicates that no valid signal is available.
A yellow 1PPS light indicates that the monitored 1PPS value fell below a
quality threshold and the unit is in flywheel mode.
196
CHAPTER 3 • VersaSync User Manual Rev. 12
3.3 Managing References
