Event Active Edge: Selects the signal edge used for triggering events,
either rising or falling.
4. Click Submit.
5. Configure the output settings. Navigate to INTERFACES > OUTPUTS:
Event Broadcast 0, or to INTERFACES > OPTIONCARDS: Event Broadcast
0. The status window will display, providing information on the current set-
tings.

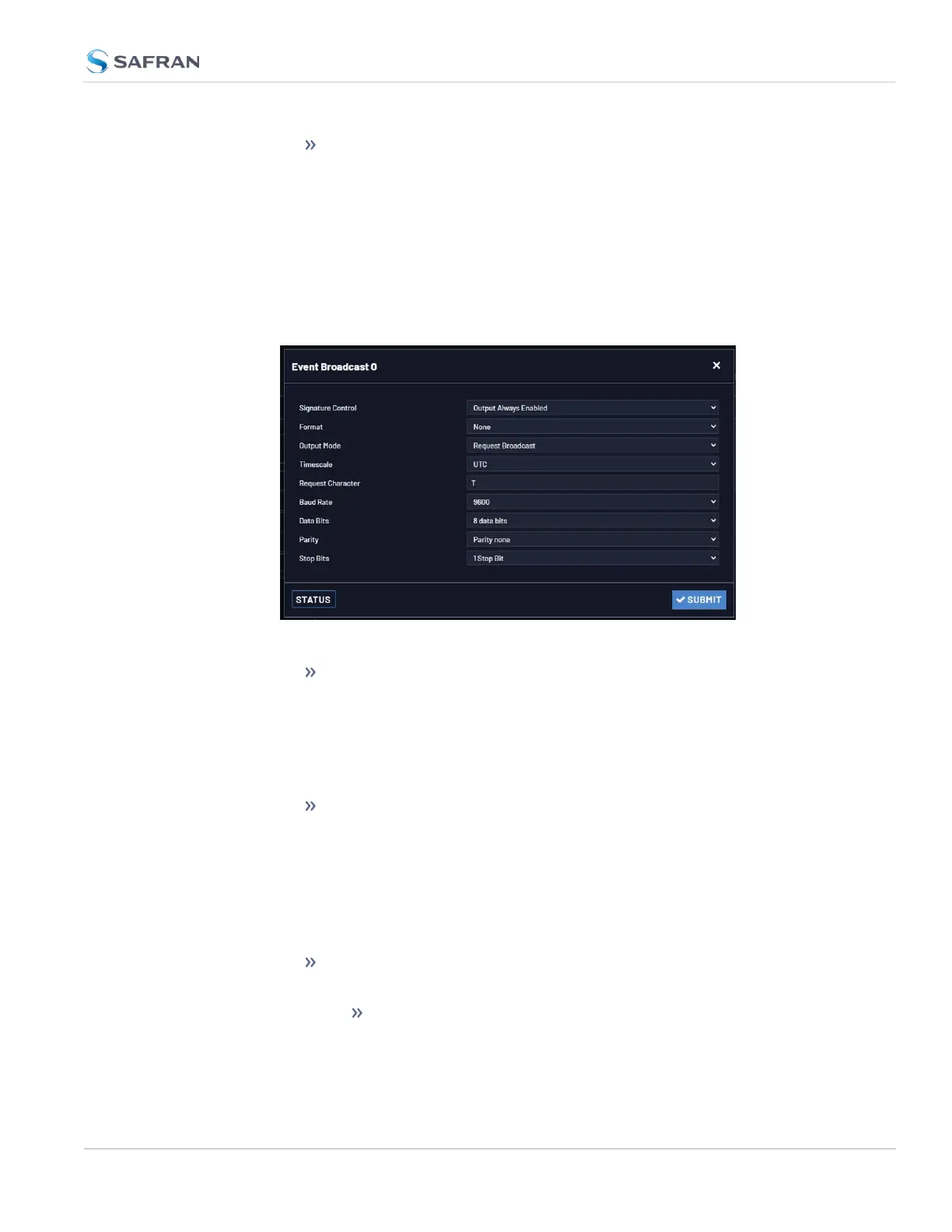

6. Click the Edit button to open the configuration window:
The Edit window allows the configuration of the following settings:
Signature Control: Signature Control controls when messages will be
broadcast in response to events on the Event Input (J2) port when
events are enabled and the card is in “broadcast” mode. (Events are
still queued even if they are not broadcast, and are transmitted once
the signature control conditions permit.) For more information on Sig-
nature Control, see "Signature Control" on page69.
Format: Selects the format of the message to be outputted. Refer to
"Event Broadcast Time Code Formats" on page370 for a description
of all of the available formats.
Event Broadcast only supports two formats (Event Broadcast Format
0 and Event Broadcast Format 1), and only supports the output of
one message per event. If format is set to “None”, no messages will be
queued in the Message Buffer.
Output Mode: This field determines when the output data will be
provided. Available Mode selections are as follows:
Broadcast—Event Messages are automatically broadcast when
they are created by an event. If a new event happens while an
