4.6 Traveler Spray Arms
Washer/disinfector includes two horizontally-mounted traveler spray arms, one on each side of the chamber, to
optimize load and chamber coverage, as well as cycle time. Each traveler includes jets that are oriented upward,
downward or horizontally to provide full coverage of all the items on the rack.

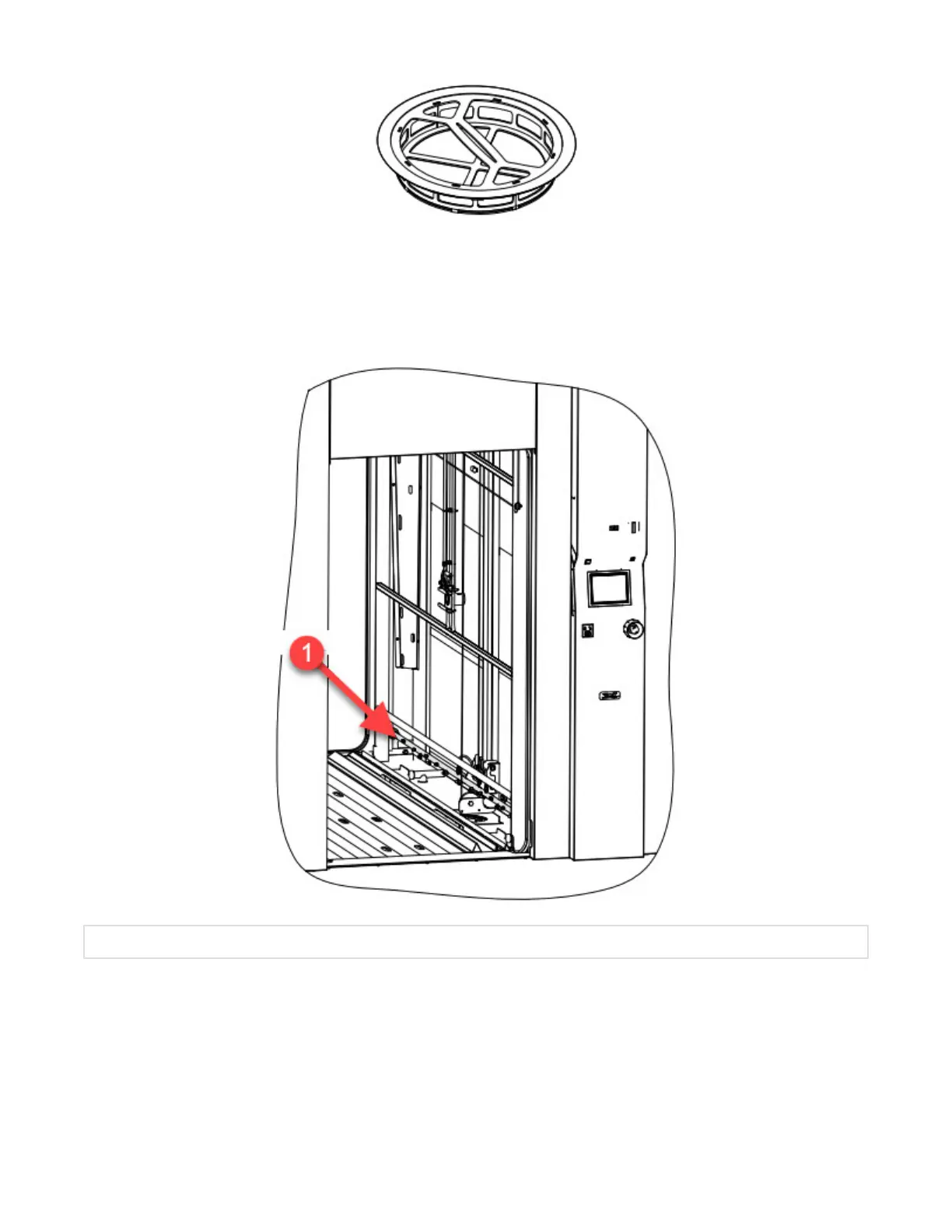

1. Traveler Spray Arm
.
4.7 Guiding Rails
A guiding rail is installed on service side of wash chamber to help guide surgical case cart into chamber.
A second guiding rail is also installed on service side of wash chamber. This guiding rail helps guide Instrument Washing
Rack (option) into chamber and easy connection to the manifold.
