4 — Component Identification
30
920515770_J
Vision® 1300 Series
Operator Manual

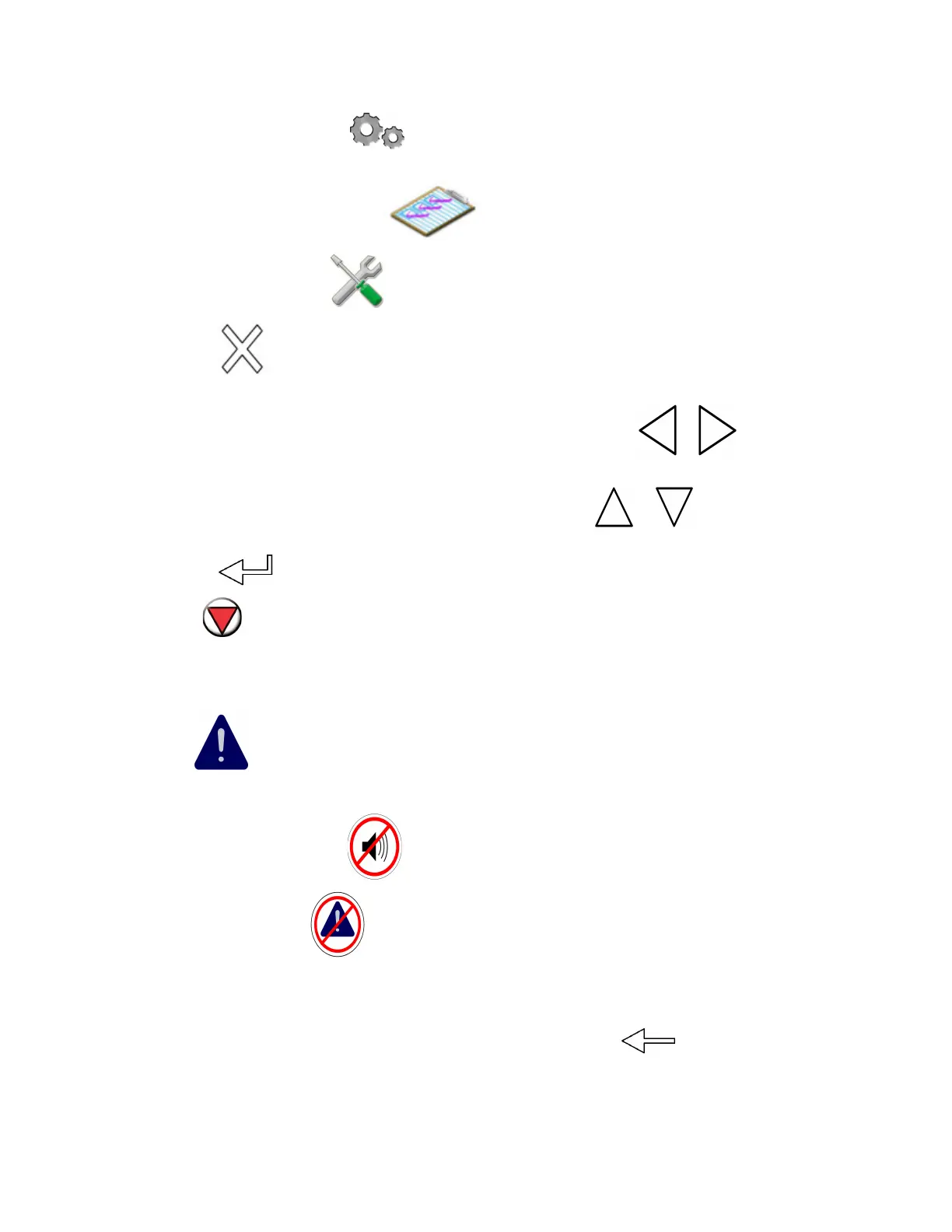

4.28 Touch Pads - Navigation and Function
MACHINE SETUP: Press Machine Setup on Ready screen to access other Ready screen allowing access to
Supervisor mode or Service mode.
SUPERVISOR MODE: Press Supervisor mode
on Ready screen to access Supervisor mode login screen.
SERVICE MODE: Press Service mode
on Ready screen to access Service mode login screen.
CLOSE: Press Close
on touch screen to exit a screen and return to previous screen. When Enter is not present
on touch screen, press Close to save a selection and return to previous screen.
LEFT OR RIGHT ARROW: For forward and back navigation. Press Left or Right arrow
or on touch screen to
scroll across a screen to view all menus and/or possible selections available.
UP OR DOWN ARROW: For up and down navigation. Press Up or Down arrow
or to scroll through all the
items on the screen.
ENTER: Press Enter
on touch screen to confirm a selection and/or an entry.
STOP: Press Stop
on touch screen to interrupt cycle.
4.29 Touch Pads - Alarm Acknowledge
WARNING: During a cycle, symbol appears on touch screen to indicate a warning message was generated. Press
Warning symbol
on touch screen to view a list of warning messages generated during cycle.
Symbol is also displayed on Alarm screen, along with alarm message.
SILENCE BUZZER: Press Silence buzzer
on touch screen to stop alarm buzzer.
ALARM REPLY: Press Alarm reply
on touch screen to stop alarm buzzer and acknowledge the displayed alarm
message.
4.30 Touch Pads - Data Entry and Access
BACKSPACE: Used on Keyboard and Numeric Keyboard screens. Press Backspace on touch screen to move
one position backwards and delete the preceding space or character.
