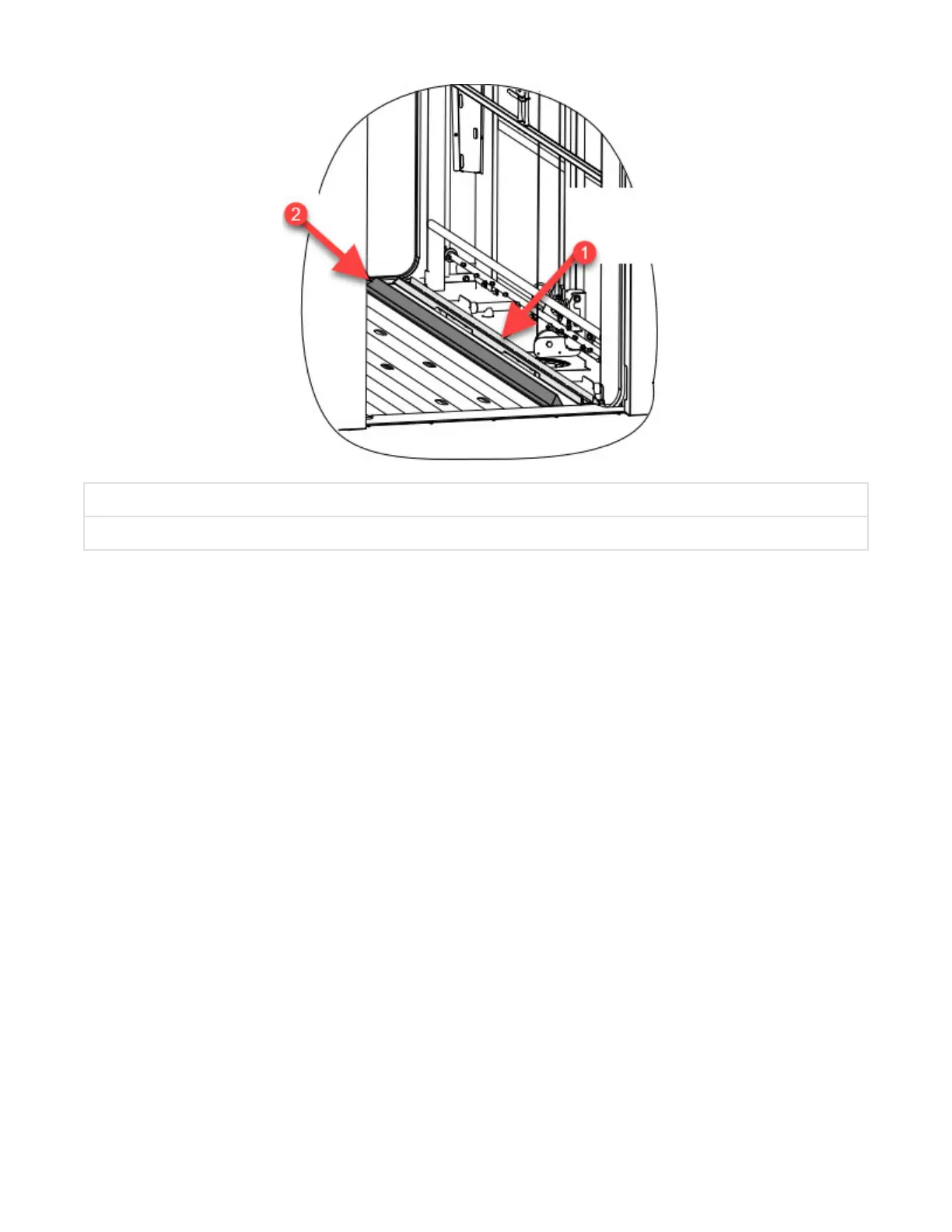

1. Guiding Rail For Instrument Washing Manifolded Rack
2. Guiding Rail
.
4.8 Chamber Floor — Tilting
Drying phase is enhanced with an automatic floor tilting system available for the CART STD, CART LOW ECO, QUICK and
customizable cycles. The automatic floor tilting system helps accelerate drying and prevents water from accumulating
and leaving spots on flat surfaces of surgical case carts.
The automatic floor tilting system slopes processed load at the beginning of the Drying phase and floor is automatically
returned to its level position at the end of the cycle to allow smooth loading and unloading.
4.9 Mechanical Cores
The two mechanical cores hold piping, ductwork, electrical wiring and electrical box (also containing the computer and
inputs/outputs module), air heat exchanger, water heat exchanger, chemical dispensing devices, reservoirs, etc.
Connections are made on top of washer/disinfector.
