STONEX R2
127

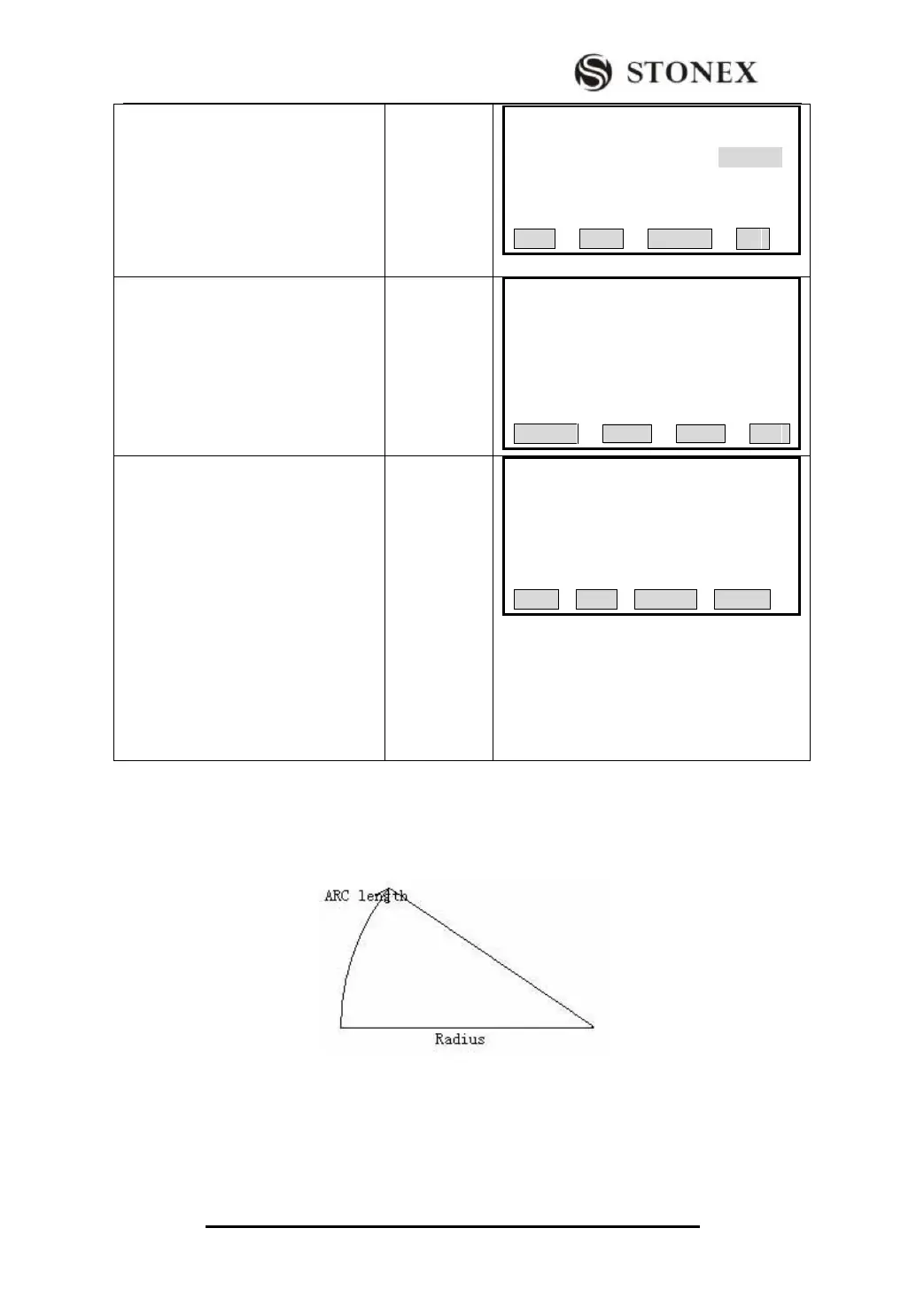

② After inputting AZ angle, press
[ENT] to go to next input item. After
inputting the length of the line, press
[ENT].
Input AZ
+
[ENT],
Input length
+
[ENT]]
【Define HZ AL 】 2/1
Type: LINE
AZ： ---°---′---″
Length： ---.--- m
PREV NEXT SEARCH ↓
③ Press [F2] (NEXT), the program
displays “Save Edit Alignment?” If
yes, press [F4](OK). To re-edit it, press
[F1] (CANCEL).
[F2]
【Define HZ AL】
Save Edit Alignment?
CANCEL OK
④Press [F4] to store this alignment
and return to alignment main menu,
and displays chainage of the line, end
point and azimuth of this point.
²Now, user can define other curves.
²When the line is in the middle of
road, the azimuth angle of the line is
calculated according to the previous
elements. If user is to change this
azimuth angle, the new azimuth angle
can be input manually.
【HZ Alignment Type】
Chain ： 131.000 m
AZ： 25°00′00″
LINE ARC SPIRAL POINT
Curve
Press [ARC] in “Hz Alignment type” menu to define the curve. A curve consists of arc
length and radius. The rule of radius value: along the forward direction of the curve.
When the curve turns right, the radius value is positive; while the curve turns to left, the
radius value is minus. The arc length can not be negative.
